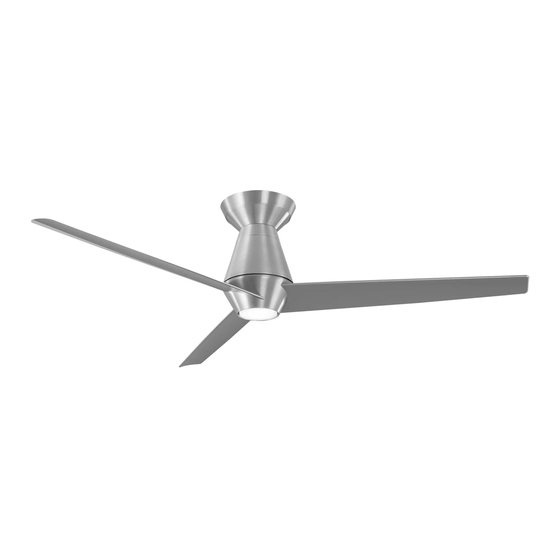

Slim Flush
Installation Instructions
works with the
Google Assistant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Slim Flush FH-W2003 and is the answer not in the manual?

Questions and answers

Related Manuals for Modern Forms Slim Flush FH-W2003

Summary of Contents for Modern Forms Slim Flush FH-W2003

  • Page 1 Slim Flush Installation Instructions works with the Google Assistant...
  • Page 2 Please read and save these instructions before installation DO NOT RETURN TO STORE F H - W 2 0 0 3 Slim Instructions...
  • Page 3 General Inquiries For all questions about your ceiling fan please read all included instructions, installation procedures, troubleshooting guidelines and warranty information before starting installation. For missing parts or general inquiries call our trained technical staff at: 1-866-810-6615 option 0 MON-FRI 8AM-8PM EST Email: customerservice@modernforms.com Or live chat at modernforms.com...
  • Page 4 Safety Rules For operation, maintenance, and troubleshooting information, visit http:/ /modernforms.com/fan-support/ To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker before beginning. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70”...
  • Page 5 Modern Forms. Substitution of parts or accessories not designated for use with this product by Modern Forms could result in personal injury or property damage and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.
  • Page 6 Get Smart... works with the Integrates Google Assistant seamlessly with: devices you already own Wet Location-listed to the strictest UL/cUL safety regulations. Finished and rated for interior and exterior use Premium smart Wi-Fi and Bluetooth enabled features: for flexible control complement high quality materials Quiet, reliable, and up to 70% more efficient than AC fans...

  • Page 7: Table Of Contents

    Contents 1. Mounting Options 2. Installing the Mounting Bracket 3. Attaching the Fan Blade 4. Adding the Decorative Trim Ring 5. Hanging the Fan 6. Making the Electrical Connections 7. Installing the Optional Wall Control 8. Finishing the Installation 9. Installing Adapter Plate 10.
  • Page 8 Package Contents Luminaire Module Fan Blade F3IN-120V-R1-30 RPL-F2003-***-BD-** 8. PC Shade 2. Mounting Bracket RPL-F2003-GLA RPL-F2003-HGR-** 9. Luminaire Cover 3. Adapter Plate RPL-F2003-COVER-** 4. Motor Housing 10. Receiver 5. Motor Assembly F-R3-2003-052 6. Decorative Trim Ring 11. Remote Control RPL-F2003-TRIM-** F-RCBT-WT ** denotes finish code of fan *** denotes blade sweep of fan...
  • Page 9 Hanging Weight: 17 lbs IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place. FH-W 2 0 0 3 Slim Instructions 9...

  • Page 10: Mounting Options

    1. Mounting Options CAUTION: To prevent electrical shock, ensure electricity has been turned off at the circuit breaker before beginning. If there isn’t an existing UL/cUL listed outlet box, please refer to the following instructions. Secure the outlet box directly to the building structure.
  • Page 11 Support Brace 2. Outlet Box 3. Joist FH-W 2 0 0 3 Slim Instructions 11...

  • Page 12: Installing The Mounting Bracket

    2. Installing the Mounting Bracket Remember to disconnect the power at the circuit breaker. (Fig. 2) Illustrates how to mount the mounting bracket. 2. Remove 1 set screw from mounting bracket and set aside for use in Finishing the Installation. 3.
  • Page 13 FH-W 2 0 0 3 Slim Instructions 13...

  • Page 14: Hanging The Fan

    5. Hanging the Fan Remove 2 opposing screws and loosen the others. 2. Pass supply wires through mounting plate. 3. Lift motor assemby and hang it on the hook on the mounting plate using one of the screw holes (Fig.5). 4.
  • Page 15 FH-W 2 0 0 3 Slim Instructions 15...

  • Page 16: Making The Electrical Connections

    6. Making the Electrical Connections WARNING: Installation of this fan requires that a three-conductor cable (including ground wire) which should run between ceiling and wall outlet box. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts, except for the ground wire.
  • Page 17 Mounting Bracket 2. Receiver Outlet GREEN(Ground) Black(Hot) can be RED from Switch leg WHITE(Neutral) WHITE(Line in N) GREEN(GND Must Use) Black(Line in H) Receiver GREY(to Motor) BLUE (to Light) WHITE(to Light) YELLOW(to Motor) GREEN(Hanger Assembly Ground) RED(to Motor) RED(to Motor) WHITE(Neutral) BLACK (for Light) YELLOW(to Motor)

  • Page 18: Installing The Optional Wall Control

    7. Installing the Optional Wall Control NOTE: Wall Control not included. A bluetooth wall control accessory can be purchased separately. Connect the green wire marked “GROUND” from the wall control to the copper wire from the wall outlet box that feeds back to the circuit breaker –...
  • Page 19 Wall Outlet 2. Wall Control 3. Wall Mounting Plate 4. Mounting Plate Screws 5. Wall Plate Multi-location wiring Individually pair each of the wall controls with the fan receiver using the pairing instruction. See page 22. If Applicable Wallcontroller 1 Wallcontroller 2 Wallcontroller 3 Wall Control 3...

  • Page 20: Finishing The Installation

    8. Finishing the Installation Secure wire connectors with supplied wire ties (Fig. 8). 2. Install motor housing to mounting plate with the 2 removed screws and tighten the others. 3. Install the trim ring as shown (Fig. 8A). 9. Installing Adapter Plate Remove 1 of 3 screws and loosen the others (do not remove).
  • Page 21 FH-W 2 0 0 3 Slim Instructions 21...

  • Page 22: Installing The Luminaire Module

    10. Installing the Luminaire Module NOTE: If you are not installing the luminaire module skip to step 5. Attach LED wires from motor assembly to luminaire module (Fig. 10A) 2. Install glass shade without over-tightening (Fig. 10A). 3. Secure the luminaire module with the 3 screws to the adapter plate (Fig.
  • Page 23 FH- W20 03 Slim Instructions 23...

  • Page 24: Controlling The Fan

    11. Controlling the Fan Your fan was delivered to you with the included control already paired to your fan. A: Light On/Off, Bright/Dim B: Fan On/Off, Speed Up/Down C: Season (Summer/Winter) Air-Gap Switch: Pull tab to power off in case of emergency. Not necessary for normal fan operation (only included with wall control).
  • Page 25 Air-Gap Switch* Summer Mode Winter Mode Wall Control Remote (Counter-Clockwise) (Clockwise) Control * Air-Gap Switch only included with wall control Fan On/Off Light On/Off Fan Direction Press and hold Press and hold Press and hold button for 4 seconds. button for 4 seconds. button for 4 seconds.

  • Page 26: Reset

    In addition to the included remote control, you can control your fan with a wall control (sold separately) or through the Modern Forms app. To use the Modern Forms app, download it for free from the App Store or Google Play.
  • Page 27 Pairing Unpairing Fan Wi-Fi Reset Press and hold the for 10 seconds until Press and hold buttons To purge, press and hold LED blinks green and receiver emits 2 long beeps buttons for 4 seconds. for 10-15 seconds. Air-Gap Switch* Factory Reset Receiver Factory Reset Wall Control...

  • Page 28: Accessories

    15. Accessories personalize your experience Bluetooth Wall Control Dims light to 1% | ON/OFF 6 fan speeds | Sold separately F-WCBT-WT White Bluetooth Remote Control Dims light to 1% | ON/OFF 6 fan speeds F-RCBT-WT White F H - W 2 0 0 3 Slim Instructions...

  • Page 29: Troubleshooting

    16. Troubleshooting My Fan Will Not Start Check main and branch circuit fuses or circuit breakers. 2. Check line wire connections to fan and switch wire connections in the switch housings. CAUTION: Make sure the main power is turned off! My Fan is Noisy Allow for 24-hour break-in period.
  • Page 30 16. Troubleshooting cont. My remote or wall control is not controlling my fan Verify that the fan is receiving power by power cycling the fan. To do this: Cut power to the fan via standard On/Off wall switch, or the breaker if standard wall switch is not applicable.
  • Page 31 10 seconds and back on. Alternately, you can use the circuit breaker the fan is connected to by toggling it off for 10 seconds and back on. If your fan is wired through a Modern Forms wall control (P/N: F-WCBT-WT) pull the Air-Gap Switch on your wall control, wait 10 seconds, and re-insert.
  • Page 32 Notice of a defect in writing must be received by Modern Forms within five (5) years from the date of purchase (or according period of time as outlined by material). Excluded from warranty are any 3rd party component which carries its own manufacturer’s warranty.
  • Page 33 La notificación de un defecto por escrito debe ser recibida por Modern Forms dentro de los cinco (5) años a partir de la fecha de compra (o según el período de tiempo indicado en el material). Quedan excluidos de la garantía todos los componentes de terceros que tengan la garantía de su propio fabricante.
  • Page 34 F H - W 2 003 modernforms.com...
