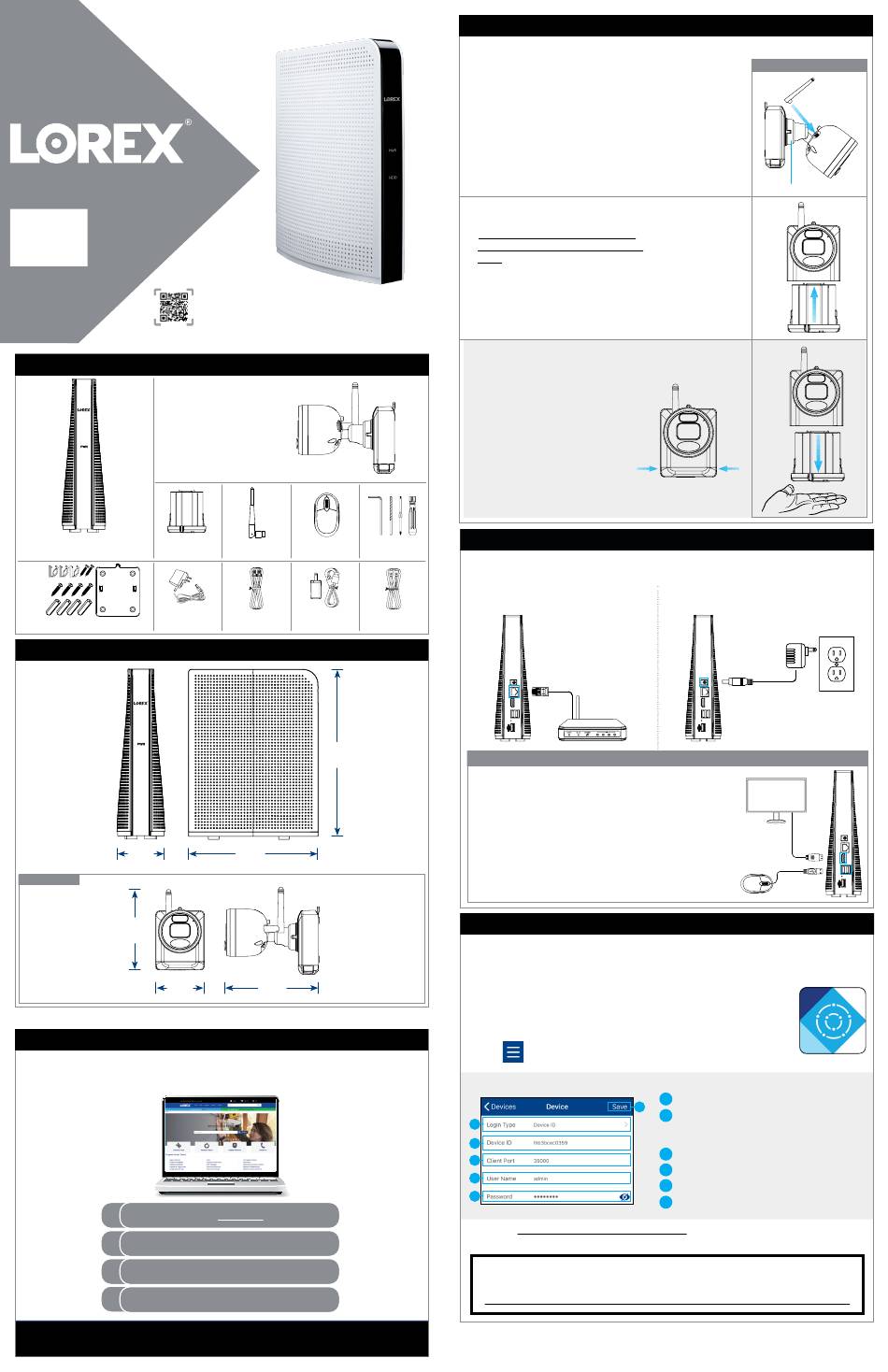

Lorex L222A8 Series Quick Connection Manual

HD Wire-Free Security System
1 / 2
L222A8 Series
English Version 1.0
Scan for
Lorex Cirrus APP
Package Contents
HD Wire-Free Security Camera
HDD
HD Recorder Rechargeable
(Model Number: L222A8 Series) Power Pack*
Recorder Power
Adapter
Camera Mounting Kit*
Dimensions
HDD
2.5"
64mm
U222A Series
4.7"
121mm
2.9"
73mm
Need Help?
Visit us online for up-to-date software and complete instruction manuals
1
Search for the model number
2
Click on your product in the
3
4
Click on the Downloads tab
Copyright © 2020 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications
and prices, without notice and without incurring any obligation. E&OE. All rights reserved.
Quick Connection Guide
lorex.com
* Per camera in multi-camera packs
(Model Number: U222A Series)
Camera Antenna* USB Mouse
Power Pack
Ethernet Cable
Adapter
8.6"
219mm
6.6"
169mm
5.2"
131mm
Visit lorex.com
of your product
search results

STEP 1: Initial Setup

Before you begin, you will need to prepare the wire-free cameras and Power Packs.
NOTE: Power Packs come fully charged.
To prepare the cameras:
1. Twist the adjustment ring near the
camera base counterclockwise to
loosen and reposition each camera as
shown to the right. Connect one of the
white antennas to each camera.
2. Peel off the PLEASE REMOVE label
covering the contacts on each Power
Pack. Insert the charged Power Packs
into each camera base. Push up until
the Power Pack 'clicks' firmly into place.
NOTE: The camera will 'beep' when the
Power Pack is properly inserted. If you
do not hear this alert, remove the Power
Pack by pushing on the release tabs*
then re-insert.

STEP 2: Setting Up the Recorder

Toolkit
Next, you must set up the recorder and connect it to your network.
To set up the recorder:
1. Connect the recorder to your router
using the included Ethernet cable.
HDMI Cable
• This guide describes basic setup of the recorder only.
This installation is intended for users who wish to monitor
their system using the free Lorex Cirrus app on their
smartphone or tablet.
• You may choose to use the recorder interface to control
your wire-free security system. Connect the included USB
mouse to one of the USB ports labelled Mouse / Backup,
and connect a monitor using the included HDMI cable.
See the included Quick Reference Guide for details.

STEP 3: Connecting with Lorex Cirrus

Connect to your system using the free Lorex Cirrus app for smartphones and tablets
(iOS and Android).
To connect with Lorex Cirrus:
1. Download and install the free Lorex Cirrus app from the App Store
or Google Play Store (Or scan QR code on the front page).
2. Tap the Lorex Cirrus icon to launch the app.
3. Tap to open the menu. Tap Devices, then tap Add.
4. Enter the following:
A
B
C
D
E
5. Enter a new, secure 8-15 character password. This password will be used to connect
to your system from now on.
Record your password below and store in a secure place:
L222A8_QCG_EN_R1
* *
2. Connect the included power adapter to
the recorder.
OPTIONAL: Full Recorder Setup
A Ensure Device ID is selected.
F
Tap to scan the QR code on the back of
B
your recorder using the camera on your
mobile device.
C Ensure the Client Port reads 35000.
Enter the username (default: admin).
D
Enter the password (temporary: 00000000).
E
F Tap Save.
U222A Series
Adjustment ring
