Quick Installation Guide

LEDs

The APC has 6 green LEDs located on the side panel: Power, LAN and 4 RSSI LEDs
(refer at the Figure 2 – Overview for details). The various states of the LEDs indicate
different connection operations as follows:
LED
Power
LAN
RSSI (1, 2, 3, 4)

Antenna Polarization

Antenna polarization is a very important consideration when installing an antenna. The
APC Propeller 2 and APC Propeller 5 are integrated with a built in antenna, therefore
the polarizations depends on the mounting position of the device (item 1 in the Figure 1
– Package Contents) on the insert bracket (item 2 in the Figure 1 – Package Contents).

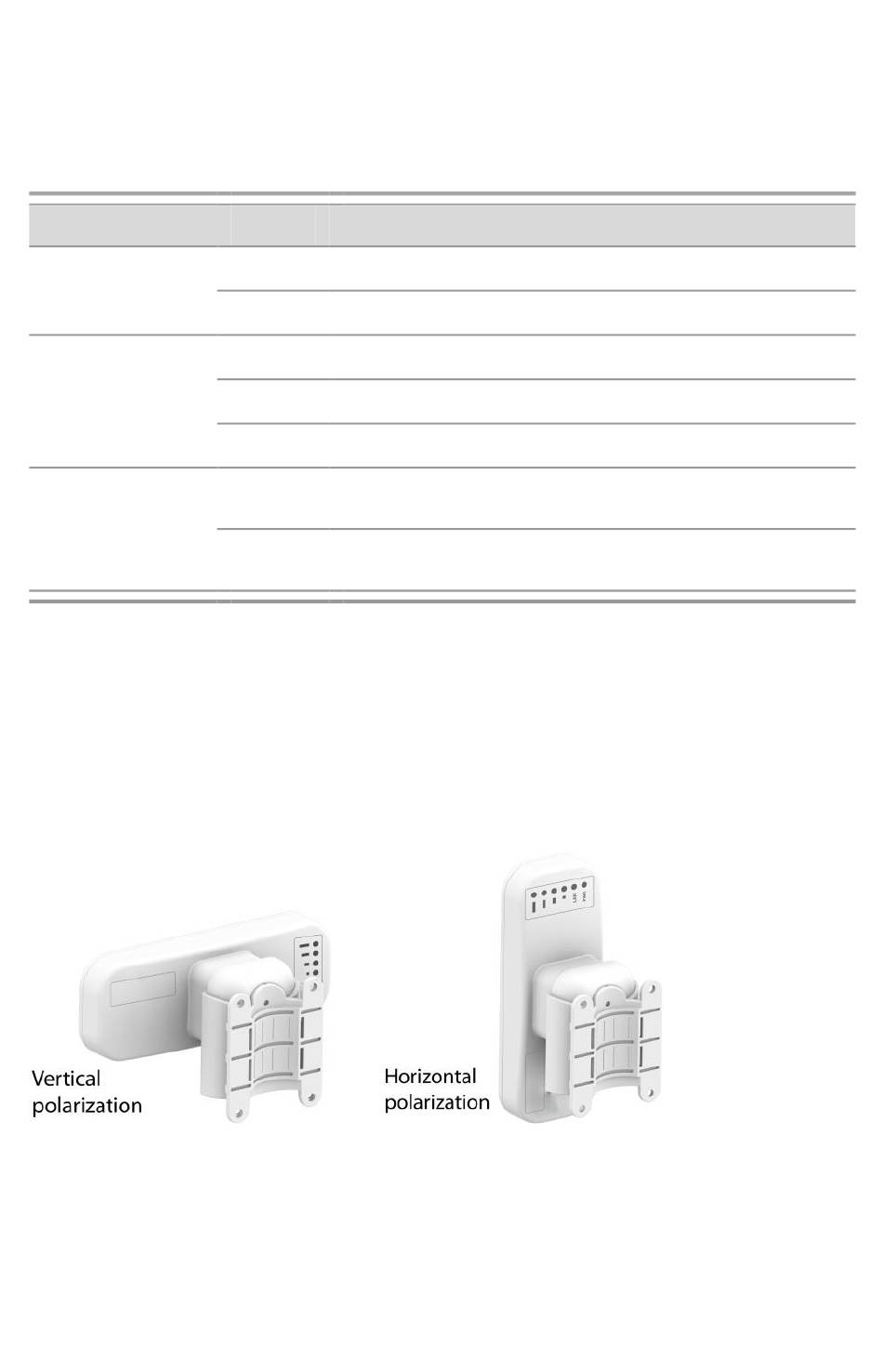

Figure 4 – Vertical and Horizontal Polarization of Main TX/RX Chain
deliberant
Status Indication
On APC is active/working
Off No power on APC
On LAN connection exists.
Blinking Indicates the traffic on LAN interface.
Off No LAN connection.
On The RSSI level has reached the appropriate
threshold level.
Off The RSSI level has not reached the appropriate
threshold level.
Installation
Page 9
