Summary of Contents for Deliberant APC 5M-18 V2
-
Page 1: Quick Installation Guide
APC 5M-18 V2 Quick Installation Guide Revision 1.2 21 October 2011 Copyright © 2011 Deliberant www.deliberant.com... -
Page 2: Copyright
This user’s guide and the software described in it are copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Deliberant. Notice Deliberant reserves the right to change specifications without prior notice. -
Page 3: Table Of Contents
INSTALLATION ............................. 7 Package Contents ..........................7 Hardware Introduction ......................... 8 LEDs ..............................8 Assembling and mounting the APC 5M-18 V2 ..................9 ACCESS THE APC 5M-18 V2 ......................11 Connection via WEB Browser ......................11 Resetting to Factory Defaults ......................12... -
Page 4: Introduction
FCC rules CFR47 part 15.204. The installer should configure the output power level of antennas, according to country regulations and per antenna type. Professional installation is required of equipment with connectors to ensure compliance with health and safety issues. Antenna Compliance The APC 5M-18 V2 radio module contains internal antenna. deliberant Page 4... -
Page 5: Ce Mark Warning
Finland, France (with Frequency channel restrictions), Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden and United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states Iceland, Liechtenstein, Norway and Switzerland. EU Countries Not Intended for Use None. deliberant Page 5... -
Page 6: About This Guide
File names, directory names, form names, system-generated output, and user typed entries are displayed in constant-width type Technical Support If you encounter problems when installing or using this product, please consult the Deliberant website at www.deliberant.com for: Direct contact to the Deliberant support centers. -
Page 7: Installation
Installation Quick Installation Guide Installation This chapter provides installation instructions for the hardware components of the APC 5M-18 V2. Package Contents The figure below displays APC 5M-18 V2 package contents. Figure 1 – APC 5M-18 V2 Package Contents Item Component Name... -
Page 8: Hardware Introduction
FCC ID: UB8-APC5M18V2 IC ID: 6607-APC5M18V2 LEDs The APC 5M-18 V2 has 6 LEDs located on the side panel: power, LAN and 4 RSSI LEDs. The various states of the LEDs indicate different connection operations as follows: Color Status... -
Page 9: Assembling And Mounting The Apc 5M-18 V2

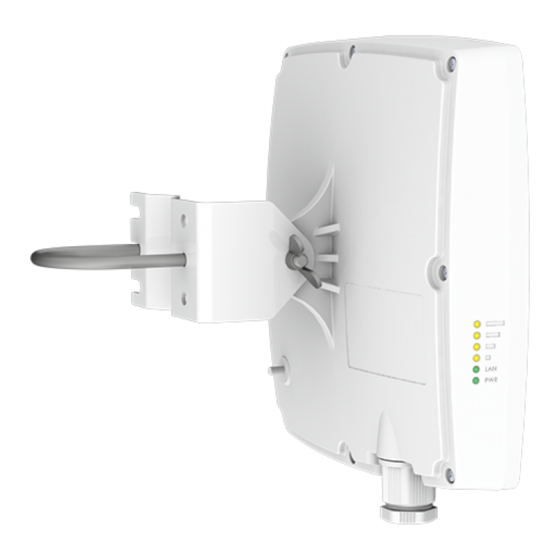

Step 4. For pole mounting attach APC 5M-18 V2 on pole with U bolt (items H and J in the Figure 1 – APC 5M-18 V2 Package Contents) as shown in picture below: Step 5. - Page 10 RSSI visible on the Antenna Alignment graph is achieved. After the maximal RSSI is reached, tighten down the unit in the optimum position. Avoid standing directly in front of an operating antenna while aligning. deliberant Page 10...
-
Page 11: Access The Apc 5M-18 V2
Access the APC 5M-18 V2 The first connection to the APC 5M-18 V2 can be made using a standard Ethernet cable connected directly to your PC. See next sections for the instructions on how to access the APC 5M-18 V2 management interfaces. -
Page 12: Resetting To Factory Defaults
Resetting to Factory Defaults APC 5M-18 V2 has the capability of being reset to defaults by pinging the device with a certain packet size when the device is booting. During the startup of the device, when the drivers of the ethernet interfaces are loaded, the reset daemon is started.
