Hardware Introduction - Deliberant APC Propeller 2 Quick Installation Manual

Quick Installation Guide

Hardware Introduction

APC unit is housed in a plastic ultrasonically welded enclosure, ensuring a reliable
sealing in a wide range of temperature and has an integrated 12dBi (APC Propeller 2)
or 16dBi (APC Propeller 5) directional antenna.

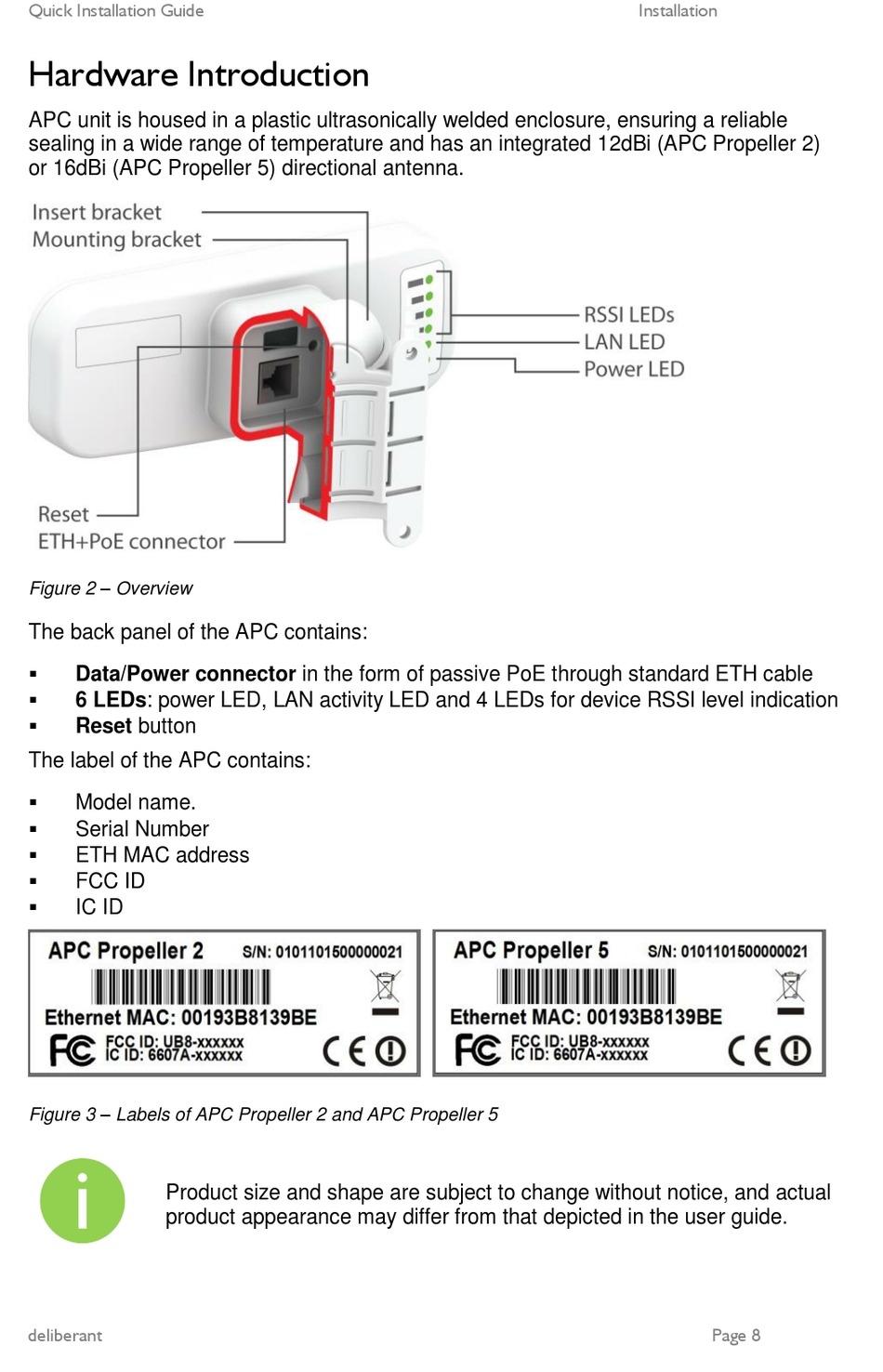

Figure 2 – Overview
The back panel of the APC contains:

Data/Power connector in the form of passive PoE through standard ETH cable

6 LEDs: power LED, LAN activity LED and 4 LEDs for device RSSI level indication

Reset button
The label of the APC contains:

Model name.

Serial Number

ETH MAC address

FCC ID

IC ID
Figure 3 – Labels of APC Propeller 2 and APC Propeller 5
Product size and shape are subject to change without notice, and actual
product appearance may differ from that depicted in the user guide.
