- Page 1 APC 2Mi Quick Installation Guide Revision 1.2 19 February 2011 Copyright © 2011 Deliberant www.deliberant.com...
-
Page 2: Copyright
This user’s guide and the software described in it are copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Deliberant. Notice Deliberant reserves the right to change specifications without prior notice. -
Page 3: Table Of Contents
INSTALLATION ............................. 7 Package Contents ..........................7 Hardware Introduction ......................... 7 LEDs ..............................8 Mounting the APC 2Mi on the Wall ..................... 9 ACCESS THE APC 2MI ........................10 Connection via WEB Browser ......................10 Resetting to Factory Defaults ......................11 Resetting Device via Ping ...................... -
Page 4: Introduction
FCC Radiation Exposure Statement To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 20 cm is required between the antenna and all public persons. deliberant Page 4... -
Page 5: Ce Mark Warning
Finland, France (with Frequency channel restrictions), Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden and United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states Iceland, Liechtenstein, Norway and Switzerland. EU Countries Not Intended for Use None deliberant Page 5... -
Page 6: About This Guide
File names, directory names, form names, system-generated output, and user typed code entries are displayed in constant-width type Technical Support If you encounter problems when installing or using this product, please consult the Deliberant website at www.deliberant.com for: Direct contact to the Deliberant support centers. ... -
Page 7: Installation

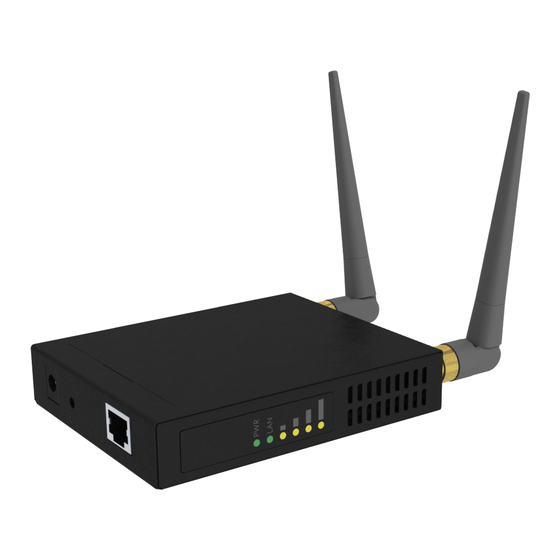

Power adapter If any of these items are missing or damaged, please contact your reseller. Hardware Introduction APC 2Mi is housed in a rugged metal enclosure and has two omni antennas: Figure 2 – APC 2Mi Overview The APC 2Mi contains: ... -
Page 8: Leds
IC ID: 6607-APC2Mi LEDs The APC 2Mi has 6 LEDs located on the side panel: power, LAN and 4 RSSI LEDs (refer at the Figure 2 – APC 2Mi Overview for details). The various states of the LEDs indicate different connection... -
Page 9: Mounting The Apc 2Mi On The Wall
Quick Installation Guide Mounting the APC 2Mi on the Wall The indoor unit APC 2Mi unit can be mounted on a wall easy. Follow the steps for APC 2Mi installation on a wall: Attach the unit by a two screws on a wall and push it downwards until it clicks into Step 1. -
Page 10: Access The Apc 2Mi
Quick Installation Guide Access the APC 2Mi The first connection to the APC 2Mi can be made using a standard Ethernet cable connected directly to your PC. See next sections for the instructions on how to access the APC 2Mi management interfaces. -
Page 11: Resetting To Factory Defaults
Resetting to Factory Defaults The APC 2Mi device has 2 options how to reset device to factory defaults: Reset button (refer at the Figure 2 – APC 2Mi Overview). Press and hold the Reset button for 1 second to reboot the controller; press and hold the Reset button for more than 5 seconds to set the controller to factory defaults.
