4.3 The Determination of the Installation Method and Position

4.3.1 Mounting Method

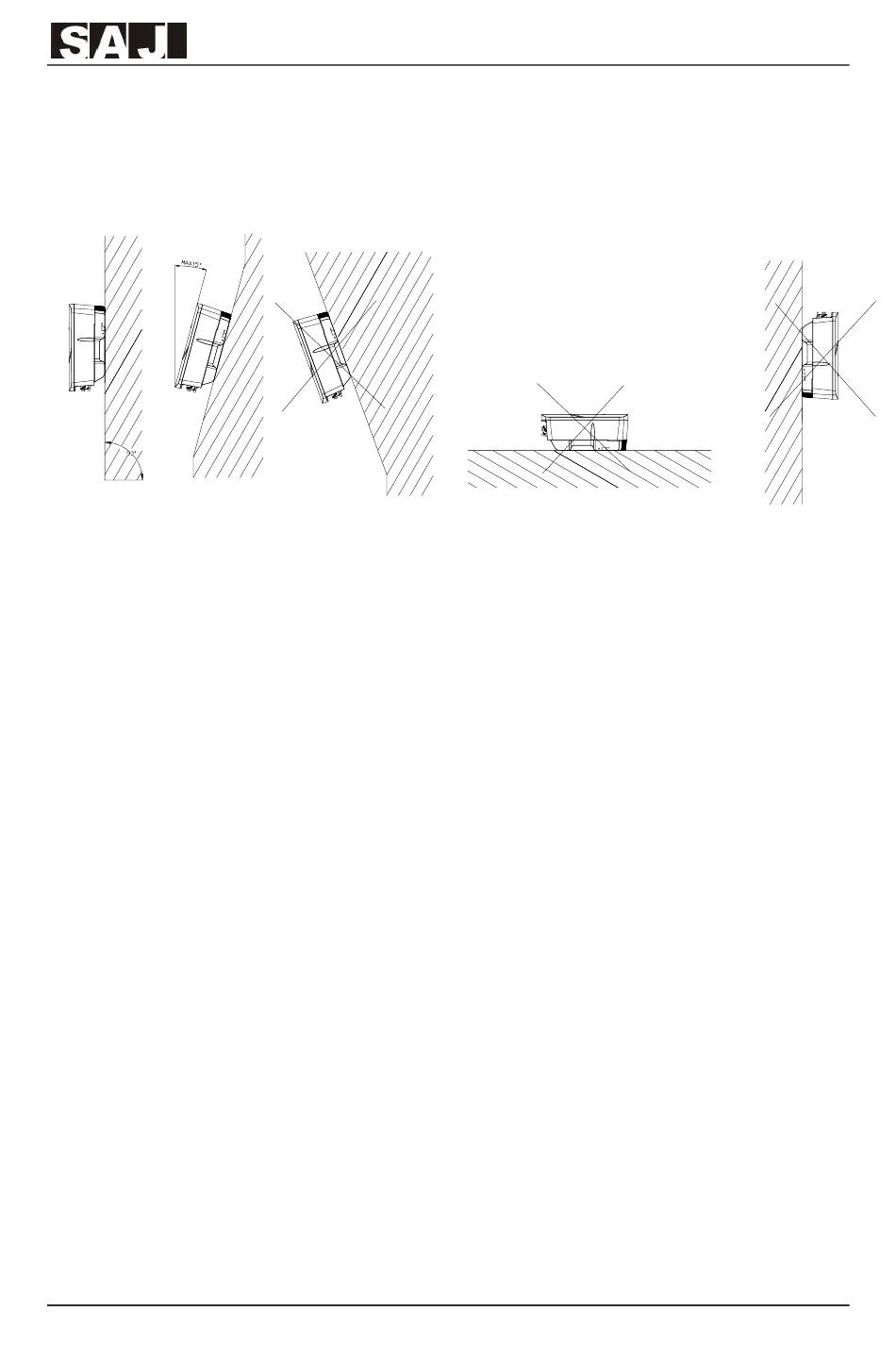

Figure 4.1 Mounting method
① The equipment employs natural convection cooling, and it can be installed
indoor or outdoor.
② Please install the equipment under the guidance of Figure 4.1. Vertical
installation on floor level is recommended. Mount vertically or tilted backwards by
max. 15° . Never install the inverter tilted forwards, sideways, horizontally or
upside down.
③ Considering convenience for maintenance, please install the equipment at a
position in parallel with line of sight.
④ When mounting the inverter, please consider the solidity of wall for inverter,
including accessories. Please ensure the Rear Panel mount tightly.
Before installation, make sure that the wall has enough strength to hold the screws
and bear the weight of the equipment. Please make sure the equipment is installed
properly.
