GUDEL FlexxPump 404DLS Operating Manual

Automatic lubrication system
Hide thumbs Also See for FlexxPump 404DLS:
Table of Contents

Advertisement

Quick Links

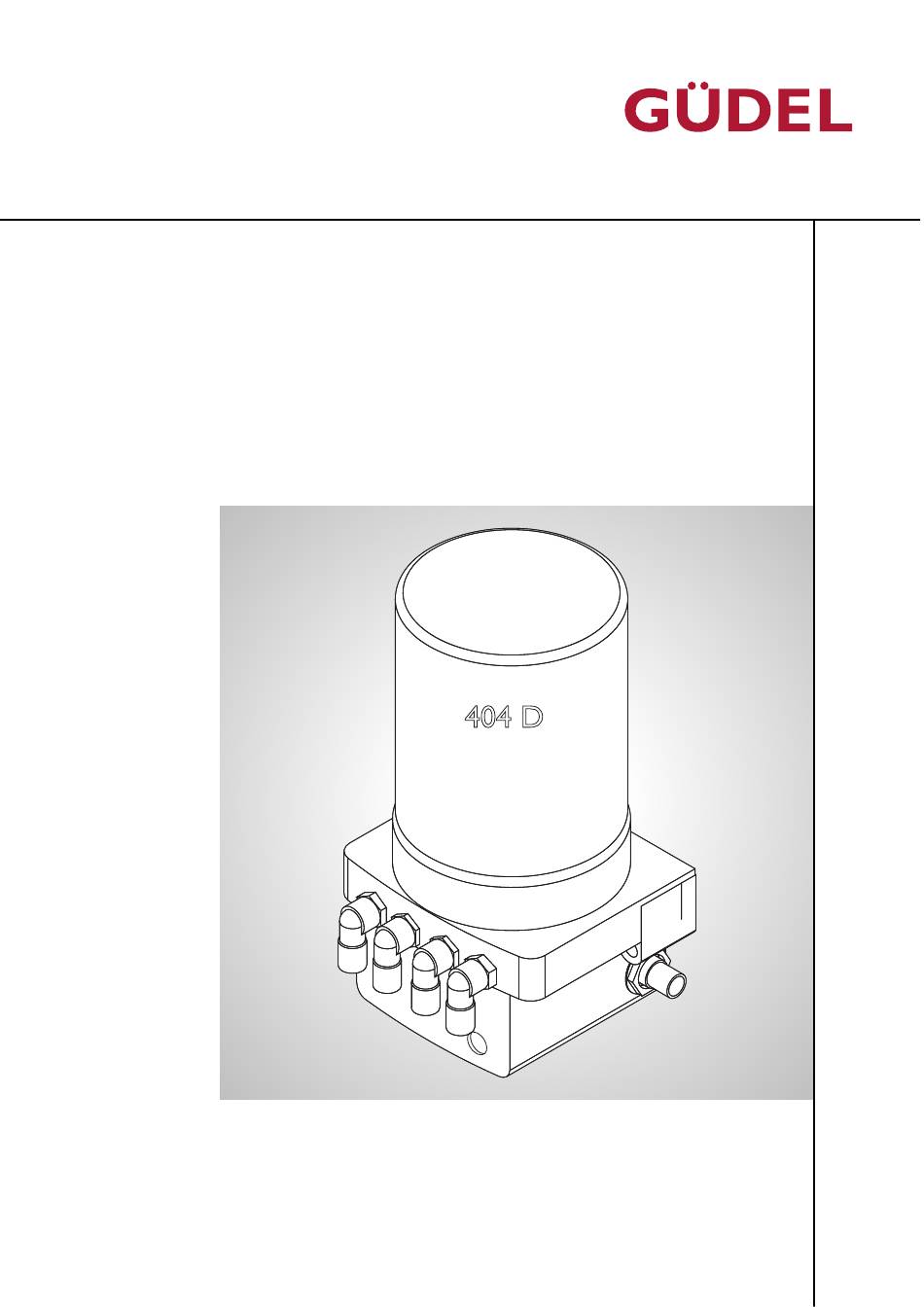

OPERATING MANUAL
Automatic lubrication system
FlexxPump 404DLS
Project / Order:
Bill of materials:
Serial number:
Year of manufacture:
404 DLS
B1X.xxxxxxxxx-xxxx
09xxxxx
2019
99079191943154
BETRIEBSANLE
