Dual-Channel
Arbitrary Waveform Generator
Quick Guide
 FG-30802T
 FG-31602T
 FG-32502T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FG-30802T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VOLTCRAFT FG-30802T

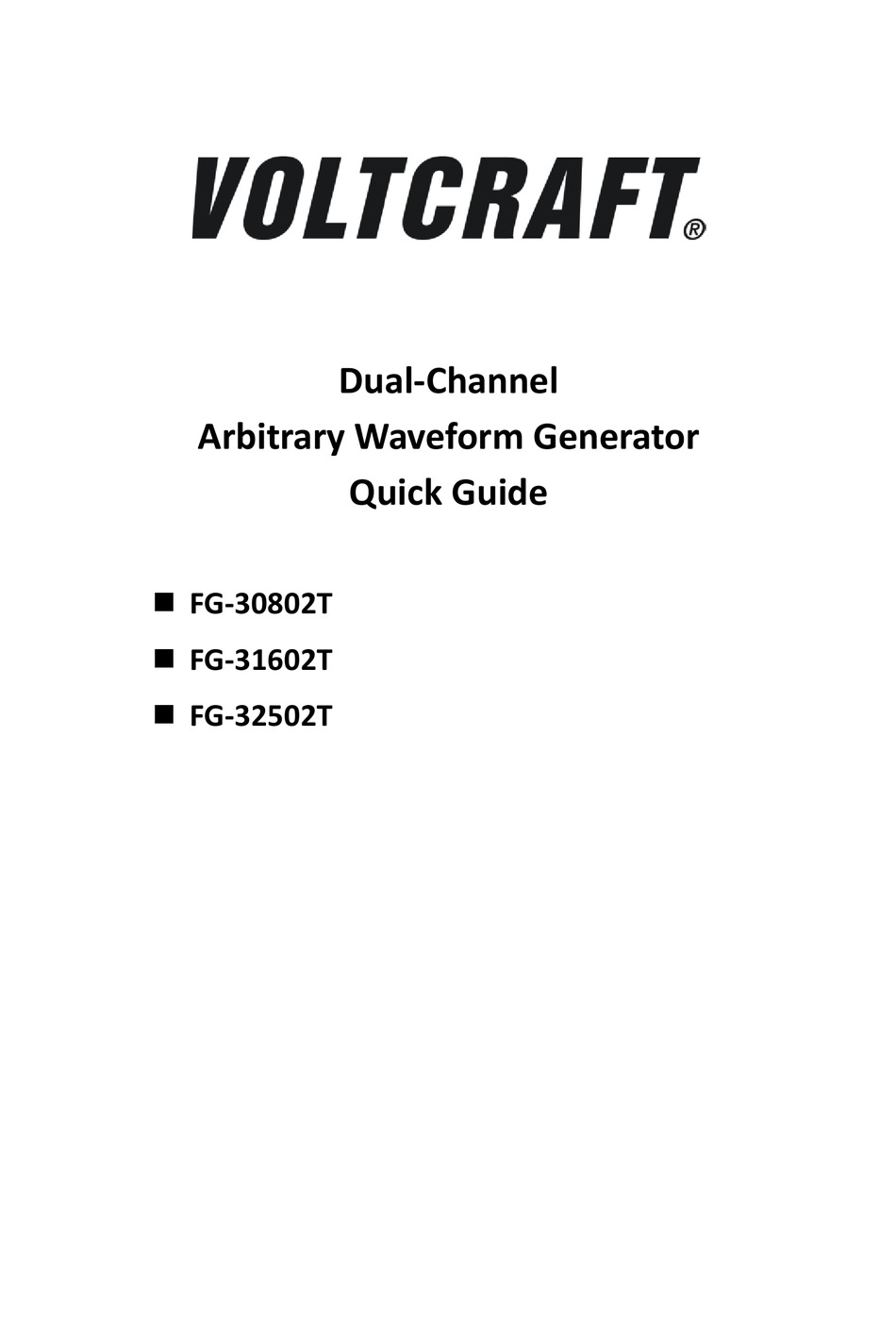

  • Page 1 Dual-Channel Arbitrary Waveform Generator Quick Guide  FG-30802T  FG-31602T  FG-32502T...
  • Page 2: Table Of Contents

    Table of Contents 1.General Safety Requirement ..............1 2.Safety Terms and Symbols ..............2 3.Quick Start .................... 3 Front panel overview ........................3 Rear Panel Overview ........................5 Power on ............................. 6 User Interface ..........................7 Use build-in Help ......................... 8 Set the channel ...........................
  • Page 3: General Safety Requirement

    1.General Safety Requirement 1. General Safety Requirement Before use, please read the following safety precautions to avoid any possible bodily injury and to prevent this product or any other connected products from damage. In order to avoid any contingent danger, ensure this product is only used within the range specified.
  • Page 4: Safety Terms And Symbols

    2.Safety Terms and Symbols 2. Safety Terms and Symbols Safety Terms Terms in this manual. The following terms may appear in this manual: Warning: Warning indicates the conditions or practices that could result in injury or loss of life. Caution: Caution indicates the conditions or practices that could result in damage to this product or other property.
  • Page 5: Quick Start

    3.Quick Start 3. Quick Start Front panel overview Figure 3-1 Front Panel overview 1 Display Area Display user interface 2 Menu Selection Includes 6 buttons to select the corresponding menu softkey Button 3 Mode Button Modulation (Mod): Output modulation waveform Area Sweep: Scan a sine wave, square wave, ramp wave or arbitrary wave...
  • Page 6 3.Quick Start Preset: Enter the preset menu, set the reset parameters or power-on parameters; save or read the settings file. Utility: Set the auxiliary system function Store: Save/recall arbitrary waveform data Help: To get context help for any front panel button or menu softkey, press the button and then press the button for which you need help.
  • Page 7: Rear Panel Overview

    3.Quick Start On/Off key: Turns the output of the CH1 channel on or off. When the output is turned on, the backlight of the button lights up. 15 Waveform Including: sine , square , ramp , pulse Selection Area , noise , arbitrary wave , harmonic waves .
  • Page 8: Power On

    3.Quick Start 6 LAN Interface The signal generator is connected to the local area network through this interface for remote control. 7 USB Device Interface Used to connect a USB type B controller. The PC can be connected to communicate with the signal generator through the host computer software.
  • Page 9: User Interface

    3.Quick Start User Interface Figure 3-3 User Interface 1 Display channel name and channel status 2 Current waveform or current mode 3 Trigger source. Internal: internal modulation or internal trigger source External: external modulation or external trigger source Manual: manual trigger source 4 Load, High Z indicates high resistance 5 This icon is lit when the network is connected through the LAN This icon is lit when connected to the USB Host via the USB DEVICE...
  • Page 10: Use Build-In Help

    3.Quick Start 14 Amplitude / high level, depending on the right highlighted menu item 15 Frequency/cycle, depending on the right highlighted menu item Use build-in Help (1) To get help on any front panel button or menu softkey, press the front panel Help function button first, then press the button you need help.
  • Page 11 3.Quick Start menu item is highlighted on white, and the cursor will display on corresponding parameter item in the user interface. Press the frequency/period softkey to switch the frequency/period. There are two ways to change the selected parameter value:  Turn the knob to increase or decrease the value at the cursor. Press the arrow key to move the cursor left or right.
  • Page 12: Output The Build-In Waveform (Including Ac)

    3.Quick Start Arbitrary Frequency/Period, Amplitude/High, Offset/Low, StartPhase, Bult-in Frequency/Period, Amplitude/High, Offset/Low, StartPhase, Harmonic Type/Sequential, Order, SN, Amplitude, Phase Output the build-in waveform (including AC) (1) Press the Arbitrary Wave button to enter the Arbitrary Wave menu and configure the waveform parameters. (2) Press the Built-in softkey, the build-in waveform type menu will pop out.
  • Page 13: Output Mod Waveforms

    3.Quick Start to enter the softkey. Turn the knob to select one of the USER files (EditMemory cannot be selected) and press the Save softkey. (The file size is displayed on the right side of the USER file. If 0B is displayed, it means the file is empty.) ...
  • Page 14: Output Sweep Waveform

    3.Quick Start Internal source waveform modulation, frequency modulation, phase deviation External source Phase deviation Internal source waveform modulation, frequency modulation, duty cycle deviation External source Duty cycle deviation Internal source Waveform modulation, ASK rate, amplitude External source Slope, amplitude Internal source Waveform modulation, PSK rate, phase deviation External source Slope, phase deviation...
  • Page 15: Counter

    3.Quick Start Counter The frequency meter measures signals in the frequency range from 100 mHz to 200 MHz. The [10MHz In/Out/Counter] connector on the rear panel is used by default to receive the frequency meter input signal. The frequency meter works from the start, unless the connector is set to an external clock input or clock output.
  • Page 16: File Store System

    3.Quick Start File Store System File system memory is divided into internal memory (INTER) and removable memory (USBDEVICE). When a USB device is connected, the main interface displays INTER and USBDEVICE. If no USB device is connected, only the internal memory INTER is displayed.
  • Page 17: Bring Up Arbitrary Wave Files In Internal/External Memory

    3.Quick Start Press the Select soft key to enter the current character. Press the Delete soft key to delete the last character that has been entered. Press the Finish soft key to finish editing, and the waveform will be saved in the current path in a file format such as bin.
  • Page 18: Clear Waveform From Memory

    3.Quick Start Clear waveform from memory Press the front panel Store function key to enter the file system. Select INTER under the memory selection interface and press to enter the soft key. Press the Security soft key, the screen pops up, and then press the OK soft key to clear all waveforms in the internal memory.
  • Page 19 3.Quick Start can set the display parameters of the signal generator, CH1/2 parameters, interface parameters and system parameters. Press Utility again to exit the system options menu. Utility system menu Menu Description Display Setting Backlight Set the parameter value of the screen brightness Screen saver Screen saver time range between 1 to 999 minutes Separator...
  • Page 20: Communicate With Pc

    4.Communicate with PC 4. Communicate with PC Supports communication with a computer via a USB port or a LAN port. Using the Waveform Editor software installed on the computer, the signal generator can be operated on the computer to control the output of the signal generator. Here's how to connect to a computer.
  • Page 21: Connect Through A Router

    4.Communicate with PC any value from 0 to 4000. However, since ports below 2000 are often occupied, it is recommended to set it to 2000 or higher. Here, it is set to "3000". Figure 4-1 Setting the network parameters of the host computer (4) Set the network parameters of the signal generator.
  • Page 22 4.Communicate with PC (4) Set the network parameters of the signal generator. In the signal generator, press Utility → I/O Setup → Network setting to enter the submenu. Set the IP address and port to the IP and port in the PC software port settings in step (3). The gateway settings need to be the same as the gateway settings of the router.
  • Page 23: Appendix

    5.Appendix 5. Appendix Appendix A:Accessories  A power cord that meets the standards of the country where you are located  A USB communication cable  A CD  A Safety hintsheet  Two BNC/Q9 lines Appendix B:General Care and Cleaning General maintenance Do not store or place the instrument where the LCD monitor will be exposed to direct sunlight for long periods of time.
