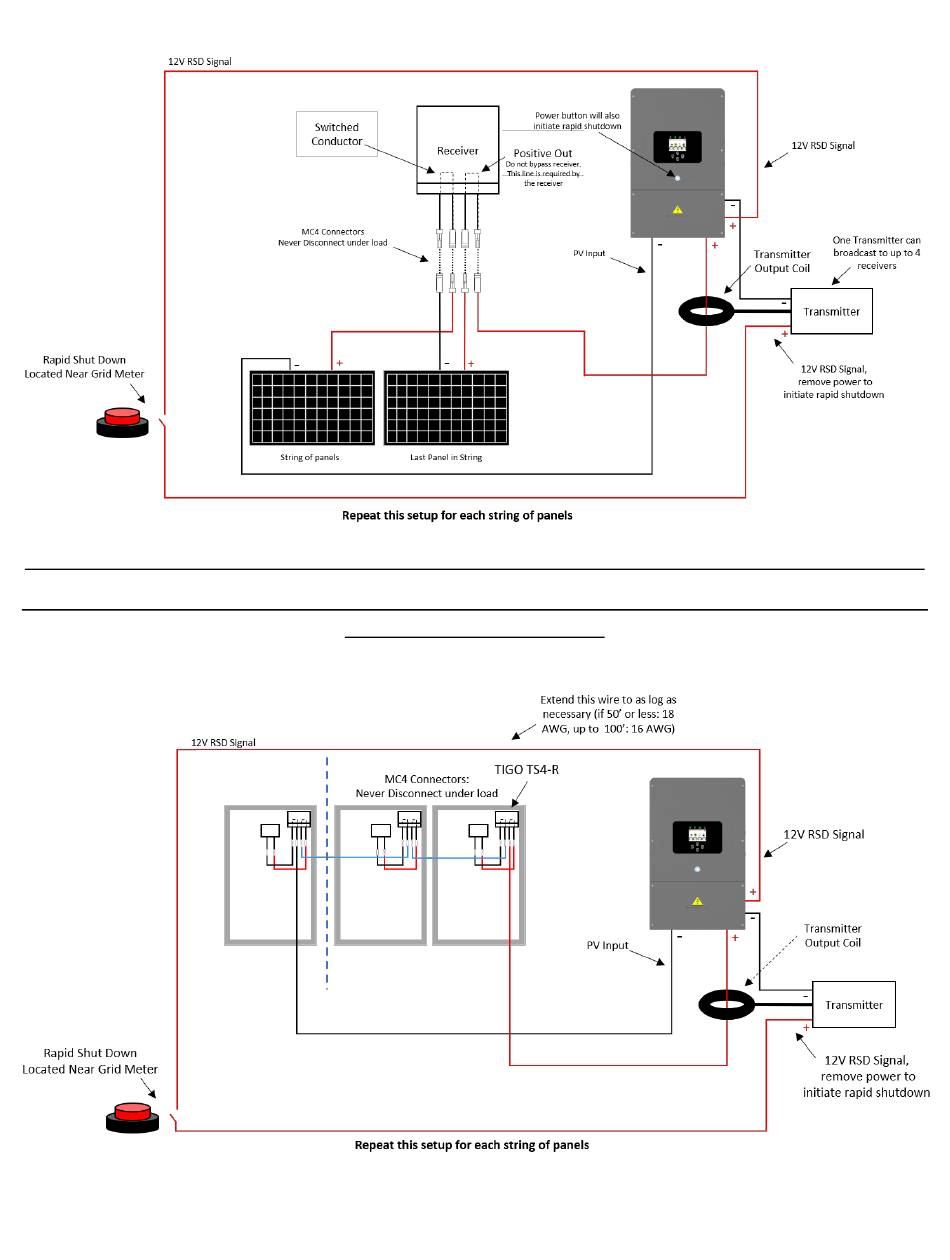

Rapid Shutdown Hardware Diagram (Midnight RSD per PV string)
Note: If parallel systems: the RSD Signals for all systems must be in parallel and pass through the same RSD button
Note: Transmitter fits inside the user area of the Sol-Ark 12K but can cause interference (placing it outside of
the user area is recommended)
Rapid Shutdown Hardware Diagram (TIGO RSD per PV Module)
February 3, 2020
26
