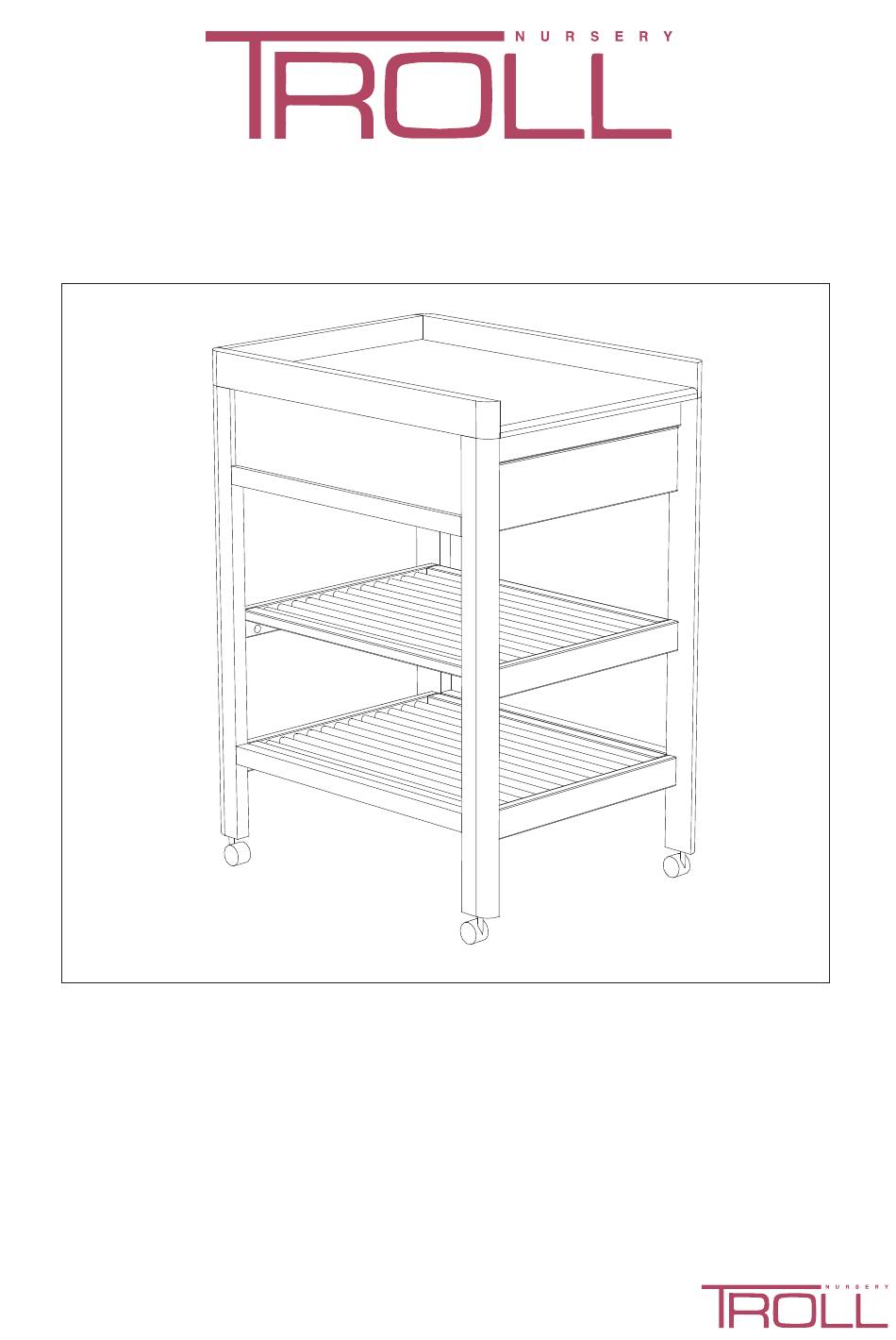

- Page 1 LUKAS CHANGER IMPORTANT RETAIN FOR FUTURE REFERENCE READ CAREFULLY The illustrations in these instructions are to be used as a guide only Conforms to standard EN 12221-1&2:2008 + A1:2013 Made in Latvia...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS WARNING! Your child’s safety is your responsibility. This changing table is suitable for use by a child up to approximately 12 months old or maximum weight 11 kg. Additional or replacement parts should only be supplied by manufacturer or distributor. Remove all parts from packaging and check against the parts list. -
Page 3: Parts List
PARTS LIST FITTINGS LIST TOOLS REQUIRED... - Page 4 ASSEMBLING Insert wooden dowels B into the edge of the top shelf. Fix the back panel to the top shelf using bolts A. Insert the drawer base into the slots on both drawer sides. Attach the drawer back and front to drawer sides as shown.
- Page 5 Attach the top shelf to the side frames by aligning the wooden dowels into the predrilled holes. Fix the two internal shelves and top shelf suports to side frames using fittings B and D. Insert the drawer into drawer tracks. CUSTOMER ENQUIRIES Manufacturer: SIA Troll Smiltene,...
