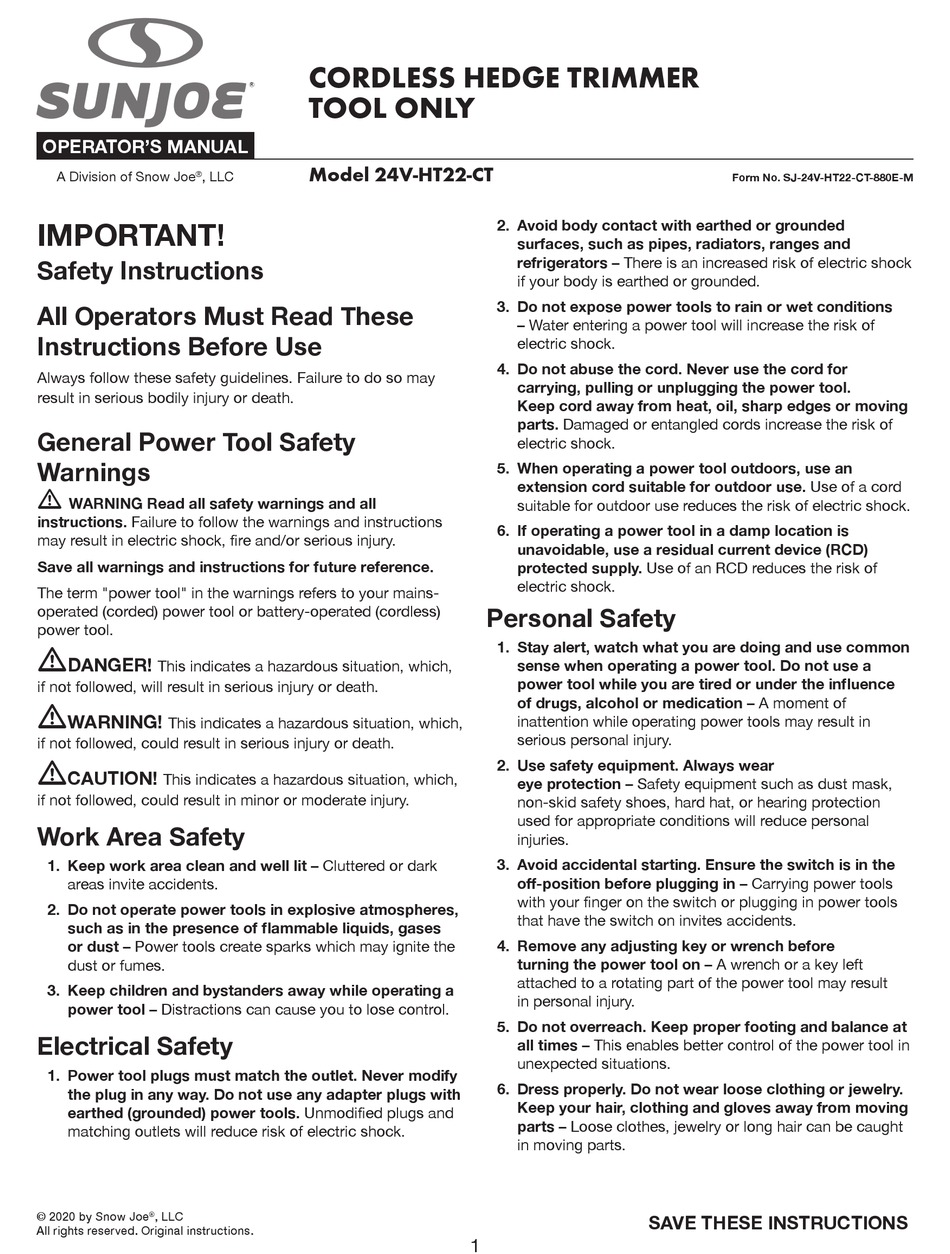

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
General Power Tool Safety
Warnings
m
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in serious injury or death.
m
WARNING!
This indicates a hazardous situation, which,
if not followed, could result in serious injury or death.
m
CAUTION!
This indicates a hazardous situation, which,
if not followed, could result in minor or moderate injury.
Work Area Safety
1. Keep work area clean and well lit – Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases
or dust – Power tools create sparks which may ignite the
dust or fumes.
3. Keep children and bystanders away while operating a
power tool – Distractions can cause you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
© 2020 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
CORDLESS HEDGE TRIMMER
R
TOOL ONLY
Model 24V-HT22-CT
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators – There is an increased risk of electric shock
if your body is earthed or grounded.
3. Do not expose power tools to rain or wet conditions
– Water entering a power tool will increase the risk of
electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
Personal Safety
1. Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication – A moment of
inattention while operating power tools may result in
serious personal injury.
2. Use safety equipment. Always wear
eye protection – Safety equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal
injuries.
3. Avoid accidental starting. Ensure the switch is in the
off-position before plugging in – Carrying power tools
with your finger on the switch or plugging in power tools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on – A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
5. Do not overreach. Keep proper footing and balance at
all times – This enables better control of the power tool in
unexpected situations.
6. Dress properly. Do not wear loose clothing or jewelry.
Keep your hair, clothing and gloves away from moving
parts – Loose clothes, jewelry or long hair can be caught
in moving parts.
SAVE THESE INSTRUCTIONS
1
Form No. SJ-24V-HT22-CT-880E-M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 24V-HT22-CT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for sunjoe 24V-HT22-CT

  • Page 1 OPERATOR’S MANUAL Model 24V-HT22-CT A Division of Snow Joe , LLC ® Form No. SJ-24V-HT22-CT-880E-M IMPORTANT! 2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and Safety Instructions refrigerators – There is an increased risk of electric shock if your body is earthed or grounded.
  • Page 2 7. If devices are provided for the connection of dust 5. The battery pack supplied with your hedge trimmer is only extraction and collection facilities, ensure these are partially charged. The battery pack has to be charged connected and properly used – Use of dust collection completely before you use the tool for the first time.
  • Page 3 19. Follow all charging instructions and do not charge the 11. Do not overreach and to keep the balance at all times. battery pack or appliance outside of the temperature Always be sure of the footing on slopes. Walk when range specified in the instructions.
  • Page 4: Operation

    – have any damaged parts replaced or repaired with parts Take the following points into account to minimise the vibration having equivalent specifications. and noise exposure risks. 1. Only use the product as intended by its design and these Operation instructions.
  • Page 5: Battery & Charger Safety Instructions

    They must be purchased separately. sure that the extension cord is in good electrical condition. Model 24V-HT22-CT is compatible with the iON+ 24V System • Check the rated input for the charger before using – batteries and chargers. See page 15 for more information.
  • Page 6 Information about the charger and the 5. Do not keep the battery charger in places where the temperature is liable to reach over 105°F (40.5°C). charging process In particular, do not leave the battery charger in a car that 1. Please check the data marked on the rating plate of the is parked in the sunshine.
  • Page 7: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, SAFETY ALERT –...
  • Page 8: Know Your Cordless Hedge Trimmer

    1. Safety guard 2. Front handle 3. Safety lock button 4. Rear handle 5. On/Off trigger 6. Battery compartment 7. Blade cover 8. Blade 9. Blade support Battery + Charger options available at sunjoe.com SOLD SEPARATELY 24VBAT-LTE 24VBAT-LT 24VBAT 24VBAT-XR 24VCHRG-QC 24VCHRG-DPC...
  • Page 9: Technical Data

    24V System batteries and chargers. See page 15 for The battery is at 60% capacity battery options and specifications, or visit sunjoe.com. and requires charging soon 1. Carefully remove the cordless hedge trimmer and check to The battery is at full capacity see that all of the above items are supplied.
  • Page 10: Charger Operation

    24V System battery and charger. See page 15 for Fully battery and charger options and specifications, or for more Charged information visit sunjoe.com. green When to Charge the iON+ 24V Lithium-iON Batteries NOTE: The iON+ 24V lithium-ion battery packs do not develop a "memory"...
  • Page 11: Holding The Trimmer

    Fig. 4 an iON+ 24V System battery and charger. See page 15 for Front handle battery and charger options and specifications, or for more information visit sunjoe.com. Starting + Stopping WARNING! Ensure the blade does not touch any objects before turning on the hedge trimmer.
  • Page 12: Cutting Procedures

    Safety lock button Fig. 8 Fig. 7 5º – 10º On/Off trigger 3. To turn the tool OFF, release the On/Off trigger and the safety lock button (Fig. 7). NOTE: Do not press the On/Off trigger until you are ready to make a cut.
  • Page 13: Care & Maintenance

    • If desired, you can use a string to help cut your hedge If you will be using the hedge trimmer for an extended period, level. Decide how high you want the hedge. Stretch a it is advisable to stop work intermittently in order to re-oil the piece of string along the hedge at the desired height.
  • Page 14: Recycling + Disposal

    If your Sun Joe iON+ 24V cordless hedge trimmer ® The product comes in a package that protects it against 24V-HT22-CT requires service or maintenance, please damage during shipping. Keep the package until you are call the Snow Joe + Sun Joe customer service center at ®...
  • Page 15 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ®...
  • Page 16 Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). sunjoe.com R4_01282020...
