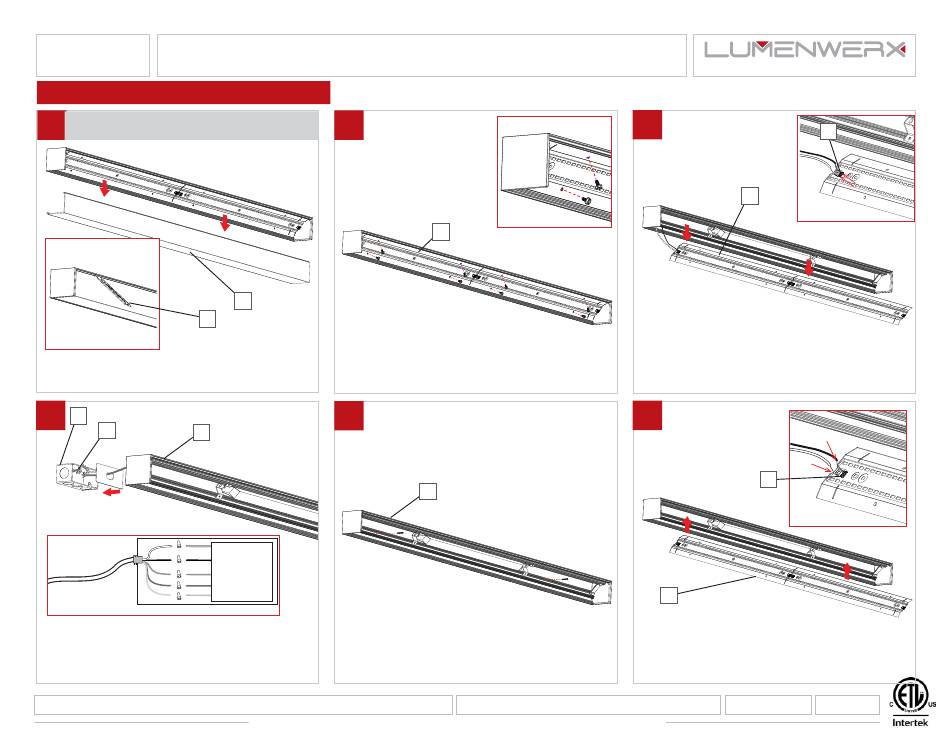

LUMENWERX CUBITO Installation Instructions

CUBITO
WALL/SURFACE - INSTALLATION INSTRUCTIONS
NOTE: Wire dimming conductors as Class 1
1

SINGLE FIXTURE

B
Remove the lens (A) using the included lens tool
(B).
4
E
G
F
WHT WHT
BLK BLK
MAIN POWER
DRIVER
GRN
GRN
PPL PPL
GRY GRY
FIXTURE
Make the electrical connections on the J-Box (E)
between the fixture (F) and the main power (G)
(connect the wires with the same colors together).
Number of wires may vary.
www.lumenwerx.com (T) 514-225-4304 (F) 514-931-4862 © All rights are reserved to LumenWerx ULC.
2
A
Unscrew the cartridge (C) and keep the screws in
a safe place.
5
Fix the fixture (F) to the wall by screwing it directly to
the wall. Align the screws (by other) with the studs
inside the wall.
LumenWerx ULC. reserves the right to change or modify product specifications without notification
C
F
FILE NAME:CUBITO-LED-SURFACE-WALL-MOUNT-INST
W W W . L U M E N W E R X . C O M
3
C
Disconnect LED molex connector (D) by taking a
pointed object and pressing on the two tabs on the
top. Remove the cartridge (C) and keep it in a safe
place.
6
D
C
Put back the reflector (C) in place and reconnect
the wires to the LED molex connectors (D).
November 12, 2019
D
Page: 1 / 3
