LUMENWERX QUAD N-W FLUORESCENT Installation Instructions

QUAD N-W FLUORESCENT

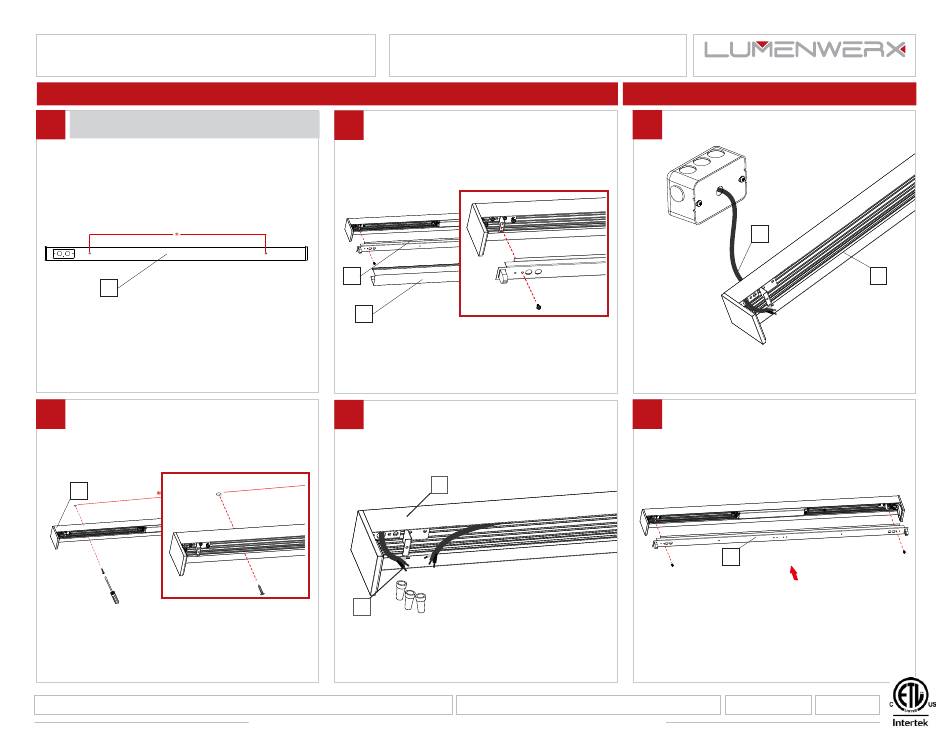

IMPORTANT: Installation instructions are shown with Quad Narrow and applies to all Quad sizes
1

SINGLE FIXTURE

A
Make sure the power to the fixture (A) is turned
off. Mounting points on the fixture according to
the client drawings.
4
A
Install the fixture (A) on the wall according to the
dimensions [*] given in the client drawings. Screw
the fixture (A) to attach it to the wall.
www.lumenwerx.com (T) 514-225-4304 (F) 514-931-4862 © All rights are reserved to LumenWerx ULC.
WALL MOUNT - INSTALLATION
2
C
B
Remove lens (B). Unscrew the reflector (C) and
remove it.
5
A
D
Make wire connection inside the fixture between
fixture (A) and wall power cable (D).
LumenWerx ULC. reserves the right to change or modify product specifications without notification
NOTE: Wire dimming conductors as Class 1
3
Insert wall power cable wires (D) inside the fixture
(A).
6
Screw back in place the reflector (C).
FILE NAME:QUAD-FLU-WALL-MOUNT-INST
W W W . L U M E N W E R X . C O M
D
A
C
November 14, 2019 Page: 1 / 3
