LUMENWERX RIM LINEAR Installation Instructions

RIM LINEAR
IMPORTANT: Installation instructions are shown with RIM 4 and applies to all RIM LINEAR fixtures
1
C
B
A
POWER SIDE NON POWER SIDE

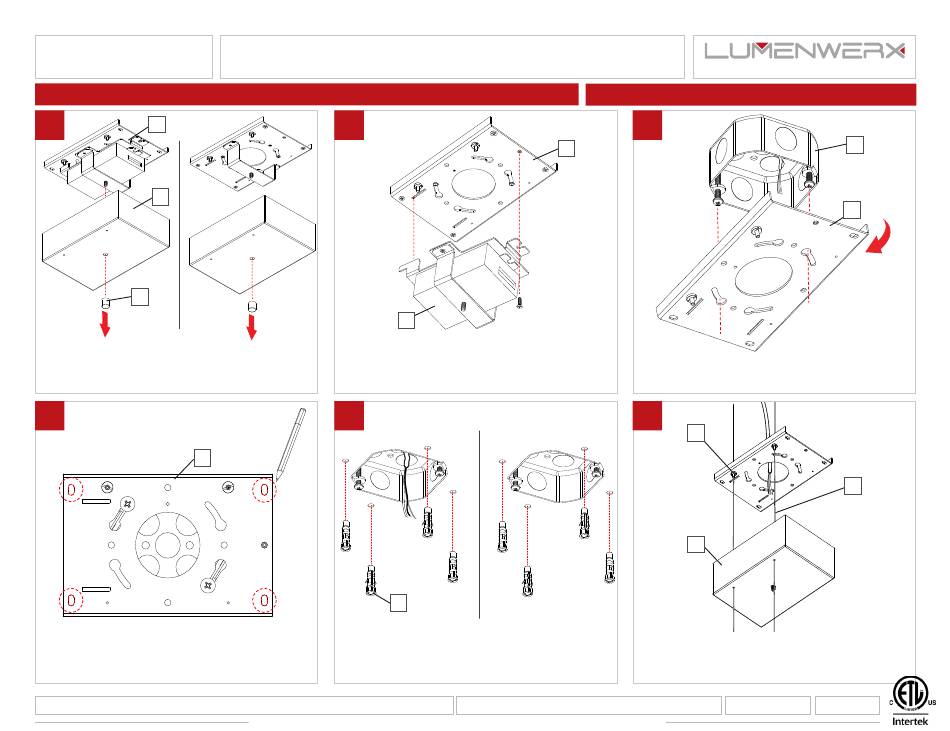

Loosen the decorative nut (A) on the canopy (B).
Separate the canopy (B) from the canopy plate (C).
4
C
Use the canopy plate (C) as a model to mark 4 holes.
www.lumenwerx.com (T) 514-225-4304 (F) 514-931-4862 © All rights are reserved to LumenWerx ULC.
PENDANT - CANOPY DRIVER BOX - POC
2
D
Unscrew to remove the canopy driver (D) from the
canopy plate (C) in the order of the numbers.
5
F
POWER SIDE
Remove the canopy plate. Drill holes (Ø 1/4")
following the marks. Install #8 screw anchors (F) .
LumenWerx ULC. reserves the right to change or modify product specifications without notification
NOTE: Wire dimming conductors as Class 1
3
C
Mount and turn the canopy plate (C) to place on the
junction box (E).
6
NON POWER SIDE
Pass all cables (H) through the canopy (B). Insert
them into the griplock (G). Adjust the cables (H) by
pushing the feeder tube.
RIM-PENDANT-REMOTE-DRIVER-POWER-OVER-CABLES-INST.
W W W . L U M E N W E R X . C O M
E
C
G
H
B
October 7, 2019 Page: 1 / 3
