LUMENWERX MIKRO Installation Instructions

MIKRO

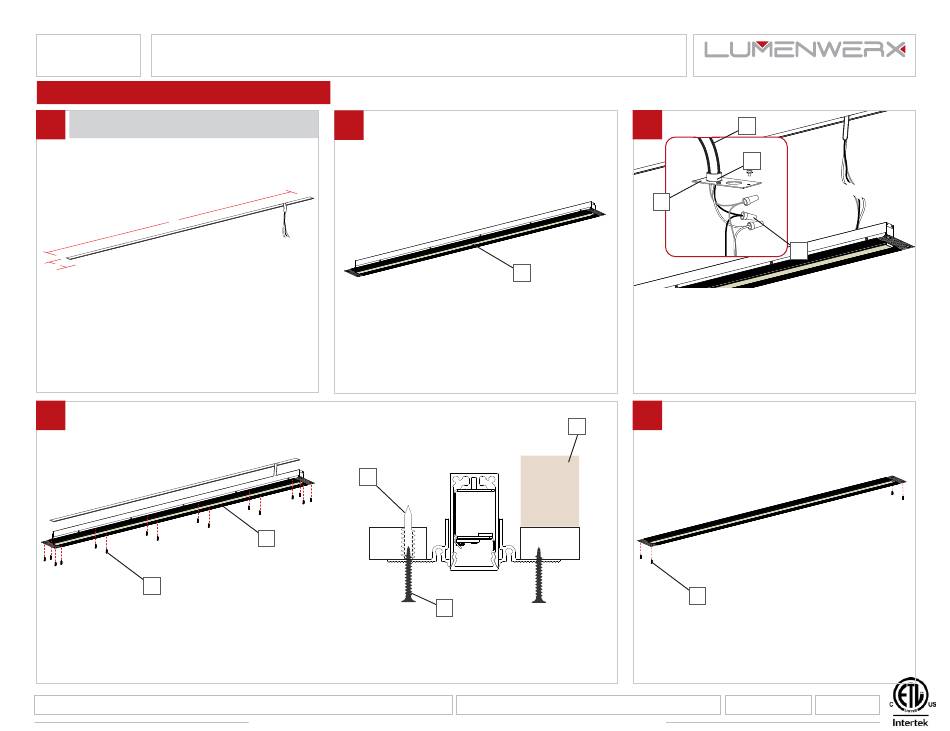

DRYWALL MUD FLANGE - INSTALLATION INSTRUCTIONS
NOTE: Wire dimming conductors as Class 1
1
SINGLE FIXTURE
*
*
Prepare the area where the fixture is going to be
installed. Cut hole in the drywall according to the
dimensions [*] given in the client drawings.
4
F
Fasten drywall screws (F) through the obround
holes of the flanges (G).
www.lumenwerx.com (T) 514-225-4304 (F) 514-931-4862 © All rights are reserved to LumenWerx ULC.
2
Make sure that the lens (A) is installed on the fixture
and protected by a lens cover.
I
G
To reinforce the screws (F) that maintain the fixture
in the drywall, wood blocking (H) or drywall anchors
(I) must be used.
LumenWerx ULC. reserves the right to change or modify product specifications without notification
B
H
F
FILE NAME:MIKRO-DRYWALL-MUD-FLANGE-INST
W W W . L U M E N W E R X . C O M
3
B
C
D
E
Unscrew and remove the power plate. Install power
cable (B) through the connector (C) and install
onto the power plate (D) provided. Make electrical
connections between power cable (B) and fixture
cables using electrical marettes (E). Push wires
inside the fixtures and reinstall the power plate (D)
to the fixture.
5
F
If the fixture position need adjustments, remove
screws (G) on one side of the fixture and adjust it.
Reinstall the screws once the position is settled.
November 12, 2019 Page: 1 / 3
