7.6 Electrical connection

7.6.1 Limit switch

When using unsuitable controllers or direct and / or a faulty supply of current, the
lifting columns can traverse beyond the limit switches and lead to their destruction.
The lifting column is equipped with two internal limits switches.
These interrupt the power supply to the motor when reaching the end positions.
When using controllers that are intended for the lifting columns, the limit switch prevents an
overrunning the maximum lifting height as well as overrunning the lower stop position.

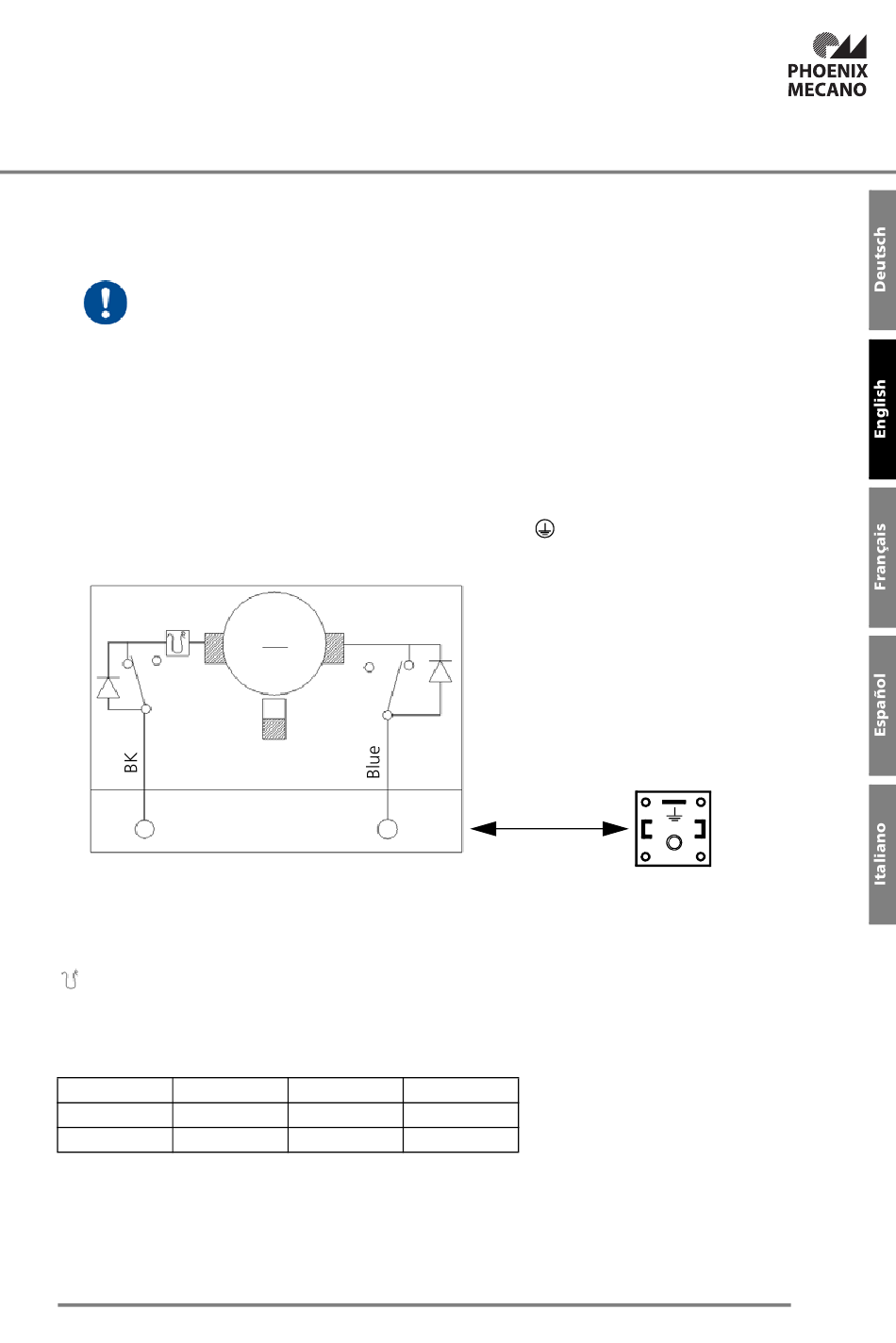

7.6.2 Electrical connection without potentiometer

The Lambda Colonne is installed with a 2-pin device socket +
complies with DIN43650-A / ISO4400.
Thermoswitch
S1
1
S1= Limit switch for traversing direction -extract-
S2= Limit switch for traversing direction -retract-
M= Permanent magnet motor
= Thermoswitch
Motor direction of rotation
The wiring is the responsibility of the customer.
Option Connection 1 Connection 2
1 +
2
M
S2
Linch pin
-
- +
as standard. The socket
2
Direction
Retract
Extract
7. Life phases
