Installation & Operating Manual &
Replacement Parts List
This manual contains important safety information
concerning the maintenance, use and operation of this
product. Failure to follow the instructions contained in this
manual may result in serious injury. If you're unable to
understand the contents of this manual, please bring it to
the attention of your supervisor. Do not operate this
equipment unless you have read and understood the
contents of this manual.
GLO-RAY
GRCMW-1
I&W #07.05.185.00
Este manual contiene importante información sobre
seguridad concerniente al mantenimiento, uso y
operación de este producto. Cualquier falla en el
seguimiento de las instrucciones contenidas en este
manual puede resultar en un serio daño. Si usted no
puede entender el contenido de este manual por
favor pregunte a su supervisor. No opere este
equipo al menos que haya leído y comprendido el
contenido de este manual.
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hatco GLO-RAY GRCMW-1
Summary of Contents for Hatco GLO-RAY GRCMW-1
- Page 1 ® GLO-RAY Merchandising Warmer GRCMW-1 Installation & Operating Manual & Replacement Parts List I&W #07.05.185.00 Este manual contiene importante información sobre This manual contains important safety information seguridad concerniente al mantenimiento, uso y concerning the maintenance, use and operation of this operación de este producto.
-
Page 2: Table Of Contents
® (Summer Hours: June to September – Merchandising Warmer in the spaces below. Please 8:00 a.m. to 5:00 p.m. C.S.T. have this information available when calling Hatco Monday through Thursday for service assistance. 8:00 a.m. to 2:30 p.m. C.S.T. Friday) Model No. -
Page 3: Important Safety Information
Hatco equipment. It cleaning. is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure to... -
Page 4: Model Description

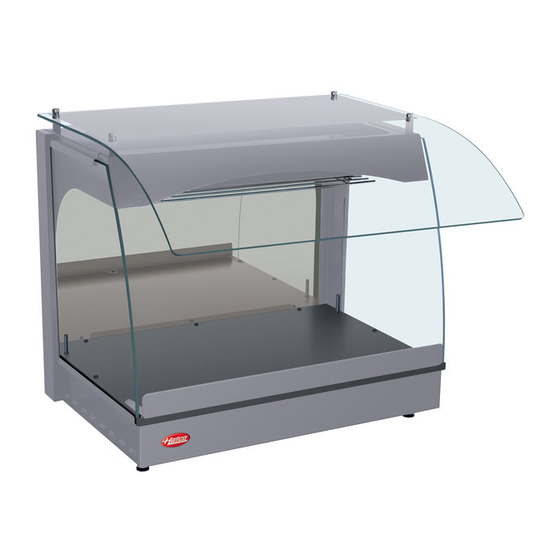

Carefully lift the unit to prevent the rubber feet from tearing off. MODEL DESCRIPTION GRCMW-1 The Hatco GRCMW-1 Merchandising Warmer is ideal for holding cinnamon rolls at customer serving points. The foil blanket base heat temperature is preset at the factory for ideal cinnamon roll warming temperatures. -
Page 5: Specifications
For safe and proper operation plug unit into a NEMA 5-15P properly grounded electrical outlet of the correct Receptacle not supplied by Hatco. voltage, size and plug configuration. If the plug and receptacle do not match, contact a qualified Figure 3. Plug Configuration electrician to determine the proper voltage and size and install the proper electrical outlet. -
Page 6: Installation
INSTALLATION CAUTION UNPACKING To avoid any injury or damage, locate the unit at ® The Glo-Ray Merchandiser is shipped with most the proper counter height, in an area that is components pre-assembled. Care should be taken convenient for use. The location should be level when unpacking shipping carton to avoid damage to to prevent the unit or its contents from unit and components enclosed. -
Page 7: Assembly
(P/N 04.12.325.00) NOTE: Decorative Corian ® pieces are not supplied or installed by Hatco. Installing Back Mirror Glass Panel (See Figure 5) M i r r o r 1. Position the mirror glass panel with the mirror S i d e side of the glass facing the inside of the unit. - Page 8 INSTALLATION ASSEMBLY (CONTINUED) Pan Skirt Installing the Pan Skirt (See Figure 7) Hole Position the two holes on the pan skirt over the base pins located at the rear, inside of the unit. Installing the Breath Protector (See Figure 8) 1.
-
Page 9: Operation
OPERATION GENERAL WARNING Unit is not waterproof. DO NOT submerge in water. Do not operate if it has been submerged in water to avoid injury. WARNING Some exterior surfaces on the unit will get hot. Use caution when touching these areas to avoid injury. -
Page 10: Maintenance
MAINTENANCE CLEANING Removing and Installing Back Mirror Glass Panel Back mirror glass panel is removable for cleaning. The Hatco Glo-Ray ® Merchandising Warmer is designed for maximum durability and performance, 1. Carefully lift and slide the mirror panel up out of with minimum maintenance. -
Page 11: Light Bulb Replacement
Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco NOTE: Hatco shatter-resistant light bulbs meet NSF equipment. -
Page 12: Replacement Parts List
1 = One Level CAUTION - Use of replacement parts other 24 Hour 7 Day Parts & Service Assistance available than those supplied by Hatco Corporation United States Canada may result in damage to the unit or injury to by calling (800) 558-0607. - Page 13 REPLACEMENT PARTS LIST PARTS COMMON TO ALL GRCMW-1 MODELS - 120 Volt ITEM DESCRIPTION PART NO. QTY. Heating Element, 350 Watt, Upper R02.08.306D.00 Wire Guard 04.08.531.00 Lamp Socket with Leads 02.30.051.00 Lamp, Halogen, 60 Watt, Coated 02.30.081.00 Breath Protector with Hardware R04.12.325.00 Pan Skirt 04.19.1272.00...
-
Page 14: Troubleshooting Guide
To avoid any injury or damage the unit must only If service is required on this unit, contact your be serviced by qualified personnel. Authorized Hatco Service Agent, or contact the Hatco Service Department at 800-558-0607 or WARNING 414-671-6350; fax 800-690-2966 or International To avoid any injury, turn the power switch OFF fax 414-671-3976. -
Page 15: Hatco Limited Warranty
One (1) Year Parts and Labor PLUS Four accept or reject any such claim in whole or in part. (4) Years Parts-Only Warranty on Hatco will not accept the return of any Product pro-rated terms that Hatco will explain without prior written approval from Hatco, and all at Buyer’s request:... -
Page 16: Authorized Parts Distributors
HATCO AUTHORIZED PARTS DISTRIBUTORS NEW YORK TEXAS ALABAMA IOWA Acme American Repairs, Inc. GCS Service Jones McLeod Appl. Svc. Electric Motor Service Co. Fort Worth 817-831-0381 Birmingham 205-251-0159 Davenport 319-323-1823 Brooklyn 718-456-6544 Armstrong Repair Service Goodwin Tucker Group Alpro Service Co.
