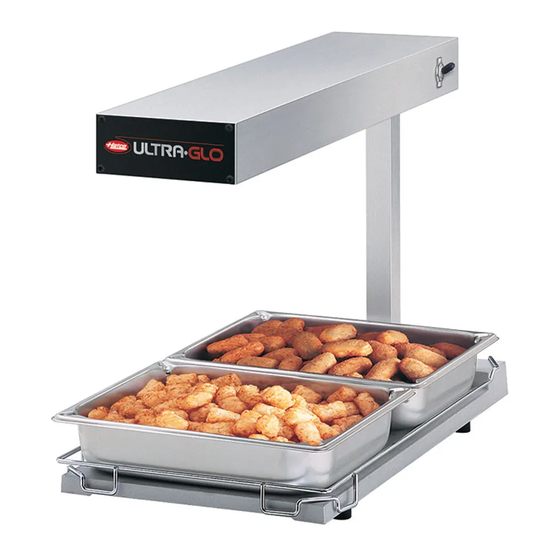

Hatco GRFF Installation And Operating Manual
Portable foodwarmer
Hide thumbs
Also See for GRFF:
- Supplementary manual (4 pages) ,
- Specifications (2 pages) ,
- Installation & operating manual (29 pages)
Table of Contents
Advertisement
Quick Links
GR-B, GRFF & UGFF Series
This manual contains important safety information
concerning the maintenance, use and operation of this
product. Failure to follow the instructions contained in this
manual may result in serious injury. If you're unable to
understand the contents of this manual, please bring it to
the attention of your supervisor. Do not operate this
equipment unless you have read and understood the
contents of this manual.
Glo-Ray
®
Portable Foodwarmer
Installation &
Operating Manual
I&W #07.05.181.00
& Ultra-Glo
ON
CAUT ION
HOT
OFF
RA Y
SIZE
60W.
GL O-
LAMP
RME R
ION MAXI
MUM
FOO DWA
CAUT
U.S.A
.
AUKE
E, WI
. MILW
HATC
O CORP
Este manual contiene importante información sobre
seguridad concerniente al mantenimiento, uso y
operación de este producto. Cualquier falla en el
seguimiento de las instrucciones contenidas en este
manual puede resultar en un serio daño. Si usted no
puede entender el contenido de este manual por
favor pregunte a su supervisor. No opere este
equipo al menos que haya leído y comprendido el
contenido de este manual.
™
CAU TION
HOT
CAU TION
HOT
Advertisement
Table of Contents
Related Manuals for Hatco GRFF
Summary of Contents for Hatco GRFF
- Page 1 Glo-Ray Portable Foodwarmer GR-B, GRFF & UGFF Series Operating Manual This manual contains important safety information concerning the maintenance, use and operation of this product. Failure to follow the instructions contained in this manual may result in serious injury. If you’re unable to understand the contents of this manual, please bring it to the attention of your supervisor.
-
Page 2: Table Of Contents
(identification decal located on the unit), voltage and purchase date of your Portable Foodwarmer in the spaces below. Please have this information available when calling Hatco for service assistance. Model No. ________________________________ Serial No. ________________________________ Voltage __________________________________ Date of Purchase __________________________... -
Page 3: Important Safety Information
Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure to use Hatco Replacement Parts may subject... -
Page 4: Model Designations
MODEL DESIGNATIONS GLO-RAY FRENCH FRY ULTRA-GLO FRENCH FRY Form No. GRPM-0307 GR FF B L Figure 1. Glo-Ray Model Designation UG FF B L Figure 2. Ultra-Glo Model Designation INCANDESCENT LIGHT BASE HEAT INCANDESCENT LIGHT BASE HEAT... -
Page 5: Model Descriptions
GR-B MODELS Hatco GR-B Models have a cast aluminum base with built-in heating element, built-in temperature control, On/Off rocker switch and standard pre-wired 6' (1829 mm) cord and plug. GRFF, GRFFL, GRFFB AND GRFFBL MODELS Hatco GRFF, GRFFL, GRFFB and GRFFBL Models... -
Page 6: Specifications
Height 2-1/4" (57 mm) Interior Height Height 15-7/8" 9-1/8" (403 mm) (232 mm) 15-7/8" 9-1/8" (403 mm) (232 mm) Figure 9. Dimensions–GRFF & GRFFL Models CEE 7/7 Schuko NEMA 5-15P BS 1363 Figure 7. Plug Configurations Figure 8. Dimensions–GR-B Models... - Page 7 Width Depth Models GRFFB 12-3/4" 24" (324 mm) (610 mm) (406-508 mm) (356 mm) GRFFBL 12-3/4" 24" (324 mm) (610 mm) (406-508 mm) (356 mm) † Add 3" (76 mm) to height of unit when using display sign holder. 14" (356 mm) clearance is standard. Optional clearances, not available for retro-fit are 12"...
-
Page 8: Glo-Ray Electrical Rating Chart
SPECIFICATIONS ELECTRICAL RATING CHART-GLO-RAY PORTABLE FOODWARMER MODELS Model Voltage GR-B 220-230 (CE) 230-240 (CE) GRFF 220-230 (CE) 230-240 (CE) GRFFL 220-230 (CE) 230-240 (CE) GRFFB 220-230 (CE) 230-240 (CE) GRFFBL 220-230 (CE) 230-240 (CE) The electrical information in the shaded area pertains to Export Models only. - Page 9 ELECTRICAL RATING CHART-ULTRA-GLO CERAMIC PORTABLE FOODWARMER MODELS Model Voltage UGFF 220-230 (CE) 230-240 (CE) UGFFL 220-230 (CE) 230-240 (CE) UGFFB 220-230 (CE) 230-240 (CE) UGFFBL 220-230 (CE) 230-240 (CE) The electrical information in the shaded area pertains to Export Models only. Watts Amps 630-689...
-
Page 10: Installation
ASSEMBLY GR-B Model Model GR-B is preassembled. Follow unpacking instructions before operating unit. GRFF, GRFFL, UGFF & UGFFL, Models WARNING To avoid the risk of fire the base must be secured to top housing before turning on power. Form No. GRPM-0307... -
Page 11: Operation
NOTICE Damage to countertop material such as Corian and similar products caused by heat generated from Hatco equipment is not covered under the Hatco warranty. Contact the manufacturer of the base material for application information. Figure 15. Assembly of Chrome Pan Rail... -
Page 12: Maintenance
Some aftermarket or generic replacement characteristics that will allow them to operate safely in Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure to use Hatco Replacement Parts may subject operators of the equipment to... -
Page 13: Accessories
SIGN HOLDER The optional 9" (229 mm) width x 5-1/2" (140 mm) height display sign holder is also available for the Portable Foodwarmer used in a self serve area. (Sign not included.) NOTE: Display sign holder is only available on the GRFFL model with toggle switch. -
Page 14: Hatco Limited Warranty
Hatco reserves the right to accept or reject any such claim in whole or in part. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer’s sole expense. - Page 15 NOTES Form No. GRPM-0307...
-
Page 16: Authorized Parts Distributors
Flanders GCS Service Indianapolis 317-545-9655 P.O. Box 340500, Milwaukee, WI 53234-0500 U.S.A. Parts & Service Fax (800) 690-2966 Printed in U.S.A. March 2007 HATCO AUTHORIZED PARTS DISTRIBUTORS NEW YORK Acme American Repairs, Inc. 319-323-1823 Brooklyn Alpro Service Co. 515-262-9308 Brooklyn...
