Connecting mRack DIT to your Mac
mRack DIT features two distinct Thunderbolt buses; one for the RAID and one for the LTO.
Configuration A
For Macs with two Thunderbolt buses (Late 2016 MacBook Pro and Mac Pro cylinder).
Thunderbolt
Bus 1

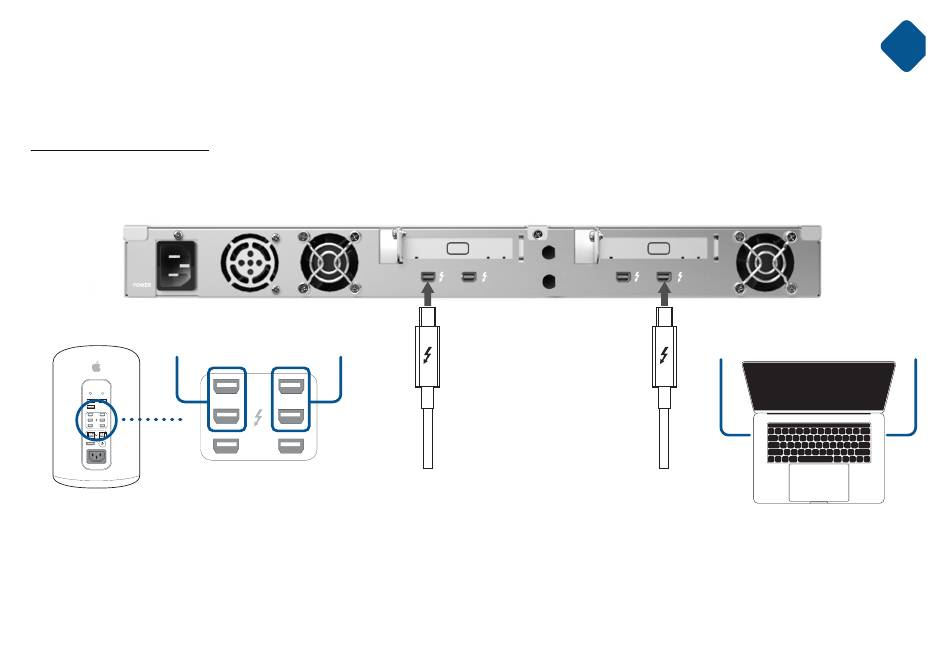

1) Connect the included Thunderbolt cables to your mRack DIT as shown above. Connect the free
ends of the cables to Thunderbolt Bus 1 and Thunderbolt Bus 2 on your Mac as shown above.
2) Attach the included power cord to the power recepticle on the rear of mRack DIT and plug the
other end in to a power outlet.
LTO
Thunderbolt
Bus 2
To Mac Thunderbolt
Bus 1
RAID
Thunderbolt
Bus 1
Bus 2
6
Thunderbolt
Bus 2
