- Page 1 PDF provided by Conference Room AV Altinex MX2106AV 2x1 Auto Sensing VGA Switcher and Distribution Amp...
- Page 2 Note: Input 1 is the default if there are no signals on the inputs. Step 2. Connect the audio/video source or sources to the MX2106AV inputs. If there is a properly formatted input signal on Input 2, the switcher will switch to Input 2 automatically.
- Page 3 +9 VDC, 1.1 A Impedance 75 ohms Optional Accessories Gain 0 +/- 0.5 dB RC5208CC Manual Control Switch Power Consumption Table 1. MX2106AV General External Adapter: 9 VDC 250 mA (2.2 W) Table 3. MX2106AV Electrical Mechanical MX2106AV Material Aluminum Finish...

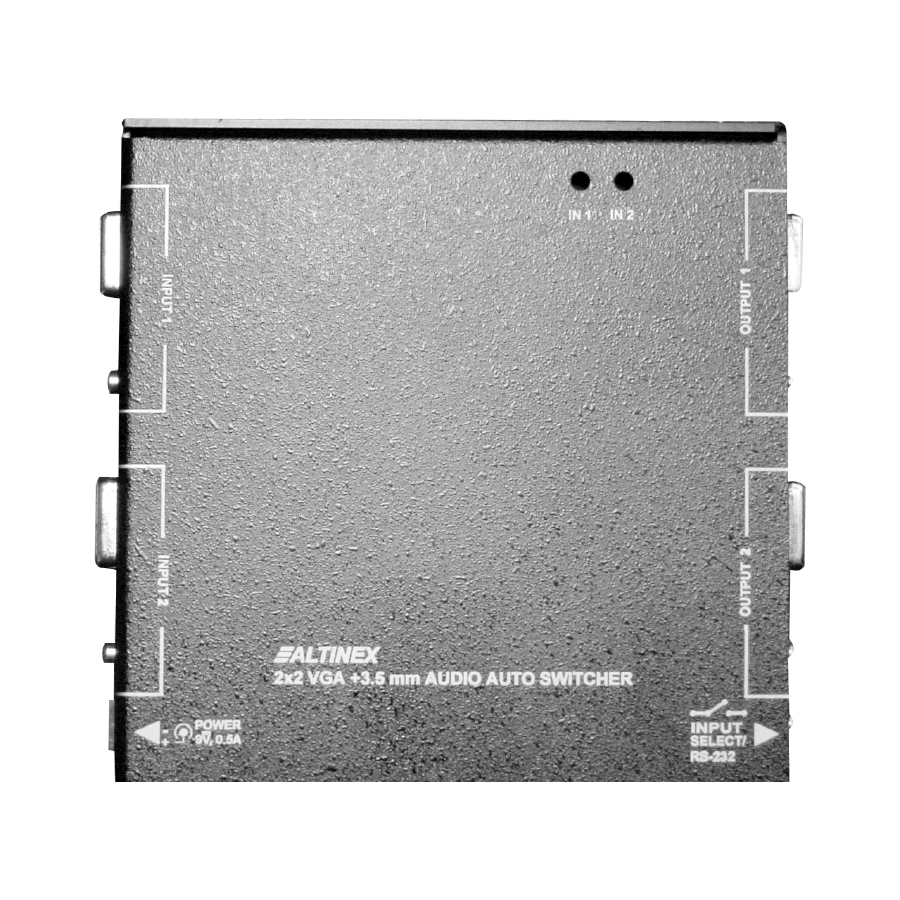

- Page 4 User’s Guide 5. About Your MX2106AV The MX2106AV switches automatically upon signal detection, but may also be controlled manually if desired. The MX2106AV is designed to switch computer video signals and stereo audio. The unit is encased in a solid metal enclosure and ships with an external, 9V 1.1 A power adapter.
- Page 5 MX2106AV MX2106AV MX2106AV MX2106AV User’s Guide 6. Application Diagrams Diagram 1: Typical Setup 400-0365-008...
- Page 6 MX2106AV MX2106AV MX2106AV MX2106AV User’s Guide Diagram 2: Internal View 400-0365-008...
- Page 7 User’s Guide 7. Operation 7.5 Mode/Switching Summary The MX2106AV will operate successfully as long as cables are attached Following is a summary of the input select and output modes. In auto properly and other specifications are followed. The MX2106AV functions switching, the input selected is dependent on the input signals.
-
Page 8: Troubleshooting Guide
The video signal is bad. Solution 1: Remove the input signals from the switcher. If the In 1 LED is off, call ALTINEX at (714) 990-2300. If the In 1 LED is on, see Solution 2. Solution 2: Connect a properly formatted VGA-type signal to Input 2. If the switcher does not switch to Input 2, see Solution 3.
