Configuring RAD-900-IFS with GW MODBUS
TCP/RTU for Modbus TCP Communication
Published: 2018-10-22
Contents
Introduction .................................................................................. 1
Objectives:............................................................................. 1
Requirements: ....................................................................... 2
Procedure .................................................................................... 3
communication ...................................................................... 3
Making the physical connections ........................................ 14
Verifying communication with Modscan32 .......................... 16
Disclaimers and notes ............................................................... 19

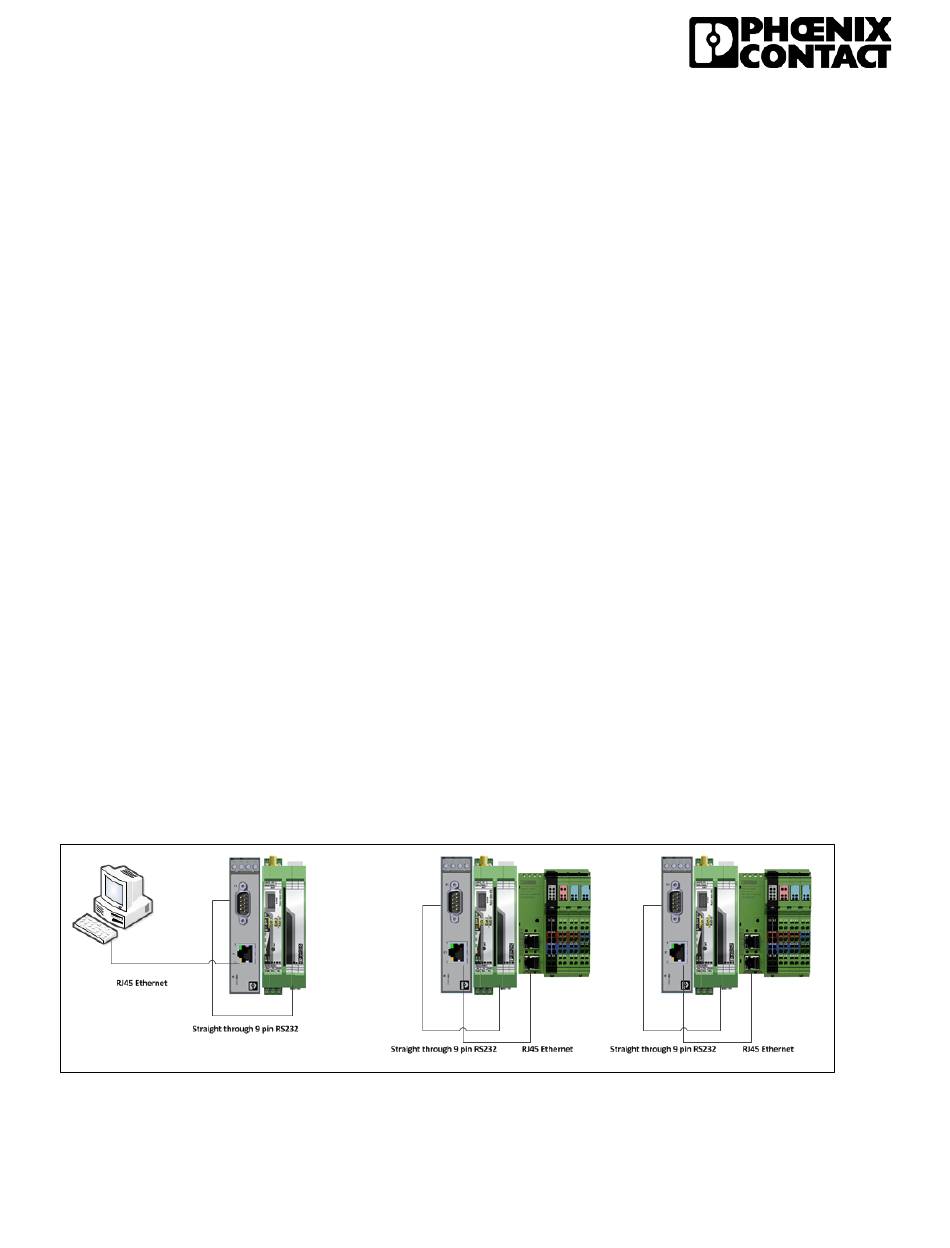

Introduction

Objectives:

This document covers configuring the RAD-900-IFS wireless module and the GW MODBUS TCP/RTU 1E/DB9
for MODBUS TCP to MODBUS TCP communication between a master station and two remote slave locations.
© PHOENIX CONTACT
Phone: 717-944-1300 | Technical Service: 800-322-3225
E-mail: techservice@phoenixcon.com | Website: www.phoenixcontact.com
Page | 1
