Summary of Contents for RotoBed Home

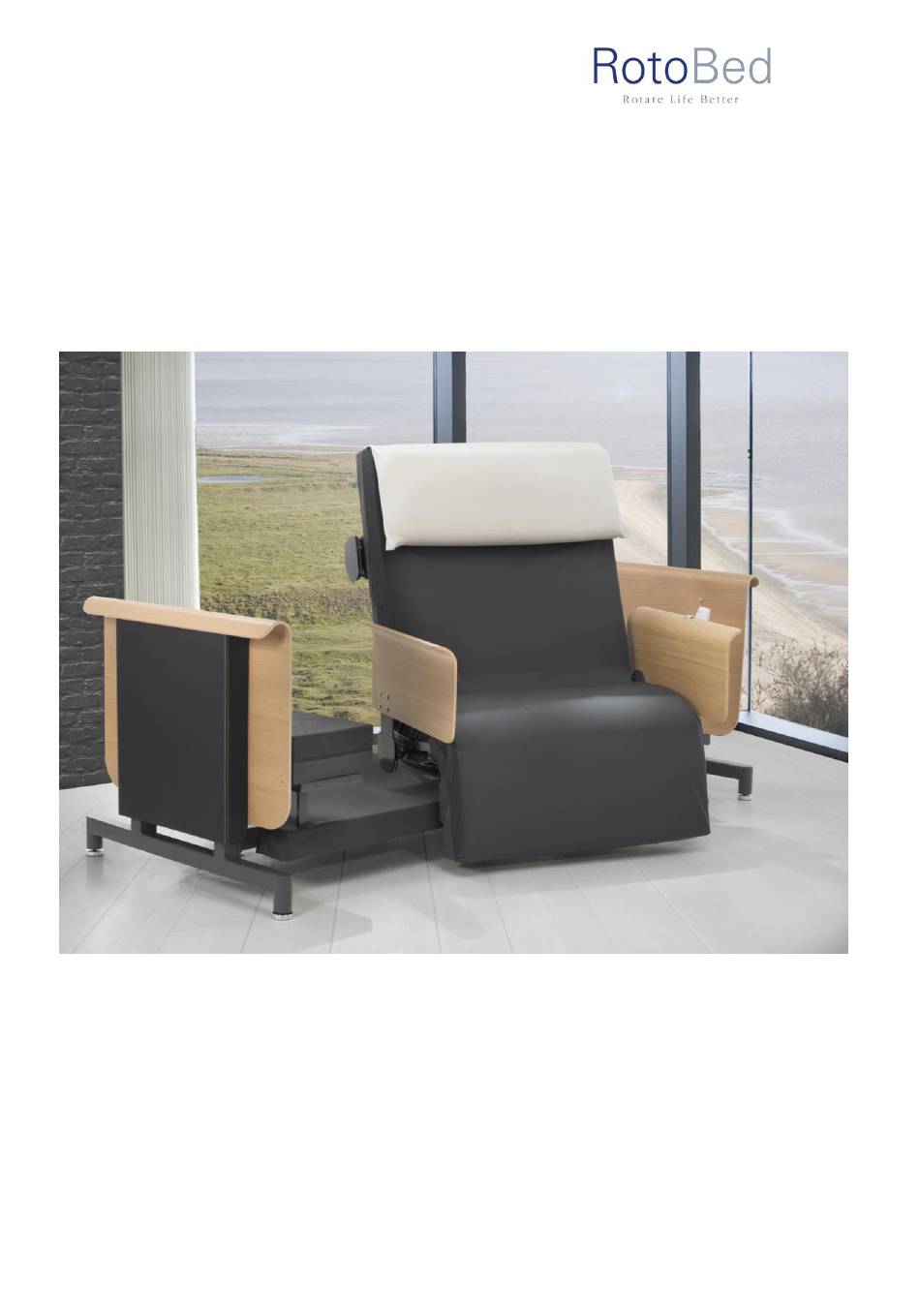

- Page 1 User Manual ®Home...
-
Page 2: Table Of Contents
2.1 Reception……………………………………………………………….. ………… 2.2 Placement…………………………………………………………………………. Commissioning………………………………………………………………….. 3.1 Mounting of mattress.………..…………………………………………………… 3.2 Mounting of side rails………….…………………………………………………. 3.3 Remote control……..…………………………………………………………….. 3.4 Operating RotoBed®Home……………………………………………………… 3.5 Important documents and video material…………………………………………. 9 Intended use……………………..………..…………………………………….. 4.1 Purposes and standards………………………………………………………… 4.2 Maximum load……………………………………………………………. ……… Security……………..…………………………………………………………….. -
Page 3: Introduction And General Information
1. Introduction and general information Thank you for choosing to buy a RotoBed®Home RotoBed® is a high quality product that will serve you as an aid for many years to come with proper use and maintenance. To get the most out of your bed, please read this manual carefully. The same applies to any other persons, such as carers or relatives who are going to operate the bed. -
Page 4: Before Commissioning
2. Before commissioning 2.1. Reception Damage that has occurred during transport must be notified immediately upon delivery. Check that all ordered parts are free of defects at reception. The bed must not be used if there are errors or defects that may cause risks to people. ... -
Page 5: Commissioning
3. Commissioning Mounting of the mattress RotoBed®Home comes with a mattress consisting of a main part and a foot part. The main mattress has 5 buttons on the back. First place the three lower buttons in the grooves at the bottom of the bed. -
Page 6: Remote Control
SLEEPING POSITION CHAIR POSITION RotoBed®Home can rotate either left or right depending on your preference. Therefore, the remote control can be connected to both the right and left sides of the bed. When the remote control is not in use, you can place it on the side rail. -
Page 7: Operating Rotobed®Home
Hold down the Chair Position key until the bed stops in exit position. As standard, RotoBed®Home is set to run to an oblique exit position to facilitate transfer to wheelchair or walker. If you wish a perpendicular exit, do as follows with the bed still inside... - Page 8 Get seated as close to the backrest as possible for the best comfort. Hold down the Sleeping Position key until the bed is rotated and horizontal. Now the RotoBed®Home works like an normal bed with adjustable leg-part and backrest. Exit: Hold down the...
-
Page 9: Important Documents And Video Material
4. Intended use Purposes and standards RotoBed®Home is designed to help users with pain/physical difficulties. It facilitates entry and exit for the user and reduces the workload for relatives in connection with transfers. RotoBed®Home is developed for users in private homes. -
Page 10: Security
Always read the user manual before use and follow the instructions. RotoBed®Home must not be used rotating anything other than the user to which the bed is fitted. The bed should only be used by a user who has sufficient mobility and cognitive understanding to utilize the bed's functions and avoid accidents. -
Page 11: Children
Lifting pole RotoBed®Home can be delivered with a lifting pole to be mounted on the right or left side of the bed's headend. The lifting pole's grip is provided with a roller belt so that the height can be adjusted to the individual user. -
Page 12: Mattresses
Mattresses RotoBed®Home can be delivered with different types of quality foam mattresses with pressure ulcer prevention in stages 2 and 3, as well as a high protection mattress with documented pressure ulcer prevention and treatment in all 4 stages. The mattress will consist of two parts; a main part and a foot part. -
Page 13: Cleaning In Washing System
When cleaning in washing systems, follow the RotoBed® washing instructions. You will find these at www.rotobed.com under downloads. Service and maintenance RotoBed®Home does not require much maintenance, but it will minimize any problems if you keep the bed clean and follow the instructions for use and cleaning. Control of electrical parts ... -
Page 14: Warranty
Warranty RotoBed®Home is a high quality product which is to ensure many years of trouble-free use. If the bed is purchased as new, there is a three year guarantee on the bed. This warranty covers spare parts and repair of defects in the product during this period, unless otherwise stated in the sales agreement. -
Page 15: Life Expectancy
Changes caused by natural aging are not covered by the warranty. Life expectancy RotoBed® Home has an expected lifetime of minimum 10 years depending on maintenance / treatment. The use of beds that are not in good quality- and safety condition can lead to dangerous situations. -
Page 16: Technical Info
Technical info = 0-86° = 0-20° = 0-74° = 0-16,7° WEIGHT AND LOAD User weight max 190 kg Accessories max 35 kg Headboard 22 kg Foootboard 20 kg Frame 104 kg Total weight 146 kg PATIENT SURFACE (4-sectioned with electric setting) Length (mattress) 205-225 cm Width (mattress) -
Page 17: Troubleshooting
Troubleshooting SYMPTOM POSSIBLE CAUSE HANDLING The bed does not respond to the remote control. The remote control is not Plug the remote control into connected to the bed. the control box. Is defect Replace remote control and associated cable. The engine of the bed is not Check that all sockets are adjusted and does not work properly installed and that... -
Page 18: Reset Motors
13. Reset of motors If the bed is not working as expected, it can be reset via the remote control. NB! In the event of disconnection of the motor cable, it may be necessary to reset the system. NB! If the bed is equipped with bed rails, these must be removed before resetting. ... -
Page 19: Guideline For Lubrication
Guideline for lubricating the bed Move the backrest to an upright position. Make sure to fix it before you start removing bolts, otherwise it will fall down. 1) Remove the upper clips 2) Remove the bolt 3) Apply grease (see below right) 4) Insert the bolt and clips again 5) Follow the same procedure with the bolt at the other end of... - Page 20 Raise the leg-part to a horizontal position, find the point where the bolt at the foot-motor is loose. Now follow the same procedure as for lubricating the backrest: 1) Remove the upper clips. 2) Remove the bolt. 3) Apply grease. 4) Reinsert bolt and clips. 5) Follow the same procedure with the bolt at the other end of the motor.
-
Page 21: Accessories
Accessories RotoBed® offers a vast variety of accessories for RotoBed®Home. A large part of these high qulity accessories are specially designed for RotoBed® to ease everyday life even more for the user. ACCESSORIES FOR ROTOBED® HOME 2-layer mattress with proven efficacy in the prevention and treatment of RotoBed®ROHO®... - Page 22 RotoBed®Bedside Table Design by Hans Sandgren Jakobsen Height adjustable and swivelling. Two soft spotlights will turn on whenever the RotoBed® is rotated towards RotoBed®Underbed Light exit position. When the bed is rotated back, lights will go out. Underbed Light is mounted on the bed.
-
Page 23: Type Plate& Symbols
16. Type plate and symbols CE approval User Manual Machiney Directive (EU) 2006/42 EF Be aware, take care. Serial number See accompanying documentation. Maximum user weight Manufacturer Double isolation, no earth wire needed. Rated load For indoor use Manufacturing Date... - Page 24 RotoBed®Home manual ENG vers. 1.0. 02.2020 Original instruction...
