SIM slots

5

USB

6

Ethernet

7

GNSS

8

Power

9

LTE or WLAN

www.netmodule.com

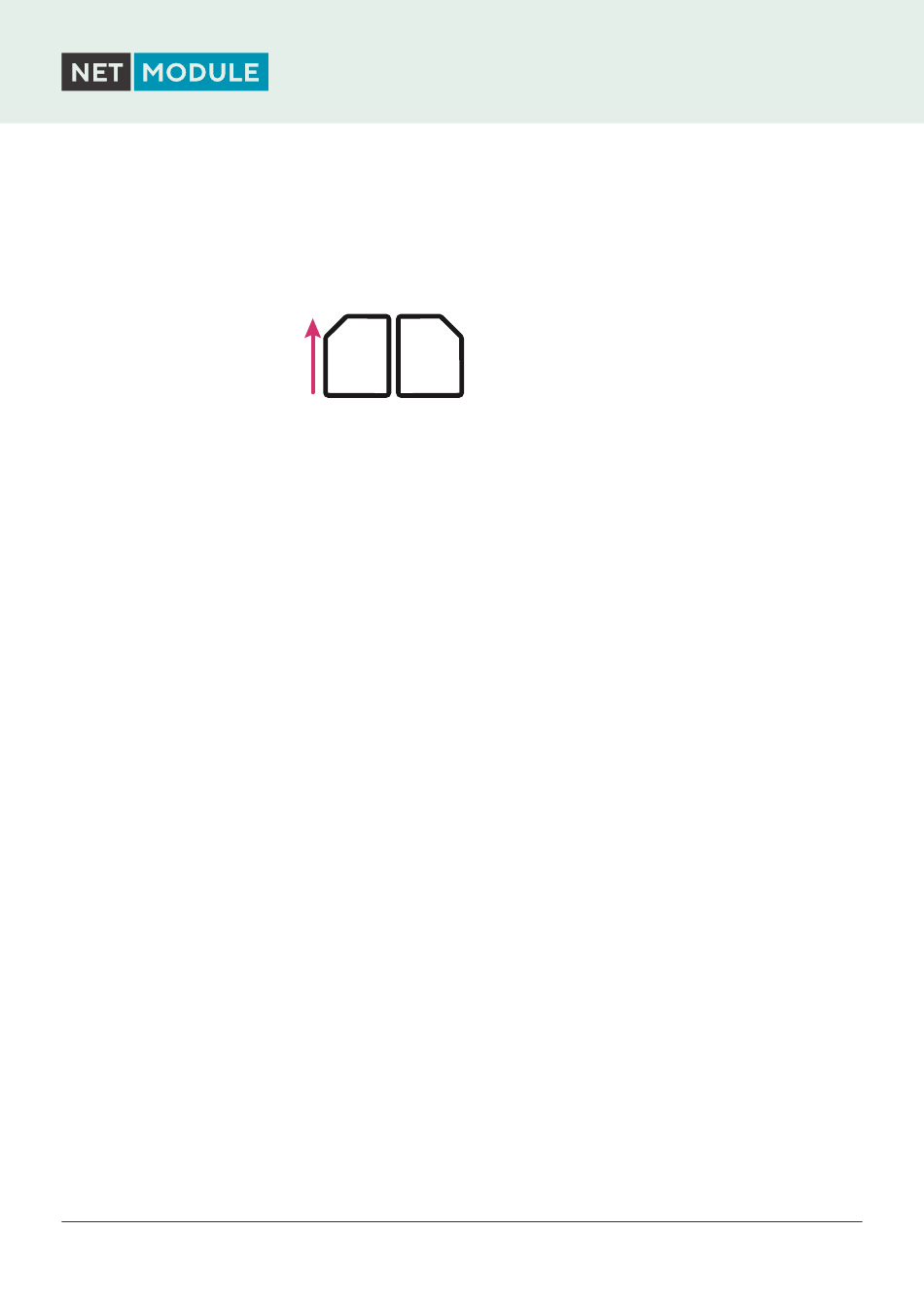

Slots for 4 Mini SIM (2FF) cards. The SIM cards can be
inserted by sliding it into one of the designated slots on the
front panel. Push the SIM cards using a small paper clip (or
similar) until they snap into place. Insert SIM 1 and 2 with
the chip facing down; SIM 3 and 4 with the chip facing up:
SIM 1 SIM 3
SIM 2 SIM 4
To remove the SIM cards, you will need to push them again
in the same manner. The SIM cards will then pop out and
can be pulled out.
USB 2.0 host port.
Connect your router by using the ETH 1 port with your
computer to start the configuration. Your router is
configured as a DHCP server by default and has the IP
address 192.168.1.1. Open this IP in your browser to reach
the WEB-GUI.
TNC female connector for GNSS antenna.
The router can be powered with an external source with
the nominal input voltages 24VDC, 36VDC and 48VDC
or, if the router is equipped with power supply type Pb,
72VDC, 96VDC and 110VDC.
LTE:
— MOB 1: A2 main port, A3 auxiliary port
— MOB 2: A4 main port, A5 auxiliary port
— MOB 3: A6 main port, A7 auxiliary port
— MOB 4: A8 main port, A9 auxiliary port
— MOB 5: A10 main port, A11 auxiliary port
WLAN:
— WLAN 1: A10 main port, A11 auxiliary port
— WLAN 2: A8 main port, A9 auxiliary port
