Memphis Shades MEK1939 Quick Start Manual

HD Road King FLHR,FLHRI,FLHRCI,1994-2010
Bullet FX Fairing, HD Road King
Mounting kit
Detachable system allows easy removal.
Stylish and Functional.
Before assembly, read Warnings inside
WARNING
1. During installation, make sure that the fairing and
hardware do not interfere with any cables or wiring
when the forks are turned all the way in either direction.
Also make sure , through the full range of adjustment,
that the fairing and hardware do not hit the gas tank.
2. This is a detachable fairing, ALWAYS make sure the
locking mechanism is fully engaged after installing the
fairing.
3. The improper installation of this kit and related
components could result in serious injury or death.
CAUTION
1.
Memphis Shades fairings are made from Lucite®
acrylic, and will last for years with proper care. Clean
your fairing with plenty of soapy water (mild dishwash-
ing liquid is best) and a soft cotton cloth. Use your bare
hands to feel and dislodge bugs, or cover with a wet,
soapy towel and let it soak. Don't use paper towels and
scrape with anything. Small scratches can be removed
with NOVUS #2.
2. Never use any glass cleaning products, petroleum
based chemicals, or cleaning agents with ammonia,
bleach or any other harsh chemicals. This includes (but
not limited to) RainX, brake fluid, acetone, paint thinner,
benzene and gasoline. "If it hurts your nose, it will hurt
the plastic."
3. Glass cleansing agents will cause severe damage to
your fairing, and will void your warranty.
4.
At certain times of the day the Sunlight can reflect off
the curvature of a fairing and cause extreme heat build-
up on motorcycle instruments and instrument panel.
Take care when parking. Park facing the sun, place an
opaque object over the instruments or adjust the fairing
to avoid reflections.
Part No. 2320-0085
MEK1939
REVISION 1

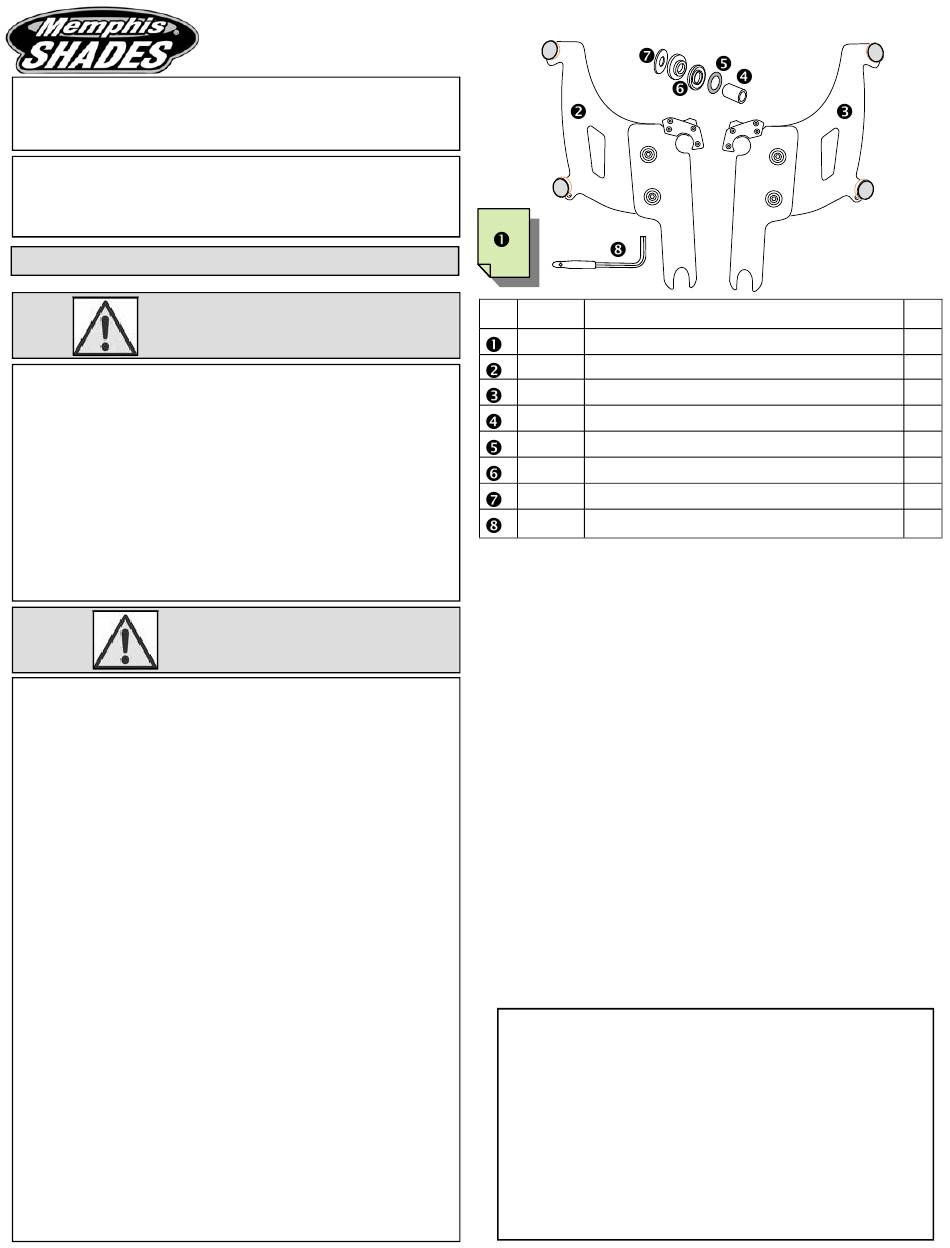

1. Kit Contents

Ref Code Description
I1939 Mounting Instructions
M1468 Clutch side mounting plate
M1469 Throttle side mounting plate
M952 Roadking bushing insert
R324 #207 EPDM O Ring
R323 Bushing assembly (2 piece)
M321 Flat washer
M310 3/16" Short arm allen wrench

2. Mounting Instructions

1. Additional tools required, not included in this kit:
1/2" wrench or socket.
Cover the gas tank and front fender with towels to
2.
avoid damage during installation.
3. Install the two mounting plates onto the fairing, using the
bolts which are pre-assembled to the mounting plates.
The santoprene grommets should be inserted through the
holes in the fairing so that the flat part of the grommet lies
flat on each side of the plastic. The tabs point in towards
the headlight when installed correctly. Fig 1
4.
Remove the top and bottom acorn nut and washer on
each side of the light bar. Fig 2
Memphis Shades warrants all product components, metal
and plastic, against defects in materials and workmanship
for 24 months.
For Parts and Warranty Help, Contact:
Memphis Shades, Inc.
P.O. Box 429
Rossville, TN 38066
(901) 853 0293
Visit us on the web at www.memphisshades.com or you
can also reach us by email:
customerservice@memphisshades.com
Qty
1
1
1
4
4
4
4
1
