Memphis Shades MEK1937 Quick Start Manual

Yamaha Roadliner / Stratoliner 2006- 2010
MS Batwing Fairing
Mounting kit
Detachable system allows easy removal.
Stylish and Functional
Before assembly, read Warnings inside
WARNING
1. During installation, make sure that the fairing and
hardware do not interfere with any cables or wiring
when the forks are turned all the way in either direction.
Also make sure , through the full range of adjustment,
that the fairing and hardware do not hit the gas tank.
2. This is a detachable fairing, ALWAYS make sure the
locking mechanism is fully engaged after installing the
fairing.
3. The improper installation of this kit and related
components could result in serious injury or death.
CAUTION
1.
Memphis Shades fairings are made from Lucite®
acrylic, and will last for years with proper care. Clean
your fairing with plenty of soapy water (mild dishwash-
ing liquid is best) and a soft cotton cloth. Use your bare
hands to feel and dislodge bugs, or cover with a wet,
soapy towel and let it soak. Don't use paper towels and
scrape with anything. Small scratches can be removed
with NOVUS #2.
2. Never use any glass cleaning products, petroleum
based chemicals, or cleaning agents with ammonia,
bleach or any other harsh chemicals. This includes (but
not limited to) RainX, brake fluid, acetone, paint thinner,
benzene and gasoline. "If it hurts your nose, it will hurt
the plastic."
3. Glass cleansing agents will cause severe damage to
your fairing, and will void your warranty.
4.
At certain times of the day the Sunlight can reflect off
the curvature of a fairing and cause extreme heat build-
up on motorcycle instruments and instrument panel.
Take care when parking. Park facing the sun, place an
opaque object over the instruments or adjust the fairing
to avoid reflections.
Part No. 2321-0171
MEK1937
REVISION 0

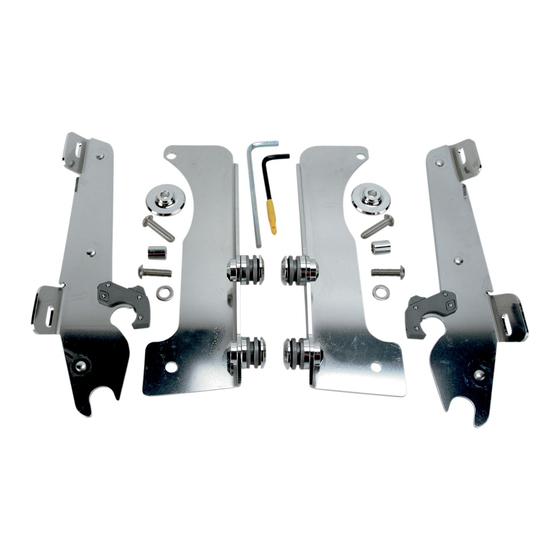

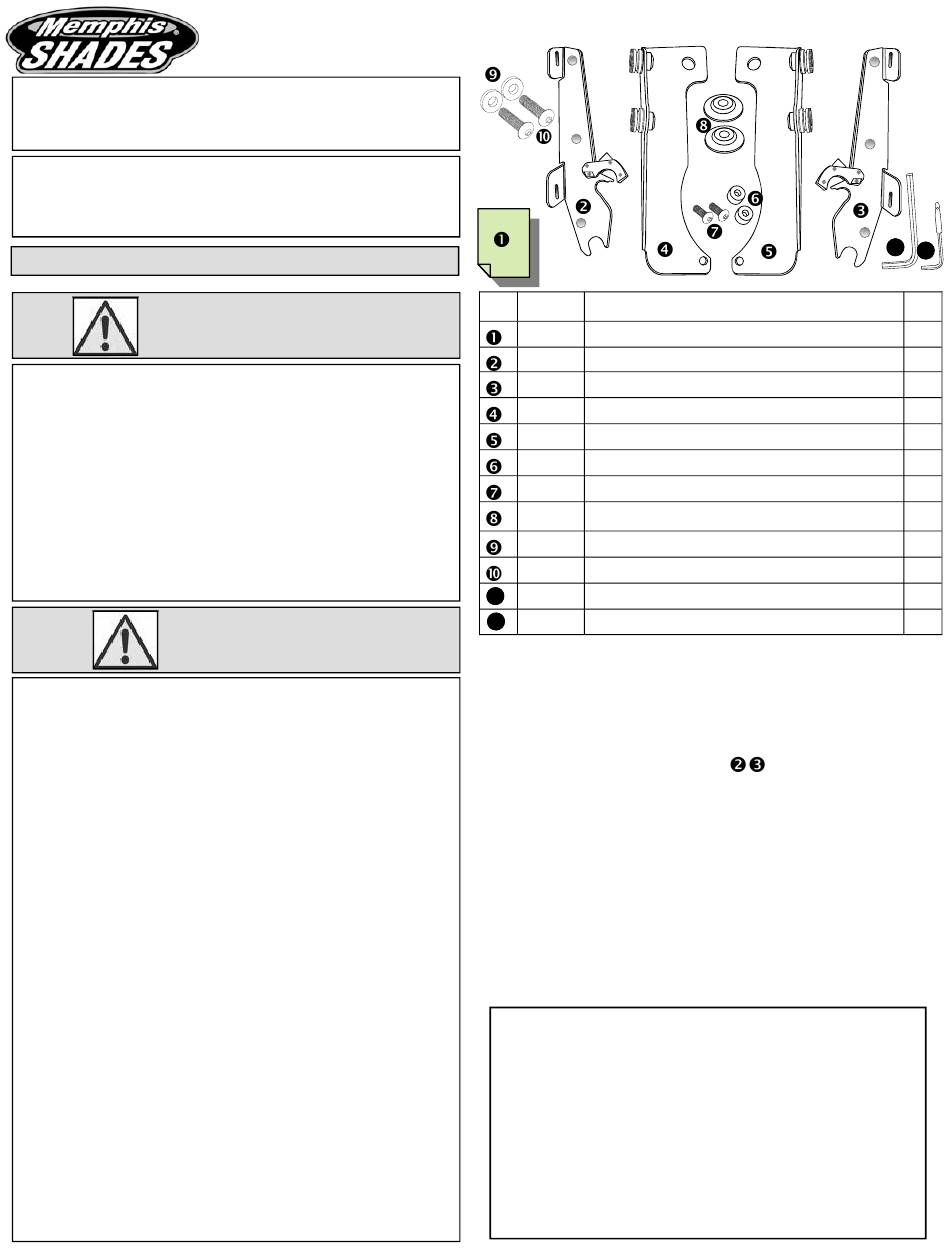

1. Kit Contents

Ref Code Description
I1937

Mounting Instructions

M1278 Throttle side plate assembly
M1277 Clutch side plate assembly
M1088 Throttle side bracket assembly
M1087 Clutch side bracket assembly
R319 1/2" diameter spacer
M366 8mm x 30mm Button head cap screw
R320 1 1/2" Support spacer
R312 8mm Flat washer
M1450 8mm x 25mm Button head cap screw
R306 5mm Long arm allen wrench
11
M310 3/16 Short arm allen wrench
12
2. Mounting Instructions
Additional tools required that are not included in this kit.
7/16" or 11mm Wrench.
1. Cover gas tank and front fender with towels to avoid dam-
age during installation.
2. Install the two mounting plates
the black washer and acorn nut supplied with the fairing.
( Fig 1). Tabs point in towards the headlight.
3. On the Roadliner, use the 5mm Allen wrench, locate and
remove the two upper allen head bolts, one on each side of
the headlight. (Fig 2)
4. On the Stratoliner, remove the OEM windshield and
mounting hardware.
Memphis Shades warrants all product components, metal
and plastic, against defects in materials and workmanship
for 24 months.
For Parts and Warranty Help, Contact:
Memphis Shades, Inc.
P.O. Box 429
Rossville, TN 38066
(901) 853 0293
Visit us on the web at www.memphisshades.com or you
can also reach us by email:
customerservice@memphisshades.com
11
12
Qty
1
1
1
1
1
2
2
2
2
2
1
1
onto the fairing using
continued over....
