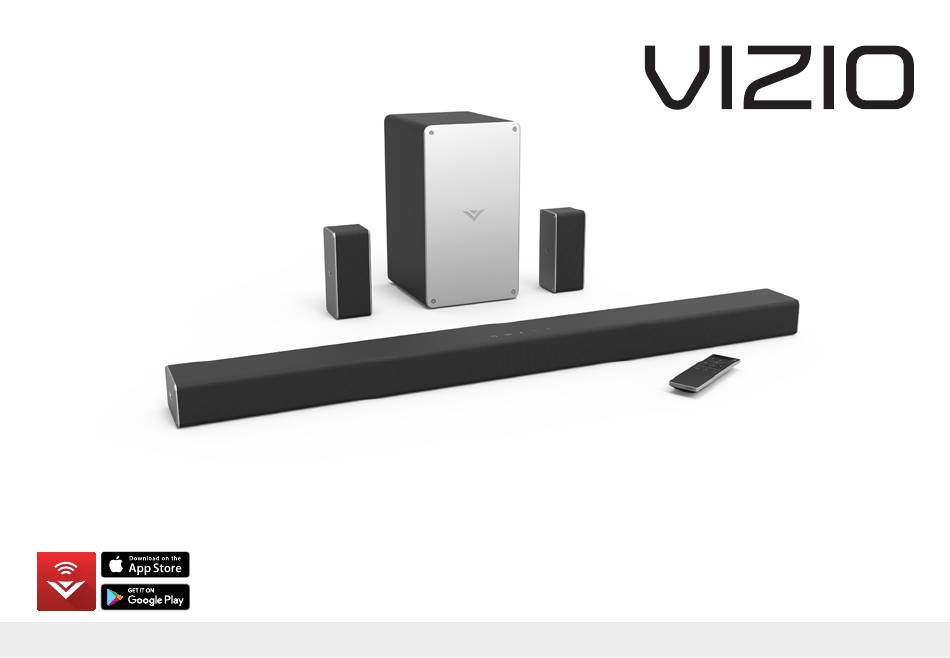

- Page 1 QUICK START GUIDE Download the Free Model: R-SB3651-E6 VIZIO SmartCast ™ to get started REFURBISHED VIZIO SmartCast™ Wireless Sound Bar Please read this guide before using the product.
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Uni from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit.
- Page 3 exposure to loud noises, ears may become accustomed to the sound level, which may result in permanent damage to hearing without any noticeable discomfort. • When connected to a power outlet, power is always flowing into your Unit. To totally disconnect power, unplug the power cord •...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Controls & Connections ..........................6 First-Time Setup...............................10 Using the Remote ............................17 LED Indicators ..............................18 Using your tablet or smartphone as a remote .....................21 Minimum Recommended Requirements....................22 Pairing your smartphone or tablet ........................23 How to Cast Audio ............................24 Selecting a SmartCast device .........................25 Creating an Audio Group ..........................26 Bluetooth Audio Pairing ..........................28... - Page 5 QUICK START GUIDE Mount Screws Download the Free Model: SB3651-E6 VIZIO SmartCast ™ to get started VIZIO SmartCast™ Wireless Sound Bar Brackets Please read this guide before using the product. 2 x Power Cables Quick Start Guide English - 5...
-
Page 6: Controls & Connections
8. ALL SUBSTANCE NEED TO MEET THE ROHS / REACH REQUIREMENTS. DETAILS REFER TO ZYLUX'S PROCEDURE "QMI-P40-01". VIZIO ± 9. WILL USE 0.05MM INNER DIAMETER FOR THE SCREW WHICH NOT SPECIFIED THE DETAILED DIMENSION. VIZIO SB3651-E6 39 Tesla Irvine, CA 92618 MODEL.: SHEET WWW.VIZIO.COM SB3651-E6 TS-0000058AA DATE: 12-01-2016 MODEL.:... - Page 7 8. ALL SUBSTANCE NEED TO MEET THE ROHS / REACH REQUIREMENTS. DETAILS REFER TO ZYLUX'S PROCEDURE "QMI-P40-01". VIZIO ± 9. WILL USE 0.05MM INNER DIAMETER FOR THE SCREW WHICH NOT SPECIFIED THE DETAILED DIMENSION. VIZIO SB3651-E6 MODEL.: Manufactured under license from Dolby Laboratories. SHEET SB3651-E6 TS-0000058AA DATE: 12.01.2016 MODEL.:...
- Page 8 Volume Increase Power Press to turn or decrease the sound bar on or off loudness of the audio. Input Press to Bluetooth Input change the audio Hold to pair. source. (See ‘Bluetooth Pairing’ for more information.) Top of Sound Bar English - 8...
- Page 9 Back of Subwoofer Back of Satellite Speaker LED Indicator Power Switch Satellite Speaker Port (Connects to subwoofer) Pairing Button Power Port Satellite Speaker Ports Connects to Left(blue cable)/Right (gray cable) Satellite Speakers English - 9...
-
Page 10: First-Time Setup
8. ALL SUBSTANCE NEED TO MEET THE ROHS / REACH REQUIREMENTS. DETAILS REFER TO ZYLUX'S PROCEDURE "QMI-P40-01". VIZIO ± 9. WILL USE 0.05MM INNER DIAMETER FOR THE SCREW WHICH NOT SPECIFIED THE DETAILED DIMENSION. VIZIO SB3651-E6 MODEL.: SHEET SB3651-E6 DATE: 12-01-2016 MODEL.: TS-0000058AA TITLE. - Page 11 8. ALL SUBSTANCE NEED TO MEET THE ROHS / REACH REQUIREMENTS. DETAILS REFER TO ZYLUX'S PROCEDURE "QMI-P40-01". VIZIO ± 9. WILL USE 0.05MM INNER DIAMETER FOR THE SCREW WHICH NOT SPECIFIED THE DETAILED DIMENSION. VIZIO SB3651-E6 MODEL.: SHEET SB3651-E6 TS-0000058AA DATE: 12.01.2016 MODEL.: TITLE.
- Page 12 8. ALL SUBSTANCE NEED TO MEET THE ROHS / REACH REQUIREMENTS. DETAILS REFER TO ZYLUX'S PROCEDURE "QMI-P40-01". VIZIO ± 9. WILL USE 0.05MM INNER DIAMETER FOR THE SCREW WHICH NOT SPECIFIED THE DETAILED DIMENSION. VIZIO SB3651-E6 MODEL.: SHEET SB3651-E6 DATE: 12-01-2016 TS-0000058AA MODEL.: TITLE.
- Page 13 Connect the satellite speakers to the subwoofer using the included satellite speaker audio cables. Match the color coded speaker cable to the matching speaker port color. Blue for left surround and gray is for right surround. English - 13...
- Page 14 Connect a power cable to the subwoofer. Plug the power cable into a power outlet. Press the power button to turn on the subwsoofer. The LED indicator will illuminate. The subwoofer should automatically power on when plugged in. English - 14...
- Page 15 For the best surround sound experience, position the sound bar, subwoofer, and satellite speakers as shown. The sound bar should be close to ear level. Left surround speaker Subwoofer Sound bar is centered below the TV. Right surround speaker Note: Speaker stands not included. Do not block the subwoofer ports.
- Page 16 Insert batteries and gently slide the sliding it away from the remote. battery cover back into place. When needed, VIZIO recommends Duracell ‘AAA’ alkaline batteries. Turn on your TV and sound bar. The sound bar will automatically begin searching for an active input.* The LED indicators on the front of the sound bar will begin cycling in pairs through inputs until an audio source is detected.**...
-
Page 17: Using The Remote
USING THE REMOTE Display Displays Sound Bar Settings Power Press to turn on or off Menu Press to access the menu Input settings. *Press to change the input Enter/Play/Pause source Press to select an option. Press to play or pause. Previous Press to return to previous track. -
Page 18: Led Indicators
Press the Enter button on the remote. The sound bar will be discoverable for 15 Bluetooth Pairing device) minutes. You can now search for the sound bar (VIZIO SB3651*) using your Bluetooth Flash from Bottom Device. The sound bar will power down if no device is found. - Page 19 Function LED Behavior Description Surround Balance Two center LEDs Press the Next/Previous button to increase/decrease the surround balance level on each Surr Bal indicate Surround side. The LED indicators will move to the top with balance levels to the right and down Balance is centered.
- Page 20 Press the Next/Previous button to enable/disable VIZIO TV Remotes. When enabled TV Remote On (On), you can use a VIZIO TV remote control to turn on the sound bar (using the TV VZtv Rmt Volume Up button) and control volume.
-
Page 21: Using Your Tablet Or Smartphone As A Remote
Download the VIZIO SmartCast app and turn your smartphone or tablet into a remote to control your sound bar system. To use your smartphone or tablet as your VIZIO SmartCast Remote: • Download the VIZIO SmartCast app on your compatible smartphone or tablet and follow the on-screen instructions to pair your device with a VIZIO SmartCast Sound Bar System. -
Page 22: Minimum Recommended Requirements
† iOS* • iOS 9.0 or later • Devices supported: iPhone, iPad The VIZIO SmartCast app is available for download from the Google Play Store and Apple App Store. *Subject to change **To use the Bluetooth LE functionality you must have Android 5.1 or later https://support.google.com/googleplay/answer/1727131... -
Page 23: Pairing Your Smartphone Or Tablet
To pair your smartphone or tablet with your VIZIO SmartCast Sound Bar for the first time 1. Install the VIZIO SmartCast app. 2. Launch the VIZIO SmartCast app on your smartphone or tablet and ensure the Sound Bar is on. 3. When prompted with Set up a New SmartCast Device window, select Setup to confirm From the VIZIO SmartCast app, tap on the button in the top left corner. -
Page 24: How To Cast Audio
Streaming audio content to your sound bar is as simple as tapping an icon on your favorite app. 1. Ensure your mobile device is on the same Wi-Fi network as your VIZIO SmartCast™ sound bar and open a Chromecast-enabled app, such as Pandora*. -
Page 25: Selecting A Smartcast Device
To select a different SmartCast device 1. On the Home screen of the VIZIO SmartCast app, tap This Device to reveal a list of available devices. 2. Tap to select a new device to control. Make sure the newly selected SmartCast device is turned on. -
Page 26: Creating An Audio Group
With Chromecast built-in, the multi-room playback capability allows you to create audio groups and cast different music or the same music to multiple sound bars at the same time. Prior to creating an audio group, ensure all devices were set up using the VIZIO SmartCast App and are powered on. To create an audio group: Install and open the Google Home App. - Page 27 8. ALL SUBSTANCE NEED TO MEET THE ROHS / REACH REQUIREMENTS. DETAILS REFER TO ZYLUX'S PROCEDURE "QMI-P40-01". VIZIO ± English - 27 9. WILL USE 0.05MM INNER DIAMETER FOR THE SCREW WHICH NOT SPECIFIED THE DETAILED DIMENSION. VIZIO SB3651-E6 MODEL.: SHEET...
-
Page 28: Bluetooth Audio Pairing
Once the device is paired, the LED Indicators will stop flashin . You can now search for the sound bar (VIZIO SB3651*) using your Bluetooth device. For more information, refer to the user documentation that came with the device. -
Page 29: Using Bluetooth Mode
USING BLUETOOTH MODE Your sound bar supports music streaming from smartphones, tablets, and computers with Bluetooth capability. Device compatibility will vary, see your device’s documentation for more information. Once you have paired your source device to the sound bar, as long as you stay within range of the sound bar, your device should remain paired. -
Page 30: Advanced Setup
VIZIO WHICH NOT SPECIFIED THE DETAILED DIMENSION. 9. WILL USE ± 0.05MM INNER DIAMETER FOR THE SCREW MODEL.: VIZIO SB3651-E6 WHICH NOT SPECIFIED THE DETAILED DIMENSION. VIZIO SB3651-E6 39 Tesla Irvine, CA 92618 MODEL.: Manufactured under license from Dolby Laboratories. -
Page 31: Connecting With Hdmi
The following steps are for use with a VIZIO TV, steps may differ by TV manufacturer. See your V’s user manual for more information. CEC Function naming may differ by TV manufacturer. See your TV’s user manual for more info mation. -
Page 32: Advanced Setup - Hdmi
VIZIO these devices, turn the sound bar ± 9. WILL USE 0.05MM INNER DIAMETER FOR THE SCREW HDMI CABLE WHICH NOT SPECIFIED THE DETAILED DIMENSION. VIZIO SB3651-E6 MODEL.: on, then set the sound bar input SHEET 12.01.2016 SB3651-E6 TS-0000058AA DATE: MODEL.:... -
Page 33: Re-Linking The Subwoofer With The Sound Bar
RE-LINKING THE SUBWOOFER WITH THE SOUND The subwoofer has already been paired with the sound bar by VIZIO. However, they may need to be re-linked if there is no sound coming from the subwoofer. Turn off your TV speakers when programming your sound bar. -
Page 34: Using Button Combinations
Note: This will erase all settings and preferences that you have set. Enable VIZIO VIZIO TV Enable/disable the use of a VIZIO TV remote control to power on and TV Remote Remote adjust the volume of the sound bar. To enable/disable this function,... -
Page 35: Programming The Sound Bar
PROGRAMMING THE SOUND BAR You can program your sound bar to accept TV remote IR commands. Press the Menu button on the remote, then use the Up/Down buttons to navigate to Prg Remote. Use the Next/Previous buttons to toggle through Learn Vol -, Learn Vol +, and Learn Mute. -
Page 36: Wall-Mounting The Sound Bar
0.05MM INNER DIAMETER FOR THE SCREW "QMI-P40-01". VIZIO WHICH NOT SPECIFIED THE DETAILED DIMENSION. 9. WILL USE ± 0.05MM INNER DIAMETER FOR THE SCREW MODEL.: VIZIO SB3651-E6 WHICH NOT SPECIFIED THE DETAILED DIMENSION. MODEL.: VIZIO SB3651-E6 SHEET SB3651-E6 TS-0000058AA DATE: 12.01.2016... - Page 37 Be sure your screws are attached to wood studs, drywall anchors (for drywall), or concrete anchors (for brick/concrete walls). Screws for attaching the brackets to the wall are not included. Choose the screw type and length appropriate to your home’s construction. If in doubt, consult a professional installer. *Bracket Screw Not Included with sound bar Wall Mount Screw...
-
Page 38: Wall-Mounting The Satellite Speakers
WALL-MOUNTING THE SATELLITE SPEAKERS To wall-mount the satellite speakers: Attach the wall mount screw to the back of *Bracket Screw the satellite speaker. Not Included Secure the wall mount bracket to the wall. Bracket screw is not included. Slide the speaker on to the wall bracket. Ensure the wall mount screw is secured within the bracket grooves. - Page 39 Award-Winning Customer Care At Your Convenience. NEED HELP? Go to: support.vizio.com Find help with: roduct setup • Connecting your devices • Technical problems • Product updates and more • Live chat support available You can also contact our popular support team at:...
- Page 40 Take A Moment To Register Your Product At ARCAUGUSTA.COM/Register-My-Product.htm Why Register? Warranty Support To obtain warranty support, your product must be registered. Safety & Satisfaction Stay up to date with important product updates and notifications. REGISTER YOUR VIZIO PRODUCT NOW...
-
Page 41: Help & Troubleshooting
HELP & TROUBLESHOOTING Press the POWER button on the remote control or on the top of your Sound Bar. • There is no power. • Ensure the power cord is securely connected. • Plug a different device into the electrical outlet to verify th t the outlet is working correctly. Increase the volume. -
Page 42: Limited Warranty
Specifications Sound Bar: Two 2.8" Full Range Driver for Each Channel (1 for left, 1 for right) One 2.6" Full Range Driver for Center Channel Satellite Two 2.8" Full Range Driver for Each Speakers: Subwoofer: One 5.2" Full Range Driver Conexiones: One 3.5mm Stereo Audio One Optical (Toslink) -
Page 43: Legal & Compliance
LEGAL & COMPLIANCE FCC Class B Radio Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 44 Image(s) used under license from Shutterstock.com This Quick Start Guide may not be copied in whole or in part without the written permission of VIZIO, Inc. VIZIO, Inc. has made reasonable efforts to ensure the accuracy of the information provided herein. All product specifications, functionality, features, configurations, performance, design and other product information described herein are subject to change without notice.
- Page 45 Minimum requirements: Android 4.0 or later (to use the bluetooth functionality you must have Android™ 5.1 or later) iOS 9.0 or later. Subject to change. For a list of Android™ supported devices see HTTPS://Support.Google.com/GooglePlay/Answer/1727131?HL=EN Article. iOS devices supported: iPhone, iPad. Manufactured under license from Dolby Laboratories.
- Page 46 © 2017 VIZIO INC. ALL RIGHTS RESERVED. 170120AD-US...
