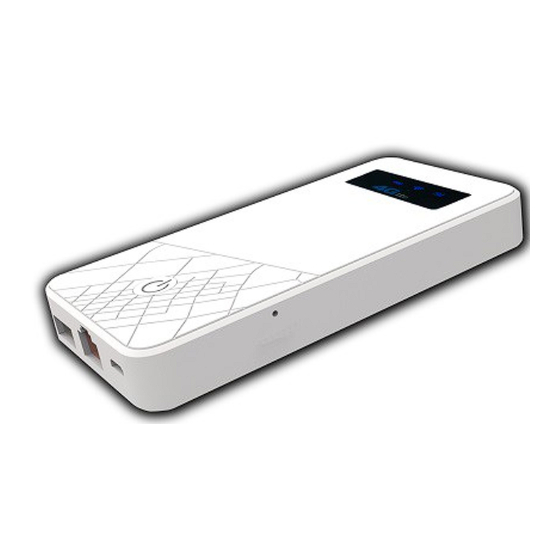

4g mifi router
Hide thumbs Also See for WNAP4G:

Advertisement

Available languages

Available languages

Quick Links

More information, guides and updates can be found from Internet
Package includes:
- 4G MiFi –router
- USB -cable
Ports / Slots:
1.
SIM card slot: Insert your SIM card to this slot.
2.
USB port: Use this port to charge your mobile phone.
3.
LAN / WAN port: Connect your computer to this port by
Ethernet cable.
4.
microUSB port: Charge device battery with this port.
Buttons:
1.
Power button: Turn device power ON and OFF by press this
button over 3seconds. Double click this button will
activate/deactivate the USB power bank function.
2.
Reset hole: Reset device to the factory defaults.
4G MiFi router
Quick Installation Guide
- Installation guide
http://www.a-link.com
Front panel led's/functions:
1.
LAN/WAN Ethernet LED:
Flashing = Ethernet port have data transfer
ON = Ethernet port connected
OFF = Ethernet port disconnected
2.
Battery LED:
Red = Battery capacity low
Blue = Battery capacity at medium status
Green = Battery capacity full
Flashing = Device battery is charging
3.
WiFi LED:
Flashing = Wireless network have data transfer
ON = Wireless network activated
OFF = Wireless network turned off
4.
4G/3G LED:
Light Blue: Connected to 4G network
Blue: Connected to 3G network, WAN or WISP
Red flash slowly: Alarms on 4G/3G connection
Red flash quickly: Device have problems
Blue flash quickly: Dialing up 4G/3G network
Purple flash slowly: PIN code enabled on SIM card.
(Disable PIN code from SIM card or type PIN code to MiFi)
Purple flash quickly: Software upgrade in proceed
Installation requirements:
-
Place the product to horizontal and flat base
-
Keep the product away from heating devices
-
Do not keep product in dusty or wet place
