A-Link wnap4g Quick Installaion Manual

More information, guides and updates can be found from Internet
Package includes:
- WNAP4G –router
- Power adapter
- Installation guide
- USB -cable

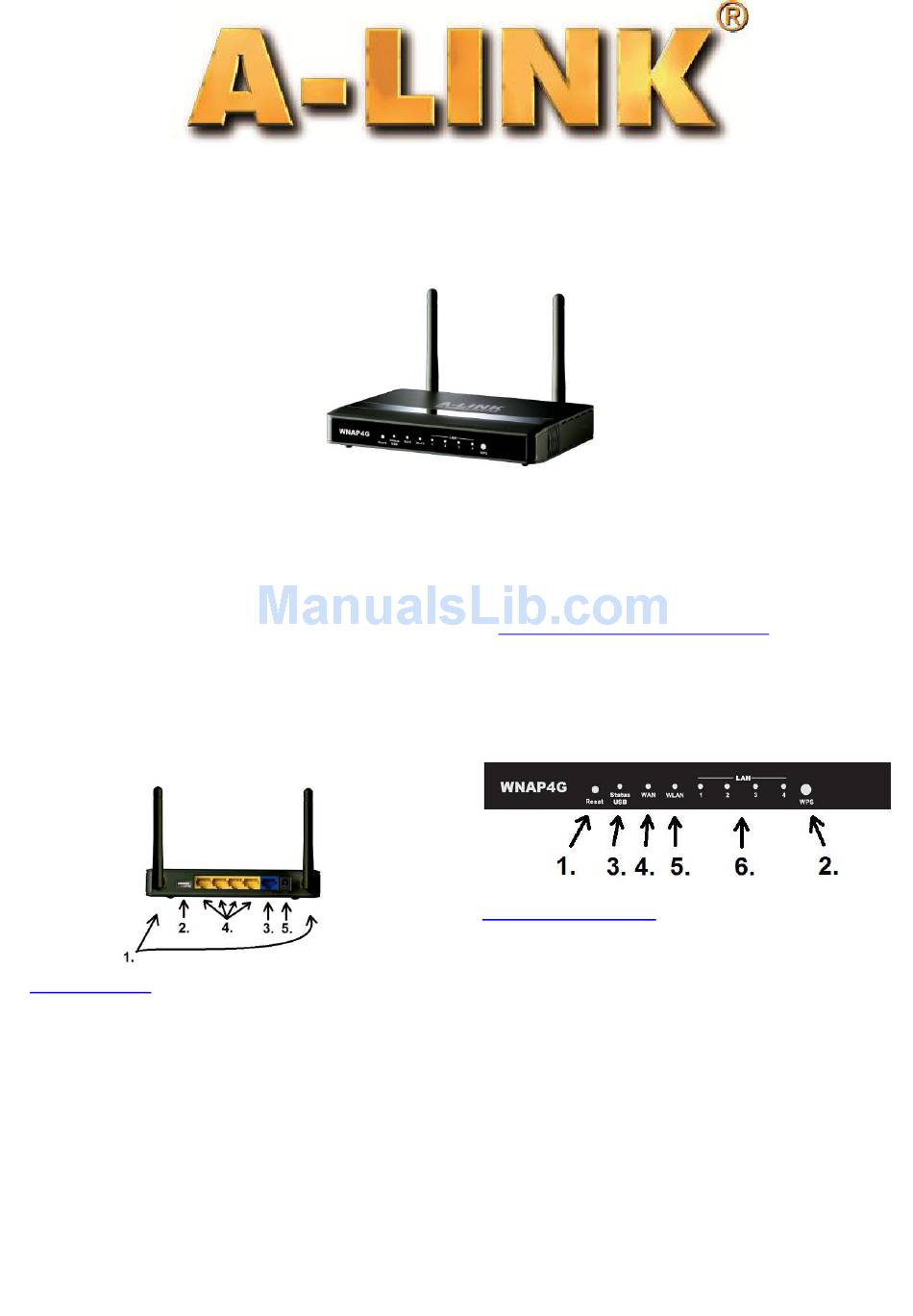

Connectors / Ports:
1. SMA antenna connectors: Insert included antennas to these
connectors.
2. USB port: Use this port to connect your 3G/4G modem or USB
mass storage for network sharing.
3. WAN port: Connect your xDSL or cable modem to this port by
Ethernet cable.
4. LAN port: Connect your PC to these ports by Ethernet cable.
5. PWR connector: Insert provided power adapter to this connector.
Installation requirements:
- Place the product to horizontal and flat base
- Keep the product away from heating devices
- Do not keep product in dusty or wet place
WNAP4G GIGABIT ROUTER

Quick Installation Guide

- 2x SMA -antenna
- CD (Manual)
- Network cable
http://www.a-link.com/uk/wnap4g
Front panel led's/functions:
1. Reset button: You can use this button to reset factory
defaults. Press 10 seconds and factory defaults will be set to
the router.
2. WPS button: You can additionally set your wireless network
security with WPS function if your PC wireless network
adapter supports WPS. Press this button 5 – 10 seconds when
WPS will be activated.
3. Status USB:
ON = USB device connected
Flashing = data traffic on USB device
OFF and random flash = USB device is not connected
4. WAN:
ON = WAN port connected
Flashing = data traffic on network (WAN)
OFF = WAN port is not connected
5. WLAN:
OFF = Wireless network not activated
Flashing = Wireless network is activated and ready
Fast flashing = WPS PBC mode
6. LAN 1 - 4:
ON = LAN port connected
Flashing = data traffic on network (LAN)
OFF = LAN port is not connected
