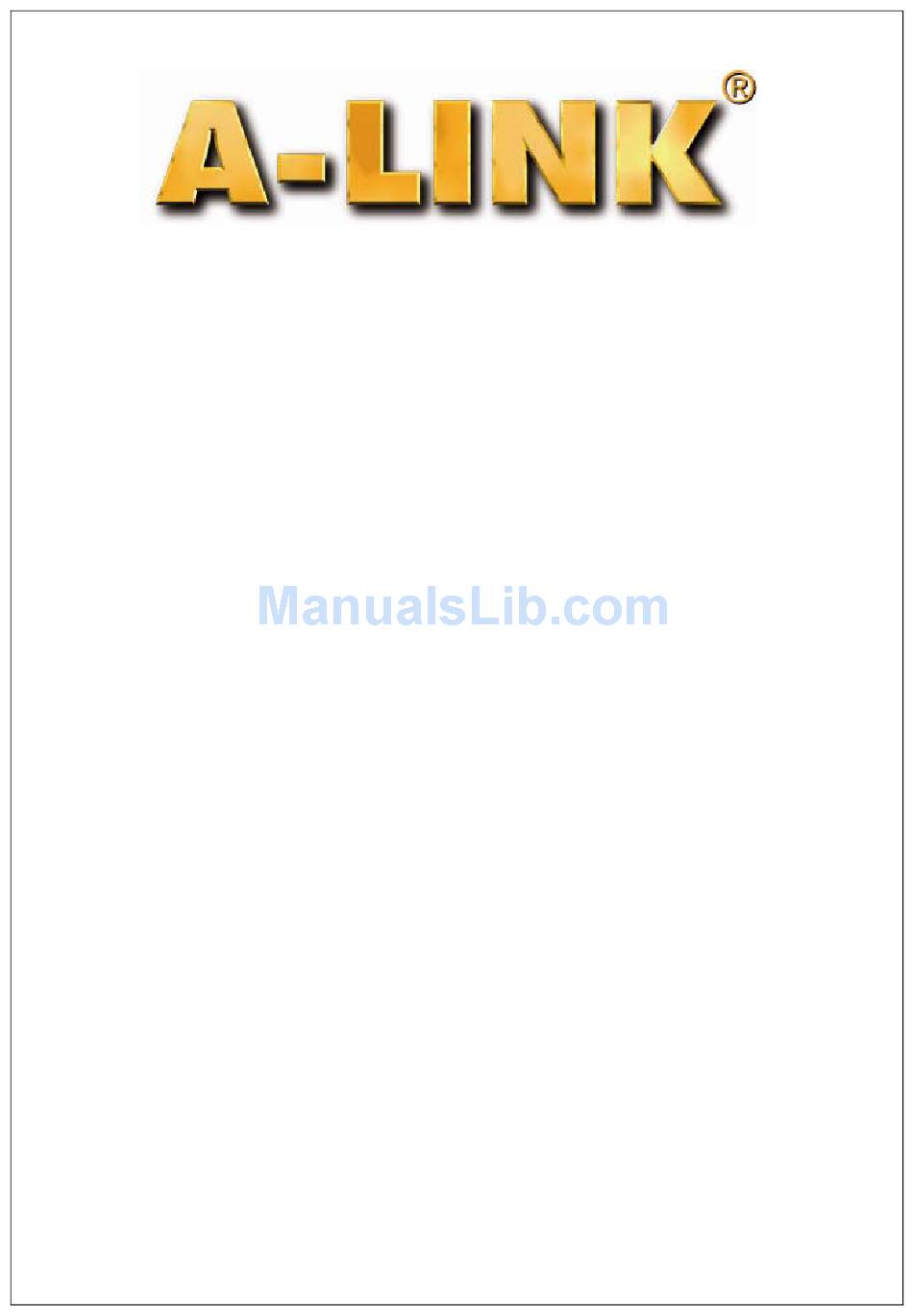

- Page 1 WNAP 3G MOBILE ROUTER Quick Installation Guide...
- Page 2 Quick Installation Guide of WNAP 3G Mobile Router ※ To avoid users without access right through your WNAP 3G Mobile Router, it is suggested to change WLAN SSID and password and admin password for web configuration login. Preparation At lease one PC with IEEE802.11b/g/n WLAN client or 10/100Mb Ethernet adapter installed.
- Page 3 GSM 3.5G 3.5G Device LAN configuration IP Address Subnet Mask WLAN configuration SSID Mode Channel Number USB Parts and Functions of WNAP 3G Mobile Router: Panel Description LAN LED WPS LED Power LED WAN LED WLAN LED LED Indicator State Description The WNAP 3G Mobile Router is powered on.
- Page 4 Quick Installation Guide of WNAP 3G Mobile Router Reset Power Interfaces Description Antenna (SMA) The Wireless LAN Antenna. PWR (Power) The power jack allows an external DC power supply connection. The external DC adaptor provide adaptive power requirement to the WLAN Broadband Router.
-
Page 5: Installation
Step Two – Configure WNAP 3G Mobile Router 1. Connect your PC to LAN port for configuration setting. WNAP 3G Mobile Router is delivered with the following factory default parameters on the Ethernet LAN interfaces. Default IP Address: 192.168.1.254 Default IP subnet mask: 255.255.255.0... - Page 6 Quick Installation Guide of WNAP 3G Mobile Router 2. Click “Setup Wizard” in submenu of Site contents Click “Next>>” button to go next. 3. Configure Operation Mode Click “Gateway”. Click “Next>>” button to go next. 6 of 10...
- Page 7 Quick Installation Guide of WNAP 3G Mobile Router 4. Configure Time Zone Setting configuration Click “Next>>” button to go next. 5. Configure LAN Interface Setup IP Address: 192.168.1.254. Subnet Mask: 255.255.255.0. Click “Next>>” button to go next. 6. WAN Interface Setup...
- Page 8 Quick Installation Guide of WNAP 3G Mobile Router 7. Wireless Basic Settings Band: 2.4GHz(B+G) Mode: AP Network Type: disabled SSID: WNAP Channel: Auto Enable Mac Clone: disabled Click “Next>>” button to go next. 8. Wireless Security Setup Encryption: WPA2 Mixed...
- Page 9 Quick Installation Guide of WNAP 3G Mobile Router Step Three – Connect WLAN client to WNAP 3G Mobile Router wirelessly On your wireless client PC: 1. Move your mouse to the Network icon on the Task bar and right click the mouse button to bring up the pop-up menu.
- Page 10 The wireless network diagram of WNAP 3G Mobile Router.. Reference Please consult the user’s manual of WNAP 3G Mobile Router for detailed and complete operation guide. Product is in accordance with directive 1999/5/EY (CE). WNAP(b) EAN: 64 18949 02217 7 Product importer, repairs and technical support : A-Link Europe Ltd, Kylävainiontie 20, FI-02760 Espoo, Finland...
