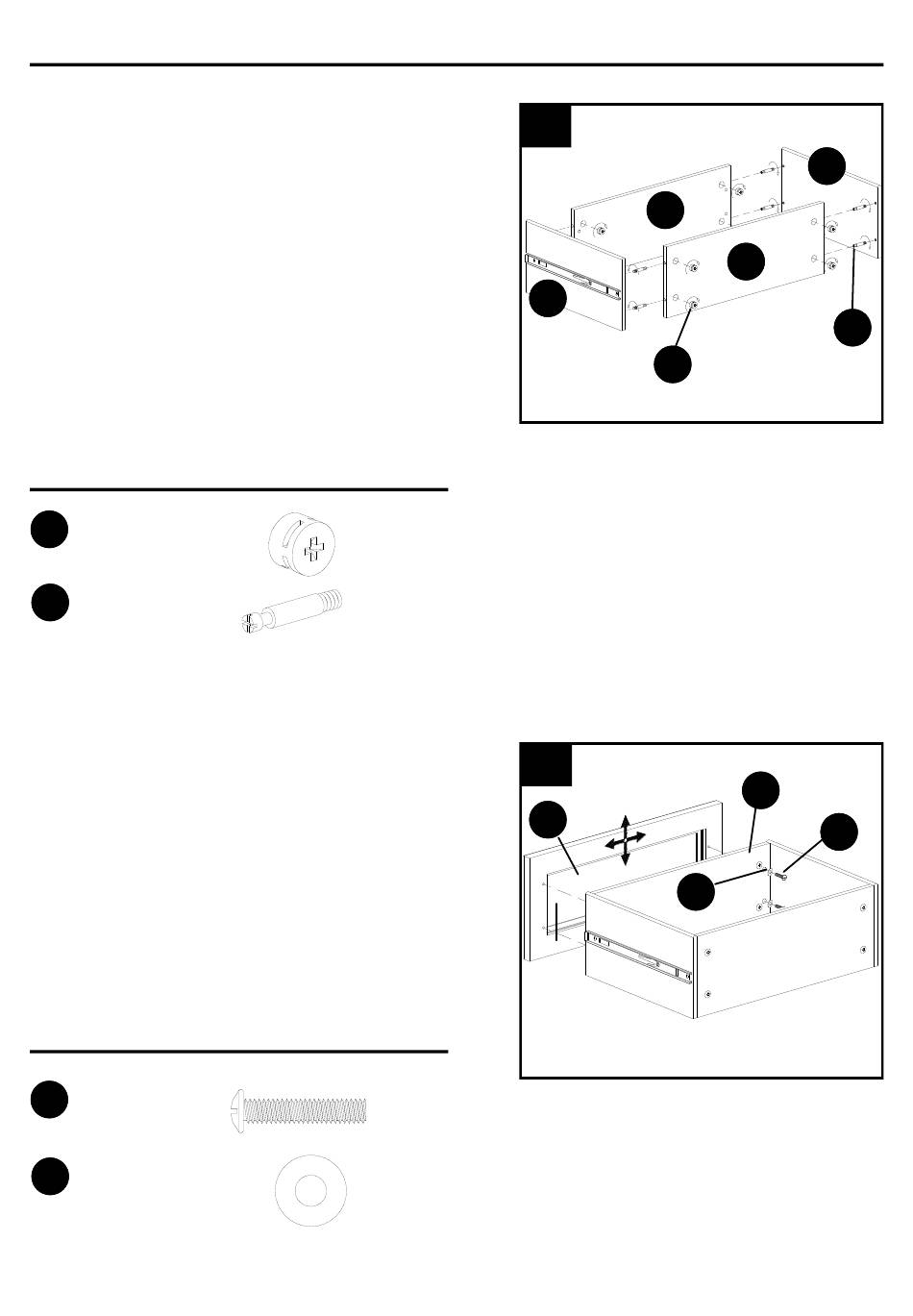

ASSEMBLY INSTRUCTIONS
5.
Attach both drawer panel front (O) and
drawer panel back (P) to drawer panel right
(R) by connecting small cam bolts (OO) with
small cam locks (NN); attach drawer panel
left (Q) to both drawer panel front (O) and
drawer panel back (P) by connecting small
cam bolts (OO) with small cam locks (NN).
Operate cam kits in this way:
1) Screw cam bolts (OO) in drawer panel
right (R) and drawer panel left (Q)
2) Push cam locks (NN) in drawer panel
front (O) and drawer panel back (P)
3) Connect both and secure cam locks (NN)
Hardware Used
Small Cam Lock
NN
OO
Small Cam Bolt
6.
Assemble drawer panel face (N) to drawer
frame using M6 x 25 mm bolts (FF) and
small flat washer (GG).
Note: There are four large holes in drawer
panel front (O) to go with four small ones in
drawer panel face (N) so drawer panel face
(N) could be moved around to align drawers
in the frame whenever necessary.
Repeat last two steps for other 2 drawers.
Hardware Used
FF
M6 x 25 mm
Bolt
GG
Small Flat Washer
5
R
x 8
x 8
6
N
x 4
x 4
9
Q
O
P
NN
O
FF
GG
OO
