ASSEMBLY INSTRUCTIONS

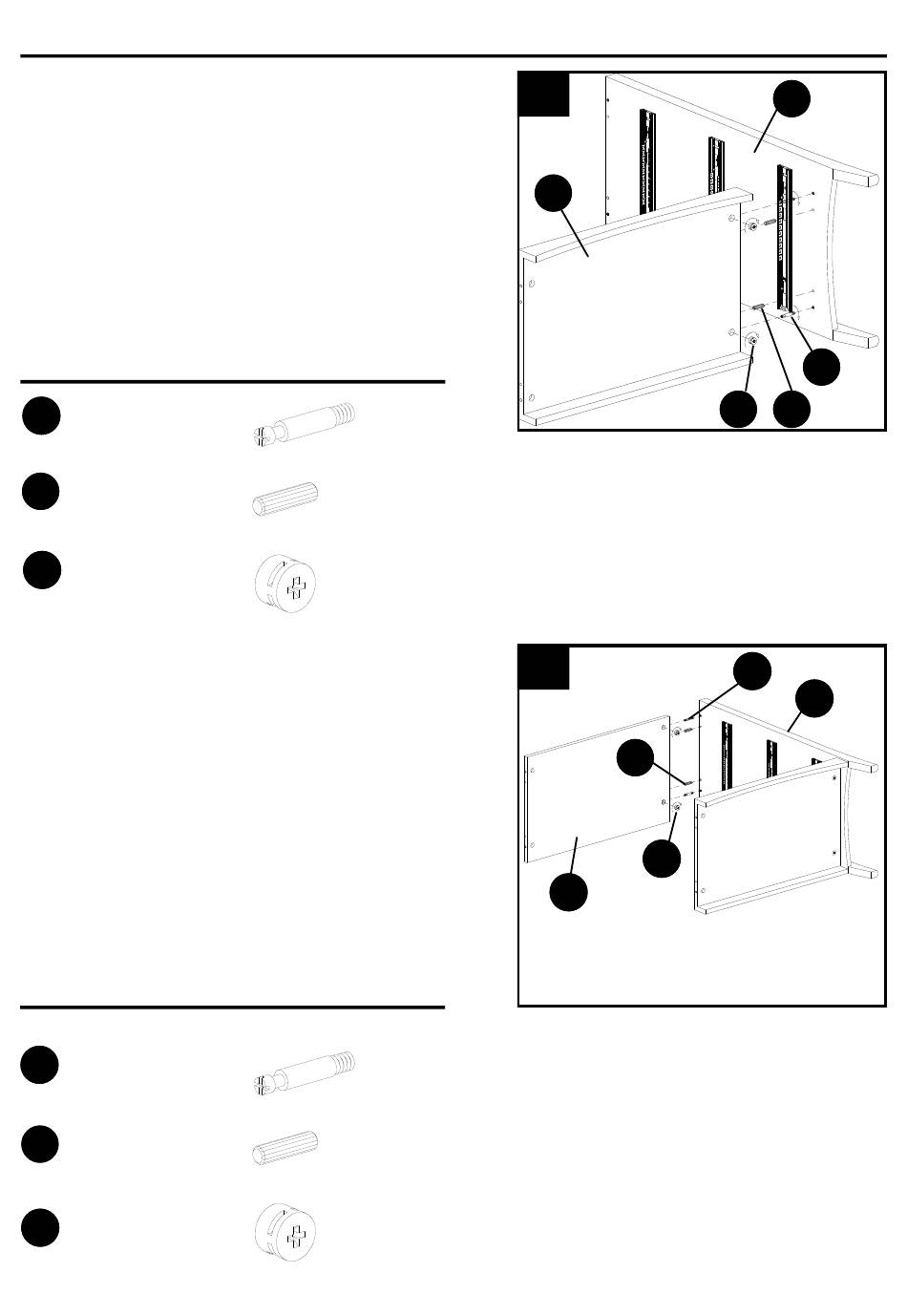

1. Insert wood dowel (QQ) in holes without threaded
inserts into base panel right (K). Attach base pan-
el bottom (L) to base panel right (K) by
connecting large cam lock (LL) with large cam bolt
(MM).
Operate cam kits in this way:
1) Screw cam bolts (MM) in base panel right (K)
2) Push cam locks (LL) in base panel bottom (L)
3) Connect both and secure cam locks (LL)
Hardware Used
MM
Large Cam Bolt
QQ
Wood Dowel
LL
Large Cam Lock
2. Insert wood dowels (QQ) into top holes of
base panel right (K). Attach base panel top (I)
to base panel right (K) by connecting large
cam bolts (MM) with large cam locks (LL).
Make sure both are flush with each other
from back side.
Operate cam kits in this way:
1) Screw cam bolts (MM) in base panel right
(K)
2) Push cam locks (LL) in base panel top (I)
3) Connect both and secure cam locks (LL)
Hardware Used
MM
Large Cam Bolt
QQ
Wood Dowel
Large Cam Lock
LL
1
L
x 2
x 2
x 2
2
I
x 2
x 2
x 2
7
K
LL
QQ
MM
QQ
LL
MM
K
