Allen + Roth WSCO-72C-AR Manual page 8

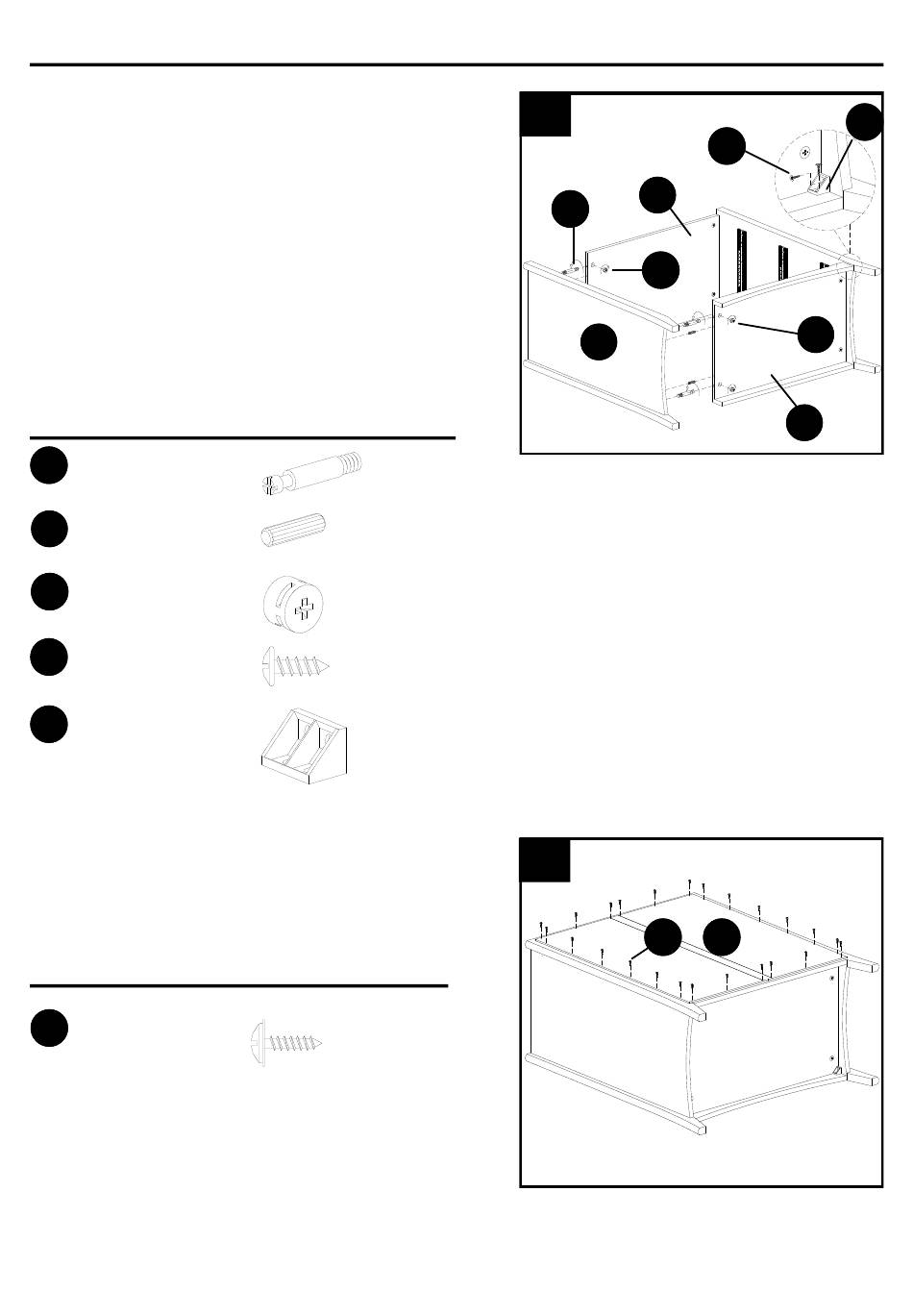

ASSEMBLY INSTRUCTIONS
3. Have base panel left (J) assembled by
connecting large cam bolts (MM) with large
cam locks (LL). After that, attach two plastic
corners (RR) only to front corners using
M4 x 16 mm wood screws (CC) to strengthen
base structure.
Operate cam kits in this way:
1) Screw cam bolts (MM) in base panel left (J)
2) Push cam locks (LL) in both base panel
bottom (L) and base panel top (I)
3) Connect both and secure cam locks (LL)
Hardware Used
Large Cam Bolt
MM
Wood Dowel
QQ
LL Large Cam Lock
M4 x 16 mm
CC
Wood Screw
RR
Plastic Corner
4. Assemble base panel back (M) using M3 x 16
mm wood screws (BB) through pilot holes.
Hardware Used
BB
M3 x 16 mm
Wood Screw
3
MM
x 4
x 4
x 4
x 8
x 2
4
x 24
8
CC
I
LL
J
BB M
RR
QQ
L
