ASSEMBLY INSTRUCTIONS

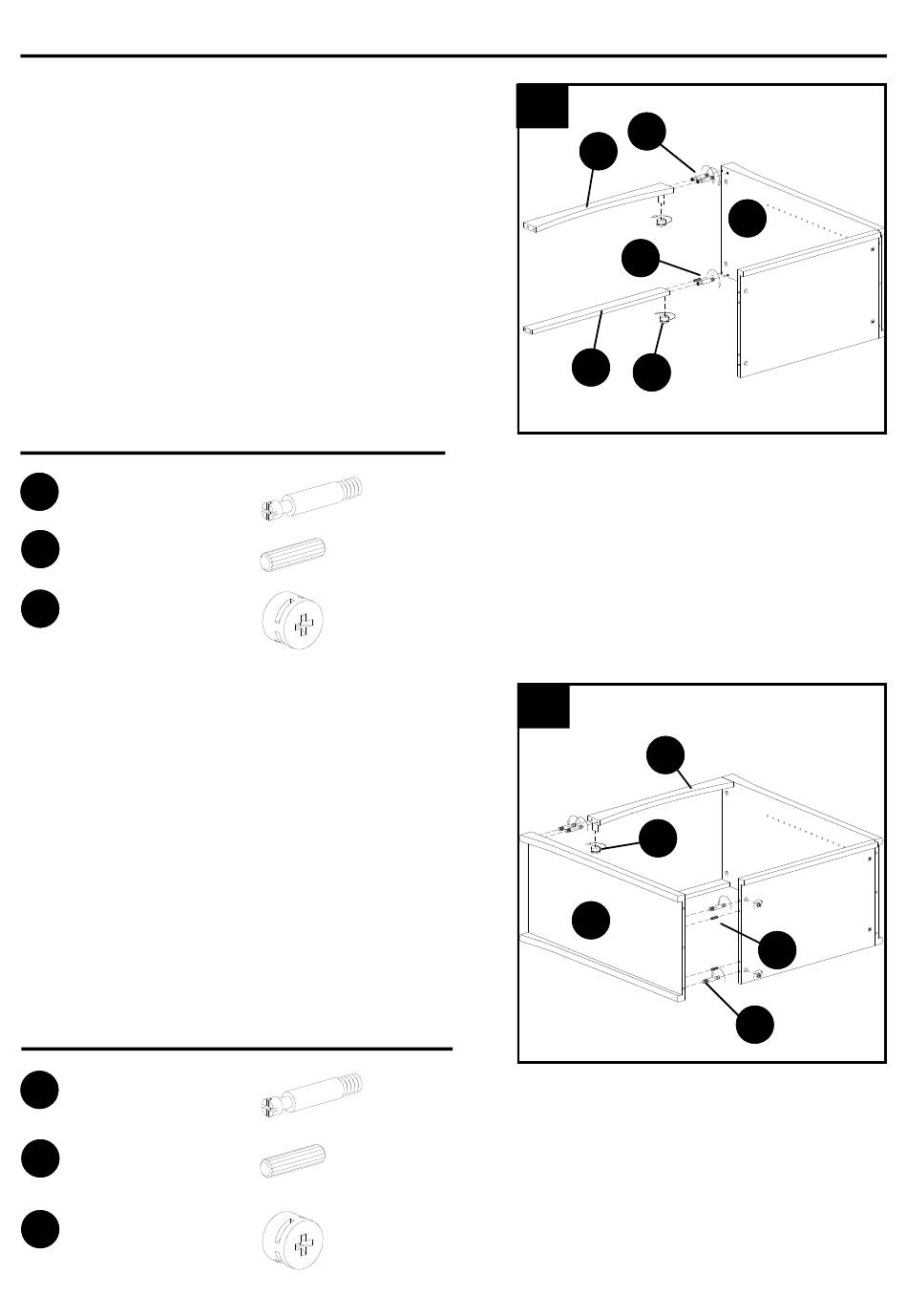

11.
Insert wood dowels (QQ) in holes without
thread inserts into hutch panel right (B).
Assemble both front stretcher (D) and rear
stretcher (E) to hutch panel right (B) by
connecting large cam bolts (MM) with large
cam locks (LL).
Operate cam kits in this way:
1) Screw cam bolts (MM) in hutch panel
right (B)
2) Push cam locks (LL) in both stretchers
(D) and (E)
3) Connect both and secure cam locks (LL)
Hardware Used
MM Large Cam Bolt
QQ
Wood Dowel
LL Large Cam Lock
12.
Insert wood dowels (QQ) in holes without
thread inserts into hutch panel left (A). Have
hutch panel left (A) assembled by connecting
large cam bolts (MM) with large cam locks
(LL).
Operate cam kits in this way:
1) Screw cam bolts (MM) in hutch panel left
(A)
2) Push cam locks (LL) in both stretchers
(D) and (E)
3) Connect both and secure cam locks (LL)
Hardware Used
Large Cam Bolt
MM
QQ Wood Dowel
Large Cam Lock
LL
11
E
x 3
x 1
x 3
12
A
x 5
x 3
x 5
12
MM
D
B
QQ
LL
D
LL
MM
QQ
