Installation Steps; Bar Options - STONE STOMPER Stone Guard Installation Manual

Step 1:
Bar Option 1:

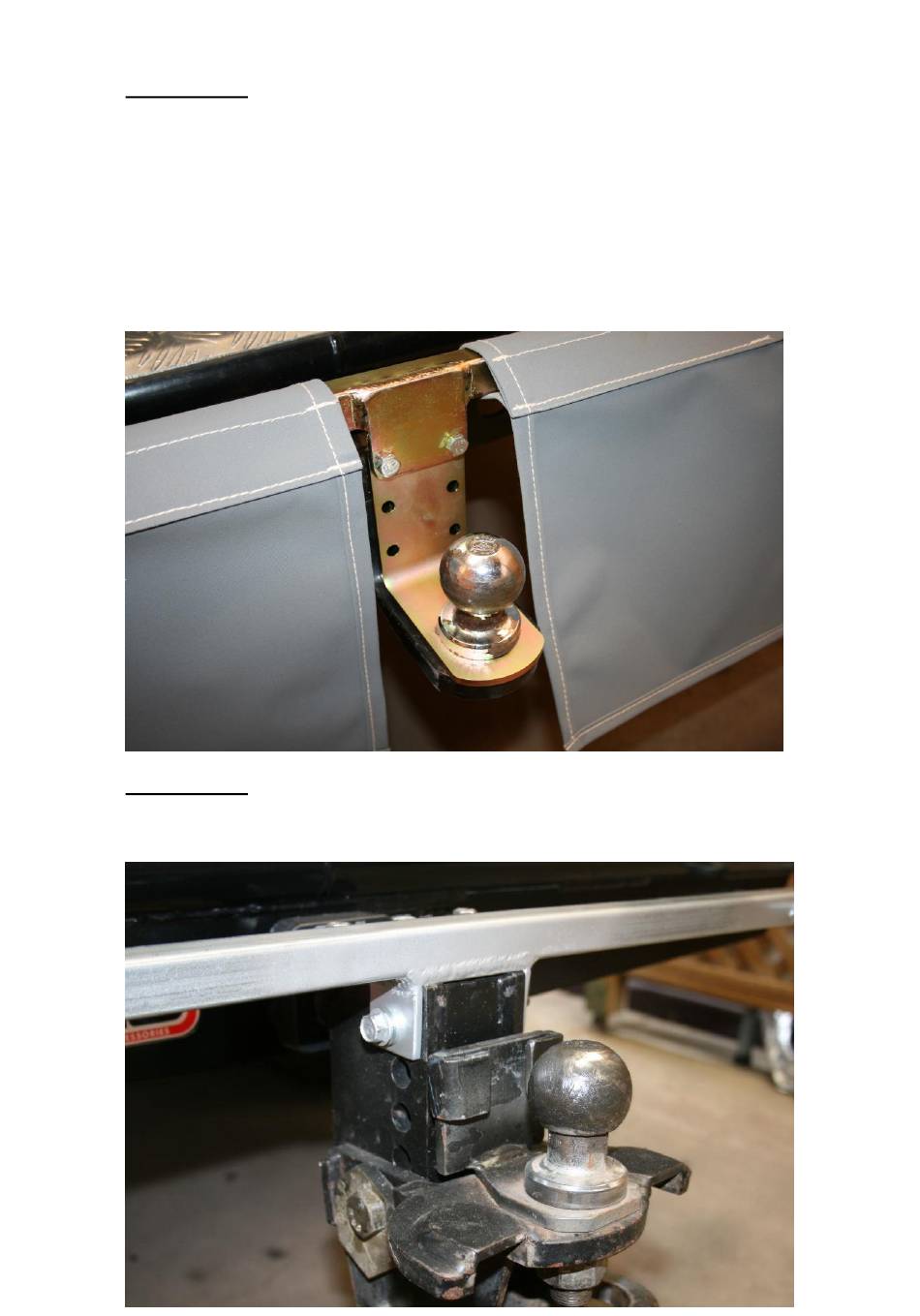

Locate the L bracket with the large hole (as shown in the photo below). Attach this to
the bar with the canvas flaps using the high tensile nuts and bolts supplied.
Remove tow ball/treg hitch and place L bracket attached to bar over the tow ball hole
(as shown in the photo below). Replace tow ball/treg hitch.
Retighten securely to the towball manufacturers torque settings. The bar will need to
be mounted behind the angled bracket for the lower bar height settings. Tighten
securely.
Bar Option 2:
Place the bar with the canvas flaps over the top hole of the Hayman Reese post
Locate the long bolt in the kit, place through the holes and tighten securely.
