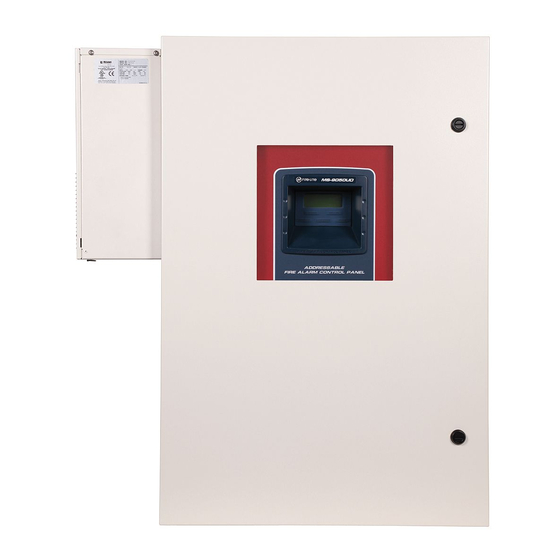

STI 7560AC Mounting Instructions

NOTE:
If mounting to brick, block or concrete wall, drill 5/8" diameter
holes 2" deep and insert lag shields.
If mounting to wood wall or wood stud, drill 9/32" diameter holes
1-1/2" deep.
INSTALLATION INSTRUCTIONS
1. Using needle-nose pliers remove both hinge pin snap rings.
2. Push out or lift out hinge pins and remove door.
3. Place enclosure on wall and mark top right hole position onto
wall. Set enclosure aside.
4. Drill hole according to note above.
5. Insert lag screw into sealing washer. Place enclosure on wall and
insert lag screw with sealing washer through enclosure and into
drilled hole. Finger tighten only.
6. Allow enclosure to pivot and hang from lag screw.
7. Set a level on top of enclosure and level enclosure. Mark the
remaining three mounting holes onto wall.
8. Allow enclosure to pivot and hang from lag screw and drill the
remaining three holes.
9. Insert the remaining three lag screws with sealing washers
through enclosure into wall and tighten all (4) lag screws.
Three year warranty or a one year limited warranty (from
date of purchase) on most products. See website for details.
Electronic warranty form at www.sti-usa.com/wc14.
All specifications and information shown were current as of publication and are subject to change without notice.
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com

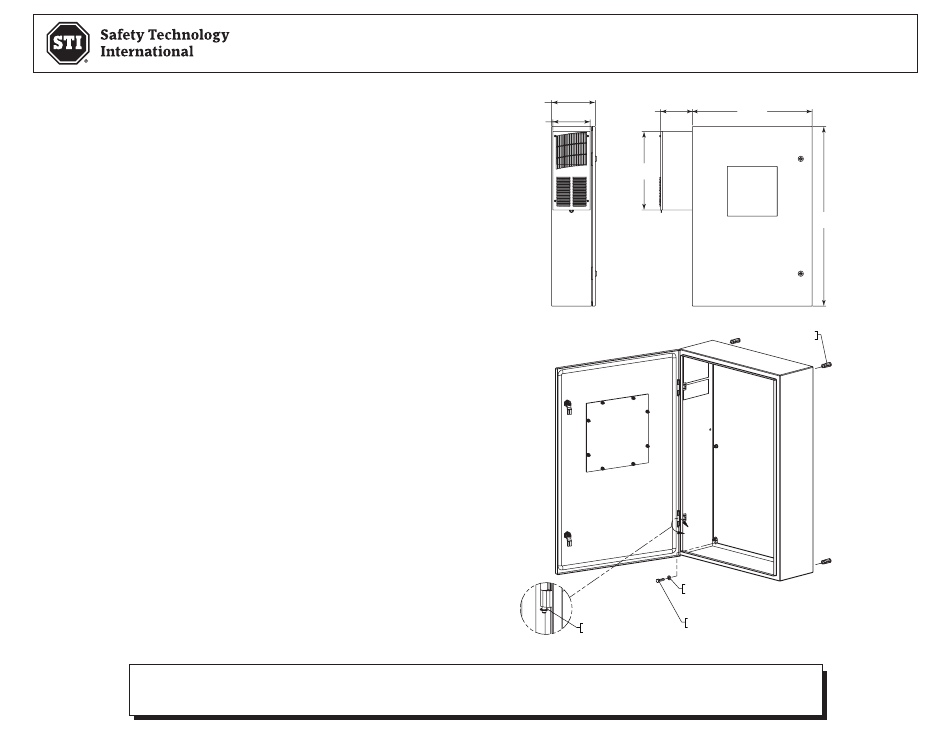

STI-7560AC ENCLOSURE MOUNTING INSTRUCTIONS
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England
Tel: +44 (0)1527 520 999 • Fax: +44 (0)1527 501 999
E-mail: info@sti-emea.com • Web: www.sti-emea.com
8.79 in.
(223mm)
6.35 in.
(161mm)
7.5 in.
(191mm)
15.75 in.
(400mm)
A
SEALING WASHER
(4) PROVIDED
3/8 x 1-1/2 LAG SCREW
HINGE PIN SNAP RING
(4) PROVIDED
(ONE ON EACH HINGE PIN)
DETAIL A
24 in.
(610mm)
36 in.
(914mm)
3/8 LAG SHIELD
(4) PROVIDED
7560AC OCT2010
