Manitowoc I1406 Series Replacement Manual

1. Disconnect the power to the ice machine at the electrical
panel. (pushing the power button to the off position
will not disconnect line voltage).
2. Remove all the panels (top, front left, and right sides).
3. Recover all refrigerant from the ice machine.
4. Remove the right rear back panel and top rail.
Note:
(Orientation is done while facing the front of the ice machine)

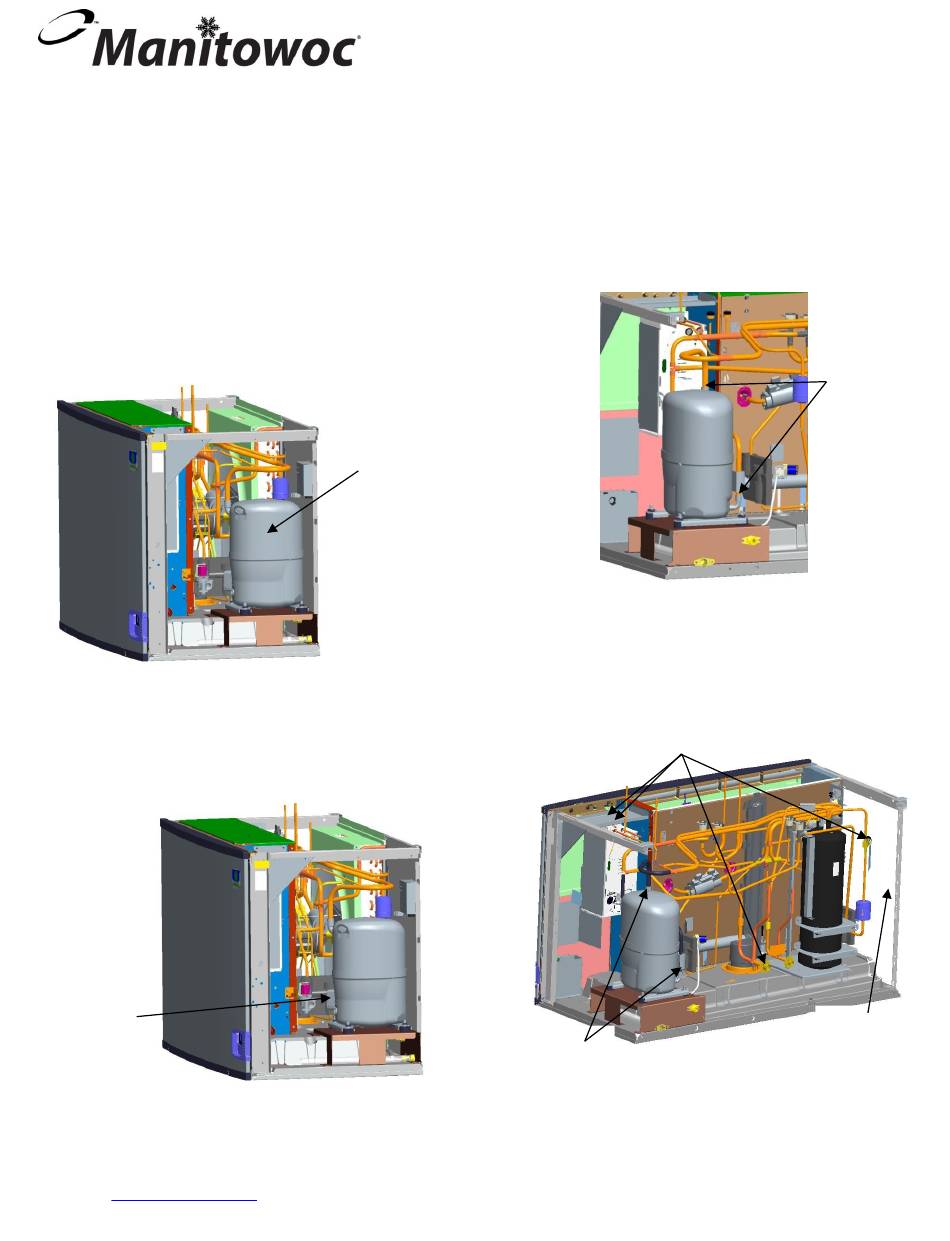

5. Remove the wiring or plug from the compressor terminals.
I1406
Compressor
plug location
Manitowoc Ice
th
2110 South 26 Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA
Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879
Web Site -
www.manitowocice.com
COMPRESSOR REPLACEMENT
I1406 SERIES
I1406
Compressor
position
6. Unbraze the suction line at the compressor port. Unbraze
the discharge port at the compressor.
Unbraze the bottom joint at the compressor discharge port.
Cut the tubing when replacing filter drier.
Do not unbraze the filter drier.
Note: When replacing the compressor in a Remote
Ice Machine; be sure to unbraze the suction
and process port at the compressor, replace
the filter drier. Cut tubing to replace the
filter dryer. Do not unbraze filter drier.
Remember that there are four points of
recovery on a remote.
4 Recovery
Points
Unbraze
7. Remove the compressor from the ice machine. Make
sure compressor ports are crimped and brazed shut.
Unbraze
Filter Drier
Cut the tubing
000013291
