Getting started
Instrument description
The partector is a portable, battery powered instrument to measure the
lung deposited surface area (LDSA) of nanoparticles. It displays the
measured data on a graphical display and stores it on a SD card. A user-
defined LDSA alarm level can be set. If the alarm level is exceeded, the
instrument's internal buzzer is turned on to produce an audible warning.

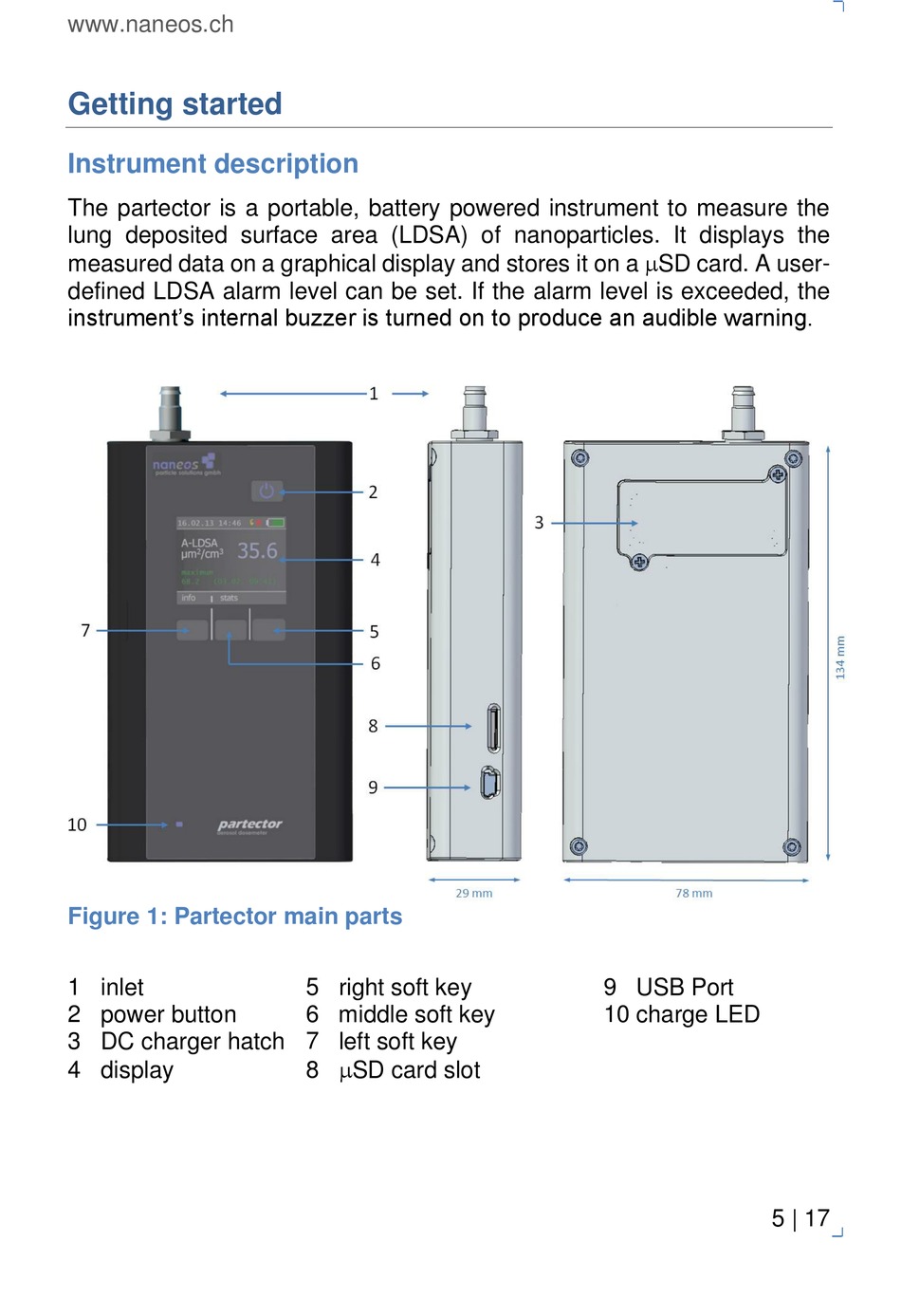

Figure 1: Partector main parts
1 inlet
2 power button
3 DC charger hatch 7 left soft key
4 display
5 right soft key
6 middle soft key
8 SD card slot
9 USB Port
10 charge LED
5 | 17
