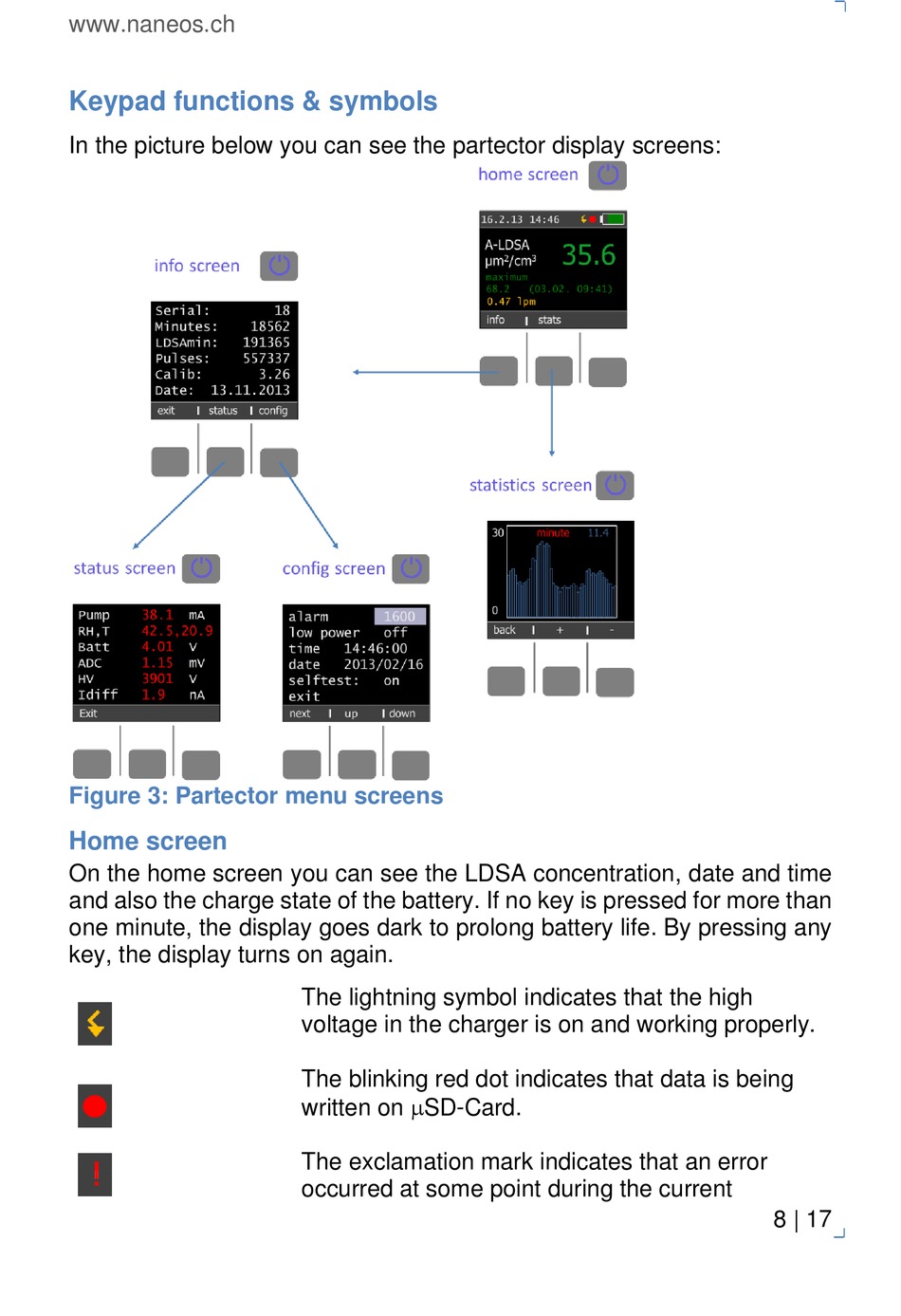

Naneos Partector Operation Manual page 8

www.naneos.ch
Keypad functions & symbols
In the picture below you can see the partector display screens:
Figure 3: Partector menu screens
Home screen
On the home screen you can see the LDSA concentration, date and time
and also the charge state of the battery. If no key is pressed for more than
one minute, the display goes dark to prolong battery life. By pressing any
key, the display turns on again.
The lightning symbol indicates that the high
voltage in the charger is on and working properly.
The blinking red dot indicates that data is being
written on SD-Card.
The exclamation mark indicates that an error
occurred at some point during the current
