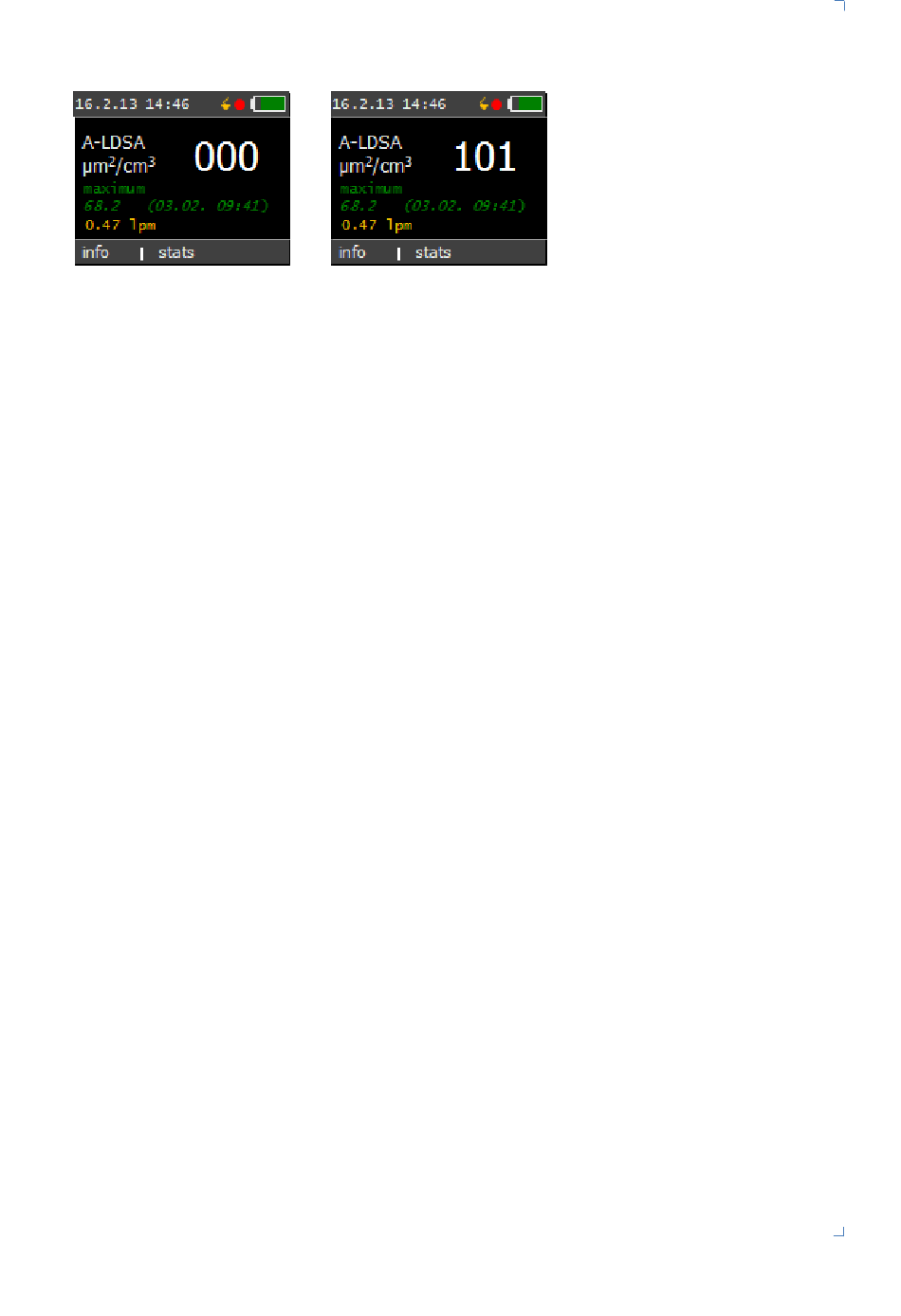

Figure 5: Display during gain measurement.
Measuring the gain periodically ensures that your data is correct, and
that the aging of the instrument is taken into account properly.
Info screen
The info screen displays device specific system information:
Serial:
Minutes:
LDSAmin:
Pulses:
Calib:
Date:
Pressing the "status" soft button brings you to the status screen. Pressing
the "alarm" soft button brings you to the alarm screen.
Status screen
The status screen shows the most important device data.
RH,T internal relative humidity [%] and temperature [°C]
BATT battery voltage
ADC electrometer signal
HV charger corona voltage
Idiff charger diffusion current
Config screen
In the config screen, you can change some settings of the partector
Alarm level: use the "up" and "down" soft key to change the alarm level
to the desired value. When the measurement value exceeds the alarm
level, the internal buzzer of the partector will produce an audible warning.
serial number of the device
total operating time in minutes
LDSA value integrated over time
number of high voltage charging pulses
calibration factor
date of calibration
