www.naneos.ch
Getting started
Instrument description
The Partector 2 (Light Version) is a hand-held, battery powered instrument
to measure the lung deposited surface area (LDSA). It displays the
measured data on a graphical display and stores it on a SD card. A user-
defined LDSA alarm level can be set. If the alarm level is exceeded, the
instrument's internal buzzer is turned on to produce an audible warning.
The device can communicate with Android smartphones that support BT
low energy.
1
aerosol inlet
2
USB Port
SD card slot
3
4
power button

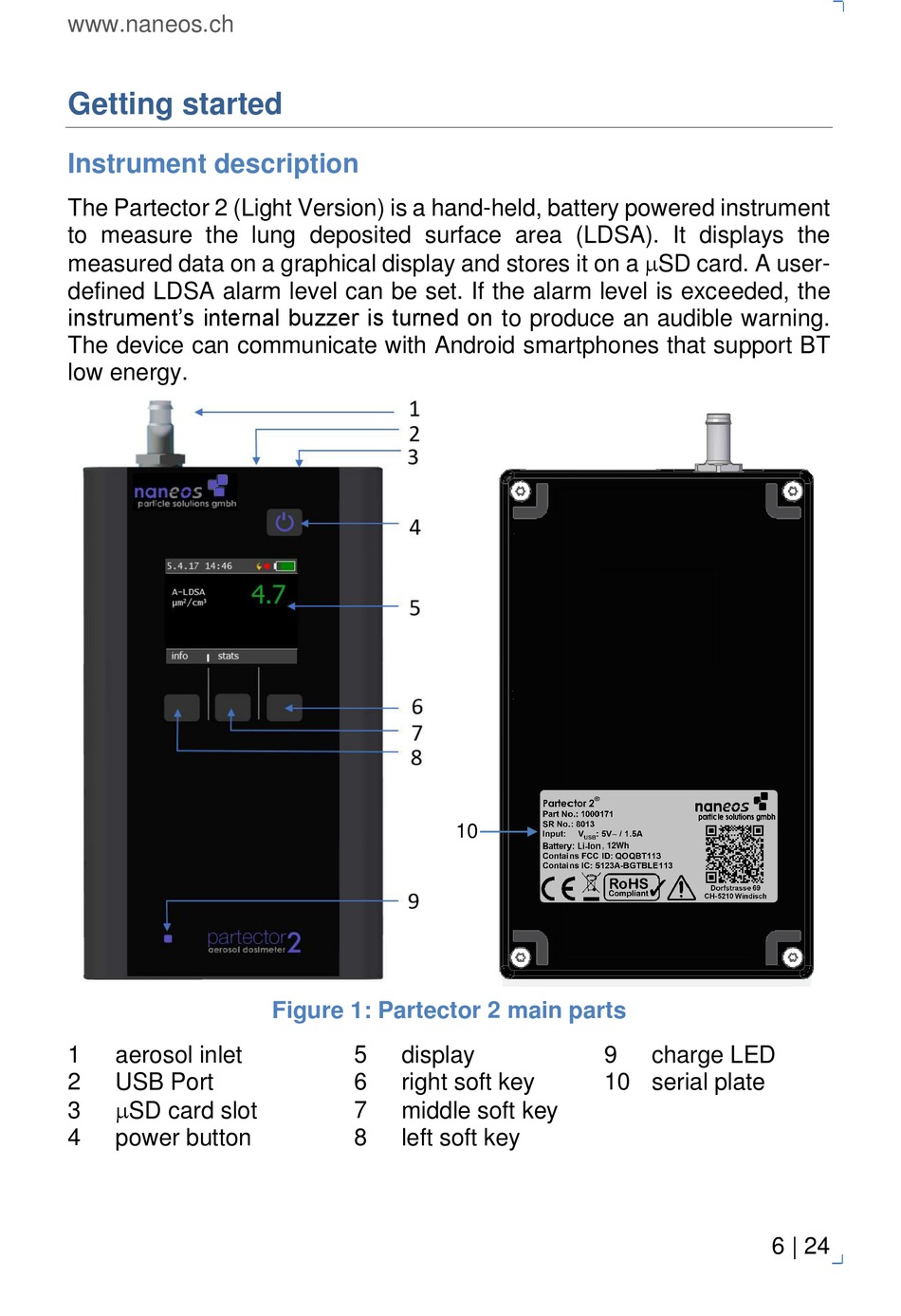

Figure 1: Partector 2 main parts
5
display
6
right soft key
7
middle soft key
8
left soft key
10
, 12Wh
9
10 serial plate
charge LED
6 | 24
