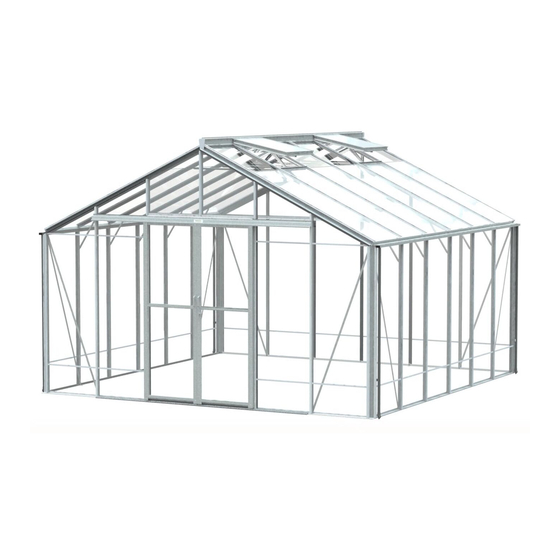

  • Page 1 NOMINAL SIZE NOMINAL SIZE A (mm) B (mm) A (mm) B (mm) 12 x 8 2632 6ft extension 1860 12 x 10 3252 8ft extension 2480 3824 12 x 12 3872 10ft extension 3100 12ft extension 3720...
  • Page 2 Thank you for purchasing your new Robinsons greenhouse. We recommend you familiarise yourself with the instructions and read all safety information before you commence assembly. This instruction manual is also available online at www.robinsonsgreenhouses.co.uk in our technical help section should you need to reprint it. Should you require any additional advice you can always call us on 01782 385409.
  • Page 3 They attach to the building during the glazing process (8) like a piece of glass with a black LOUVRE separator above and below them. Robinsons integral cantilever staging and shelving attaches to the inside of the greenhouse OPTIONAL frame using either square head bolts (insert four into each side glazing bar ’D066’ during con- SHELVING struction of the sides (1)) or rectangular ‘crop head’...

  • Page 4: Table Of Contents

    Section Part Section Size Section Part Section Size (mm) (mm) D021 2514 D111 D022 3134 D023 3754 1000 RUBBER (1m) D014 2517 D015 3137 D174 D016 3757 D103 1787 D066 1676 D001 2517 D002 3137 D003 3757 1000 RUBBER (1m) 21 27 34 D033 2082...

  • Page 5: Part No

    Section Part Section Size Section Part Section Size (mm) (mm) D812 1660 D090 + D816 1976 D347 lock = 1824 D301 D820 2272 D870 D881 D092 + D882 2568 D156 strike = 1824 D303 D883 D887 1490 D813 1675 D814 1883 D093 1824...
  • Page 6 THE DIMENSIONS BELOW ARE THE EXACT EXTERNAL BASE DIMENSIONS FOR THE ROBINSONS RANGE. We cannot emphasis how important it is to have a proper base for your Robinsons Greenhouse to be erected upon. It is essential that the BASE IS FLAT, LEVEL AND SQUARE AS WELL AS BEING SUBSTANTIAL enough to take the weight of the greenhouse including its 4mm glass.
  • Page 7 Feed glazing rubber into each glazing bar and PARTITION trim to length. Notice that some channels are ONLY only used on a partition. Applying a lubricant to REFER TO SEPARATE the aluminium channels will speed up insertion. MANUAL PARTITION ONLY REFER TO SEPARATE MANUAL...

  • Page 8: Rubber

    8 X 2 Part No Quantity D014 2517 D014 D021 2514 D066 1676 D103 1787 D174 10mm 15mm D021 Rubber 1000 10 X 2 Part No Quantity D015 3137 D022 3134 D015 D066 1676 D103 1787 D174 10mm 15mm D022 Rubber 1000 12 X 2...
  • Page 9 D103 10mm D066 TRANSIT BOLT ON 15mm DIAGONALS D066 D103 15mm...

  • Page 10: D103 1787

    Part No Quantity Part No Quantity D111 D030 3836 D048 1676 D174 D051 1976 D227 D053 2272 D103 1787 M6X10 D035L 2082 M6X15 D035R 2082 M6NUT 10mm D035L D035R 10mm 10mm 10mm D051 D051 D103 D053 D053 D103 D048 D048 D030 15mm 10mm...
  • Page 11 D035L D035R D035L D111 D053 D035L D048 D103 D048 D103 D051 D174 D030 D030...

  • Page 12: D032 2568

    Part No Quantity Part No Quantity D030 3836 D111 D032 2568 D174 D034 3750 D227 D048 1676 D051 1976 M6X10 D053 2272 M6X15 D103 1787 D035L 2082 M6NUT D035R 2082 10mm D035L D035R 10mm 10mm 10mm D034 D103 D053 D053 D103 D051 D032...
  • Page 13 D035L D053 D035L D035R D111 D032 D035L D034 D048 D103 D048 D103 D051 D174 D030 D030...
  • Page 14 EQUAL...
  • Page 15 8’ 10’ 12’ Part No Quantity Part No Quantity Part No mm Quantity D001 2517 D002 3137 D003 3757 D033 2082 D033 2082 D033 2082 D126 D126 D126 D128 1015 D128 1015 D128 1015 RUBBER RUBBER 1000 1000 RUBBER 1000 D033 D033 D033...

  • Page 16: Plus Screw

    Part No mm Quantity Part No mm Quantity D220 D866 PLUS SCREW D863L D205 D863R BOLM6X11 SYNUTM6 D862 D1208 8 X 12 S/T 1 of - FS6017 610 x 610 8 x 19 S/T pane FS6018 D863R D863R D866 D863L D866 D1208 1 of -...
  • Page 17 D862 D863L D862 FLIP VIEW D119...
  • Page 18 Part No mm Quantity Part No mm Quantity D079 PLUS BOLM6X11 FLUFF D114 BOLM6X15 SYBOLM6 X11CROP SYNUTM6 D114 D079 D114 FLIP VIEW...
  • Page 19 D1208 GLASS D892 GLASS D892 GLASS...
  • Page 20 Part No mm Q Part No mm Q D232 1824 1 D094 D233 D911 D090 + D347 lock = D301 D911 555 x 812 1824 1 555 x 812 P053 pane D092 + D156 strike = pane D303 1824 1 D225 1824 1 D093...
  • Page 21 D911 555 x 812 pane D912 D232 555 x 922 pane D912 555 x 922 pane D307 D225 D097 D225 D840B P053...
  • Page 22 PART Section Size (mm) D886 D886 D812 1660 D881 D881 D885 D816 1976 D820 2272 D883 D870 D881 D812 D882 2568 D883 D887 1490 D826 D828 D836 D836 D828 D826 D813 1675 D813 D816 D814 D814 D816 D813 D814 1883 D834 1660 D825...
  • Page 23 ROOF PANES OVERLAP S S S PART Size (mm) 8’ 10’ 12’ D1206 610 X 1374 18 20 D892 R 610 X 1500 D1208 610 X 610 D1254 610 X 305 18 20 D911 555 X 812 D912 555 X 922 D900 ANGLE D908...
  • Page 24 D220 D220...
  • Page 25 D862 D079...
  • Page 26 Part No Part No D163 D865 1210 D150 D845 2510 D086 BOLM6X15 SYNUTM6 2510 D085 D845 D845 D836 D814 D163 D845 D053...
  • Page 27 N/A 7 D150 D086 D085 D865 N/A 4 D031 D865 D845...
  • Page 28 Part No D861 D088 D088 D860 D861 D087...
  • Page 29 Part No Quantity FS6018 D312 D204L O4mm D204R through FS6018 metal only FS6018 D204R D312 Part No N/A 2 D031 D223/B D031 D819 D823 D883 D846 D833 D891 D881 D891 D885 D223 D886 NOTCH DOWN...
  • Page 30 O7mm...
  • Page 31 Part No Quantity D168L D168R (handle) D165 D166 FS6013 D166 D166 D168L D168R D165 D165 INTERNAL VIEW D729TG - 100 x 525 panes x 6 PINCH ALL GLASS RETAINERS BEFORE GLAZING D165...
  • Page 32 3 slat Example: 2x 4’ shelves ‘ST0304’ = 8’ run 10mm crop D2013 15mm D048 10mm 10mm D066 D048 D2014 10mm crop D2002 =1240mm D2002 =1240mm D2014 D2021 D2003 =1860mm...
  • Page 33 7 slat Example: 2x 4’ staging ‘ST0704’ = 8’ run D048 D2045 D2043 D066 D048 10mm D2044 crop 10mm crop 10mm 10mm 10mm D2046 D2046 D2047 D2043 D2044 D2045 D2042 D2042 D2042 D2002 =1240mm 10mm 10mm D2002 FINISH =1240mm START D2003 =1860mm D2002...
  • Page 34 10 slat Example: 2x 4’ staging ‘ST01004’ = 8’ run D174 D048 D174 D048 D2043 D2051 D2045 D066 D2044 D2052 crop 10mm 10mm crop 10mm D2049 10mm D2043 10mm D2048 D2048 D2045 D2044 D2050 D2050 D2050 D2002 =1240mm 10mm 10mm D2002 =1240mm START...
  • Page 35 D214 D203 D201 D119 D119 D208 D211 D202 D048 D841 D119 D211 D048 D206 D207 D048...
  • Page 36 START ROCRE W/G FINISH ROFIN W/G ROFIN W/G D119 START FINISH EQUAL EQUAL...
  • Page 40 We wish you all the best with your new greenhouse, and we look forward to seeing your photos in the near future! THIS GREENHOUSE BOX WAS PACKED BY: DATE:___________________ ________________________________________________________________________________ www.robinsonsgreenhouses.co.uk To contact Robinsons Customer Services email us at sales@robinsonsgreenhouses.co.uk or call us on 01782 385 409. Our address is Robinsons Greenhouses, Unit 19 Blythe Park, Cresswell, Stoke-on-Trent, Staffordshire, ST11 9RD...
