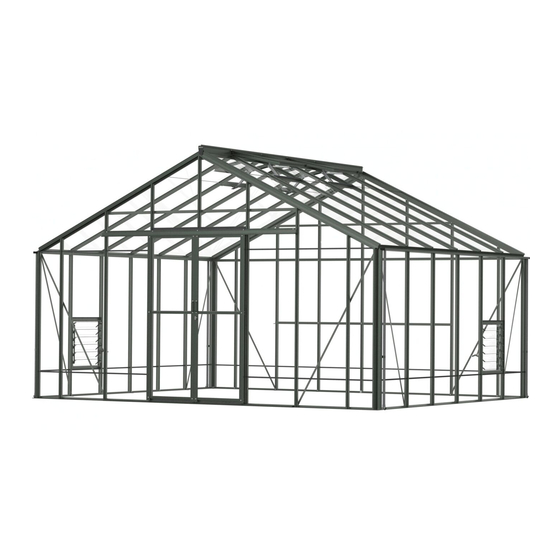

  • Page 1 NOMINAL SIZE NOMINAL SIZE A (mm) B (mm) A (mm) B (mm) 6ft extension 14 x 8 2632 1860 8ft extension 14 x 10 3252 2480 4454 14 x 12 3872 10ft extension 3100 12ft extension 3720...
  • Page 2 Thank you for purchasing your new Robinsons greenhouse. We recommend you familiarise yourself with the instructions and read all safety information before you commence assembly. This instruction manual is also available online at www.robinsonsgreenhouses.co.uk in our technical help section should you need to reprint it. Should you require any additional advice you can always call us on 01782 385409.
  • Page 3 They attach to the building during the glazing process (8) like a piece of glass with a black separator above and below them. LOUVRE Robinsons integral cantilever staging and shelving attaches to the inside of the greenhouse frame using either square head bolts (insert four into each side glazing bar ’D066’ during construction of the sides OPTIONAL (1)) or rectangular ‘crop head’...
  • Page 4 Section Part Section Size Section Part Section Size (mm) (mm) D021 2514 D111 D022 3134 D023 3754 1000 RUBBER (1m) D014 2517 D015 3137 D174 D016 3757 D103 1787 D001 2517 D002 3137 D066 1676 D003 3757 1000 RUBBER (1m) 21 27 34 D737 2427...
  • Page 5 Section Part Section Size Section Part Section Size (mm) (mm) D746 2718 D090 + D748 D347 lock = 1824 D301 D812 1660 2/3/5 D815 1830 D818 2126 D092 + D822 2422 D156 strike = 1824 D303 D823 D870 D739 1830 D813 1675 D093...
  • Page 6 THE DIMENSIONS BELOW ARE THE EXACT EXTERNAL BASE DIMENSIONS FOR THE ROBINSONS RANGE. We cannot emphasis how important it is to have a proper base for your Robinsons Greenhouse to be erected upon. It is essential that the BASE IS FLAT, LEVEL AND SQUARE AS WELL AS BEING SUBSTANTIAL enough to take the weight of the greenhouse including its 4mm glass.
  • Page 7 Feed glazing rubber into each glazing bar and PARTITION trim to length. Notice that some channels are ONLY REFER TO only used on a partition. Applying a lubricant to SEPARATE MANUAL the aluminium channels will speed up insertion. PARTITION ONLY REFER TO SEPARATE MANUAL...
  • Page 8 8 X 2 Part No Quantity D014 2517 D014 D021 2514 D066 1676 D103 1787 D174 10mm 15mm D021 Rubber 1000 10 X 2 Part No Quantity D015 3137 D022 3134 D015 D066 1676 D103 1787 D174 10mm 15mm D022 Rubber 1000 12 X 2...
  • Page 9 D103 10mm D066 TRANSIT BOLT ON 15mm DIAGONALS D066 D103 15mm...
  • Page 10 Part No Quantity Part No mm Quantity D111 D048 1676 D055 2422 D174 D056 2126 D227 D057 1830 D105 1918 M6X10 D110? 1585 M6X15 D110R 1585 M6NUT D740 4466 D741L 2431 D742R 2431 D741L 10mm D742R 10mm 10mm 10mm D110 D110R D057 D057...
  • Page 11 D741L D741L D742R D111 D055 D741L D110 D048 D105 D048 D105 D056 D174 D740 D740...
  • Page 12 Part No Quantity Part No Quantity D048 1676 D111 D055 2422 D174 D056 2126 D227 D057 1830 D105 1918 M6X10 D740 4466 M6X15 D741L 2431 D742R 2431 M6NUT D743 4380 D744 2718 D741L 10mm D742R 10mm 10mm 10mm D743 D057 D057 D055 D055...
  • Page 13 D741L D742R D741L D055 D744 D111 D741L D743 D048 D105 D048 D105 D056 D174 D740 D740...
  • Page 14 EQUAL...
  • Page 15 Part No Quantity Part No Quantity Part No mm Quantity 8’ 10’ 12’ D001 2517 D002 3137 D003 3757 D737 2427 D737 2427 D737 2427 D113 2510 D918 3130 D034 3750 D126 D126 D126 D128 1015 D128 1015 D128 1015 RUBBER RUBBER 1000...
  • Page 16 Part No mm Quantity Part No mm Quantity D220 D866 PLUS SCREW D205 D863L D863R BOLM6X11 SYNUTM6 D862 D1208 8 X 12 S/T 1 of - FS6017 610 x 610 8 x 19 S/T pane FS6018 D863R D863R D866 D863L D866 D1208 1 of -...
  • Page 17 D862 D863L D862 FLIP VIEW D119...
  • Page 18 Part No mm Quantity Part No mm Quantity D079 PLUS BOLM6X11 FLUFF D114 BOLM6X15 SYBOLM6 X11CROP SYNUTM6 D114 D079 D114 FLIP VIEW...
  • Page 19 D1208 GLASS D889 GLASS D889 GLASS...
  • Page 20 Part No mm Q Part No mm Q D232 1824 1 D094 D233 D911 D090 + D347 lock = D301 D911 1824 1 555 x 812 P053 555 x 812 pane D092 + D156 strike = pane D303 1824 1 D225 1824 1 D093...
  • Page 21 D911 555 x 812 pane D912 D232 555 x 922 pane D912 555 x 922 pane D307 D225 D097 D225 D840B P053...
  • Page 22 PART Section Size (mm) D833 D833 D746 2718 D823 D823 D748 D749 D812 1660 D815 1830 D748 D818 2126 D812 D822 2422 D823 D870 D739 1830 D826 D827 D829 D836 D836 D829 D827 D826 D813 1675 D813 D815 D818 D814 D814 D818 D815...
  • Page 23 ROOF PANES OVERLAP PART Size (mm) 8’ 10’ 12’ D1206 610 X 1374 16 18 D889 R 610 X 1855 D1208 610 X 610 D1254 610 X 305 18 20 D904 N 305 X 1374 D905 305 X 305 D911 555 X 812 D912 555 X 922...
  • Page 24 D220 D220...
  • Page 25 D862 D079...
  • Page 26 Part No Part No D163 D865 1210 D150 D845 2510 D086 BOLM6X15 SYNUTM6 2510 D085 D845 D845 D055 D836 D814 D163 D845 D055...
  • Page 27 N/A 7 D150 D086 D085 D865 N/A 4 D745 D865 D845...
  • Page 28 Part No D861 D088 D088 D860 D861 D087...
  • Page 29 Part No Quantity FS6018 D312 D204L O4mm D204R through FS6018 metal only FS6018 D204R D312 Part No N/A 2 D745 D223/B D745 D748 D823 D748 D749 D833 D899 D823 D899 D749 D223 D833 NOTCH NOTCH NOTCH DOWN DOWN DOWN...
  • Page 30 O7mm...
  • Page 31 Part No Quantity D168L D168R (handle) D165 D166 FS6013 D166 D166 D168L D168R D165 D165 INTERNAL VIEW D729TG - 100 x 525 panes x 6 PINCH ALL GLASS RETAINERS BEFORE GLAZING D165...
  • Page 32 3 slat Example: 2x 4’ shelves ‘ST0304’ = 8’ run 10mm crop D2013 D048 15mm 10mm 10mm D066 D048 D2014 10mm crop D2002 =1240mm D2002 =1240mm D2014 D2021 D2003 =1860mm...
  • Page 33 7 slat Example: 2x 4’ staging ‘ST0704’ = 8’ run D048 D2045 D2043 D066 D048 10mm D2044 crop 10mm crop 10mm 10mm 10mm D2046 D2046 D2047 D2043 D2045 D2044 D2042 D2042 D2042 D2002 =1240mm 10mm 10mm D2002 =1240mm FINISH START D2003 =1860mm D2002...
  • Page 34 10 slat Example: 2x 4’ staging ‘ST01004’ = 8’ run D048 D174 D174 D048 D2043 D2051 D2045 D066 D2044 D2052 10mm crop 10mm crop 10mm D2049 10mm D2043 10mm D2048 D2048 D2045 D2044 D2050 D2050 D2050 D2002 =1240mm 10mm 10mm D2002 =1240mm START...
  • Page 35 D214 D203 D201 D119 D119 D208 D211 D048 D202 D841 D119 D211 D048 D207 D206 D048...
  • Page 36  End finials need to be pinched onto ridge using ‘DV282’ grub screws.  Depending on your ridge length a half cresting may need to be cut or/ and some spacer bar ‘DV281’ cut into two equal sections.  Each finial and cresting piece needs to be siliconed ‘D119’ into place. D119 DV281 DV282...
