Dynojet POWER COMMANDER V Installation Instructions page 3

FIG.A
FIG.B
FIG.C
20-010 www.powercommander.com
1
2
3
4
5
Ground wire
6

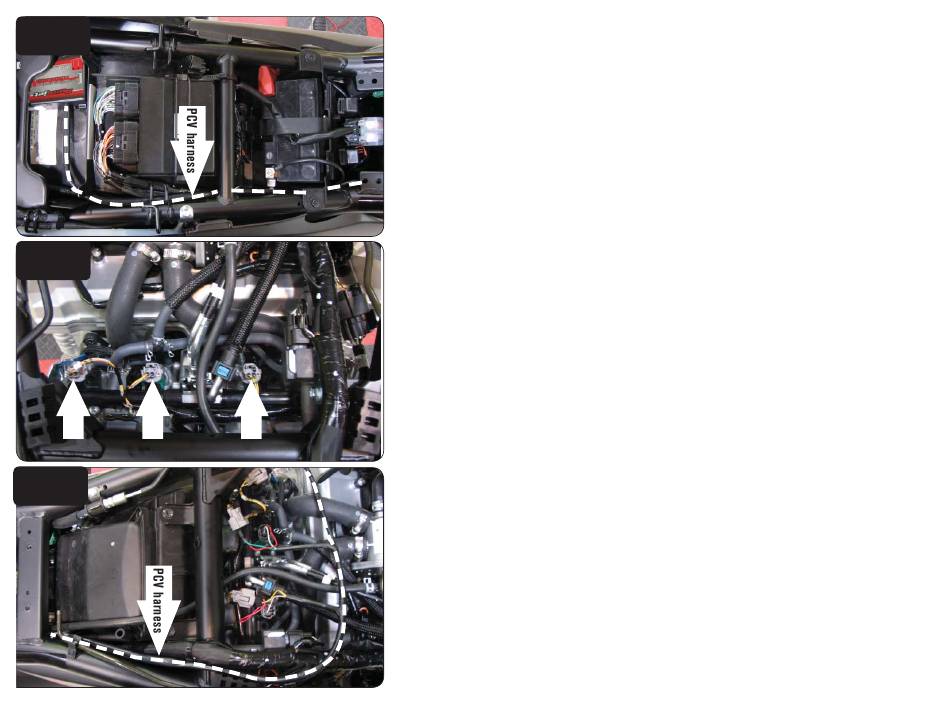

Remove the seat
Remove the fuel tank.
Lay the PCV in the tail section.
Route the wiring harness from the PCV under subframe crossover and go
towards the throttle bodies.
Unplug the stock wiring harness from each of the injectors (Fig. B).
Injector #4 is hidden in this picture by the main wiring harness.
Plug the connectors from the PCV inline of the stock injectors and the stock
wiring harness (Fig.C).
2009 Suzuki Bandit 1250 PCV - 3
