Right I/O-Board; Removing The Right I/O-Board - Dell Alienware m15 R3 Service Manual

Steps
1. Using the alignment posts, adhere the keyboard-controller board into place on the palm-rest assembly.
2. Replace the two screws (M2x1.9) that secure the keyboard-controller board to the palm-rest assembly.
3. Connect the keyboard-controller board-cable to the keyboard-controller board and close the connector latch.
4. Connect the keyboard cable to the keyboard-controller board and close the connector latch.
5. Connect the keyboard-backlight cable to the keyboard-controller board and close the connector latch.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in

Right I/O-board

Removing the right I/O-board

Prerequisites
1. Follow the procedure in
2. Remove the base cover.
3. Remove the battery.
4. Remove the M.2 2230 solid-state
5. Remove the M.2 2280 solid-state
About this task

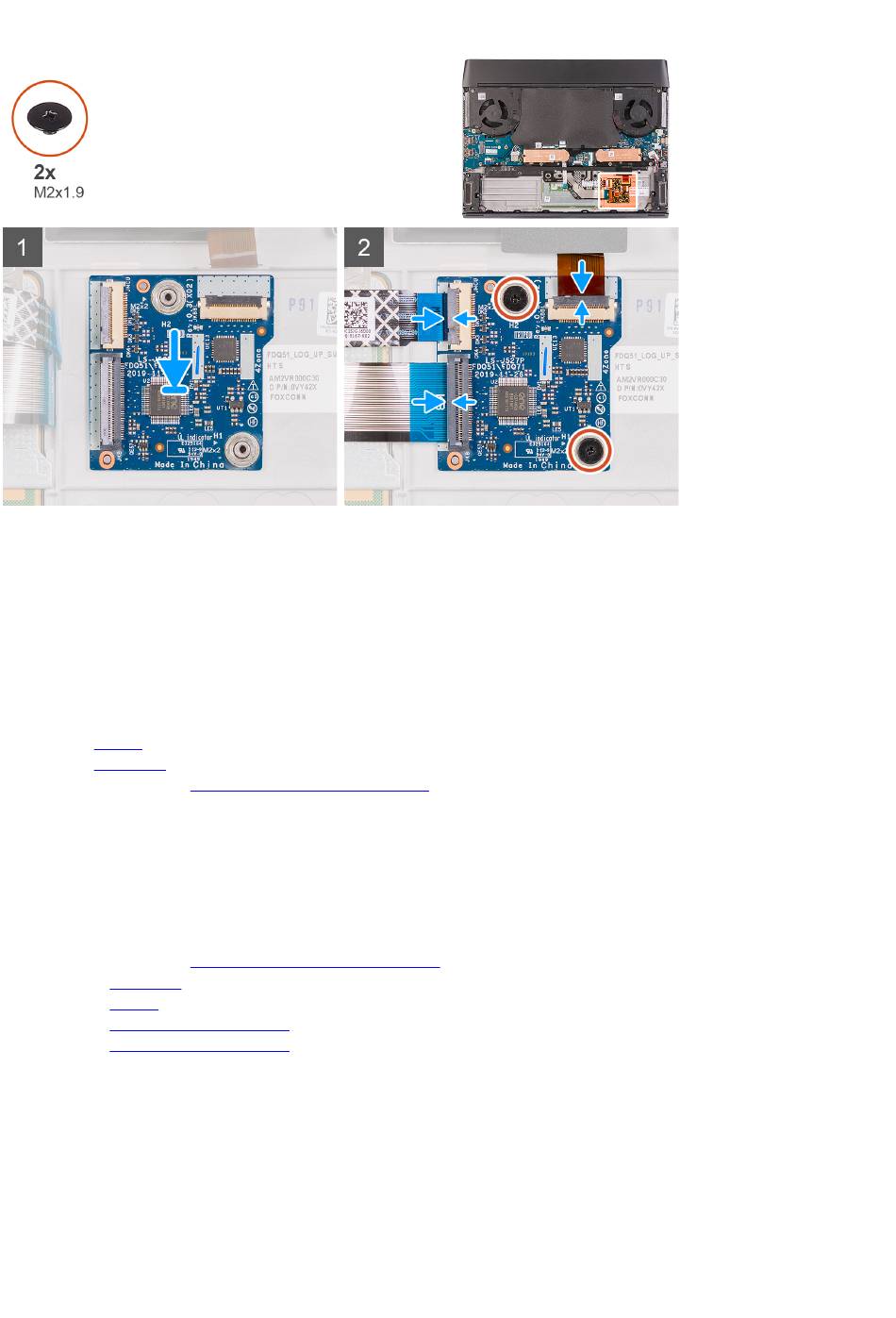

The following image(s) indicate the location of the right I/O-board and provides a visual representation of the removal procedure.
40
After working inside your
Before working inside your
drive. (if it is installed in the right M.2 slot)
drive. (if it is installed in the right M.2 slot)
computer.
computer.
