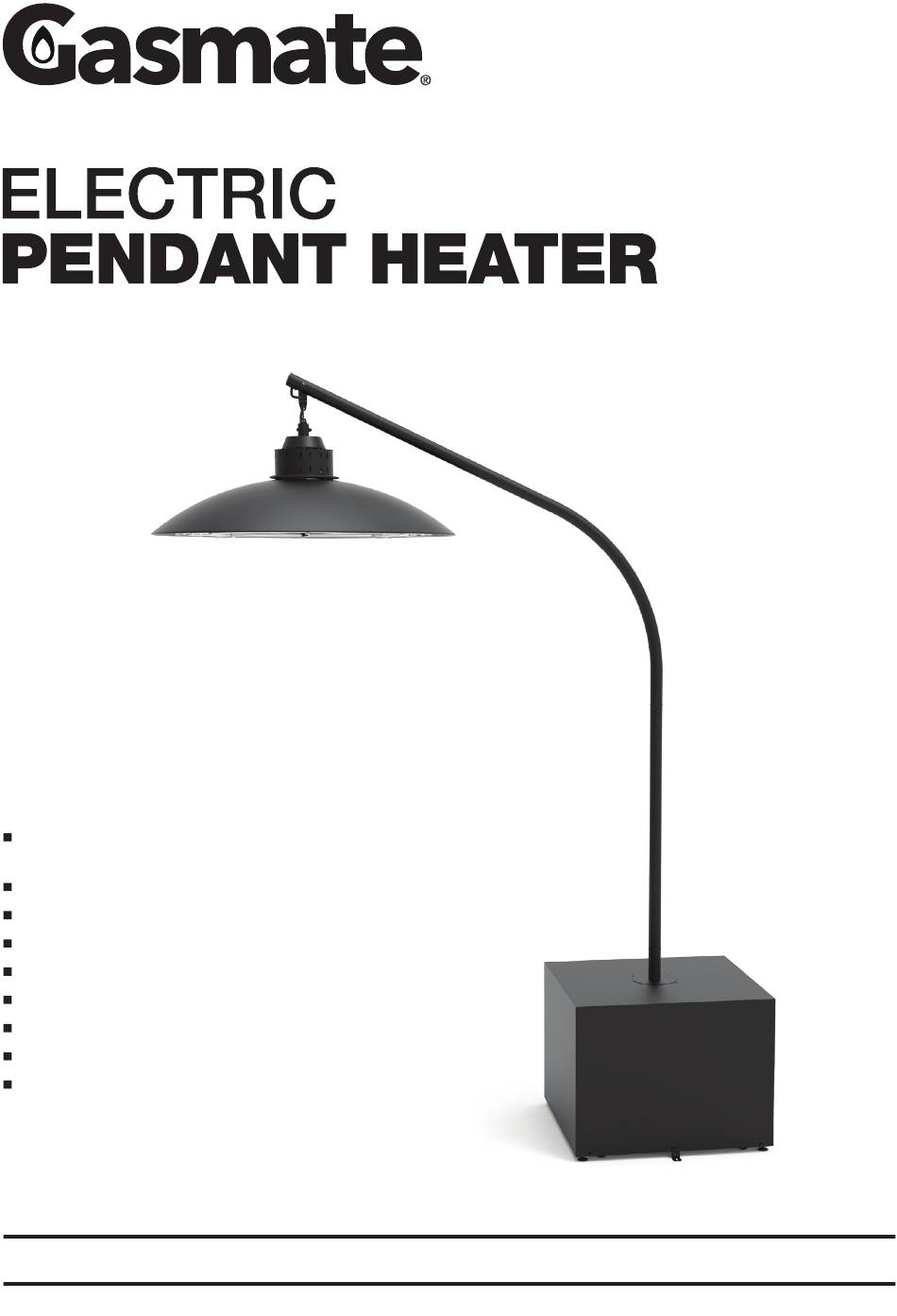

Gasmate EH714 Instructions Manual

Electric pendant heater

Advertisement

Quick Links

Model No. EH714
The ideal solution for extending the outdoor
entertaining season
Can be used indoors or outdoors
Elegant black finish
Stainless steel tube heating element
2400W Maximum output
LED Light
Bluetooth speaker
Remote control
Includes post and weighted base
Important: Retain these instructions for future use
03869 03/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EH714 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gasmate EH714

  • Page 1 Model No. EH714 The ideal solution for extending the outdoor entertaining season Can be used indoors or outdoors Elegant black finish Stainless steel tube heating element 2400W Maximum output LED Light Bluetooth speaker Remote control Includes post and weighted base Important: Retain these instructions for future use...
  • Page 2: Safe Operation

    INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS Installation Safety Always ensure you select the correct fixing accessories Before attempting to operate this heater, the following which suit the particular material you are attaching to, if basic safety precautions should be taken to reduce the risk of fire, electric shock and personal injury. It in doubt please discuss with your local retailer or local is important to read the instruction manual and to hardware store. This heater is not designed for use understand its’...
  • Page 3: Specific Safety Instructions

    SPECIFIC SAFETY INSTRUCTIONS WARNING • Always turn the heater OFF at the unit switch and the power point switch when not in use for extended Do not use the heater in areas where there is a risk of periods of time. explosion or fire from flammable gases. Ensure that • Always allow the heater to cool, about one (1) hour the heating area is kept clear of combustible materials. after the heater has been turned off, before cleaning Do not use the heater in damp areas, without suitable the heater.
  • Page 4: Electrical Data

    ELECTRICAL DATA IMPORTANT Technical Specification This product is fitted with a sealed electrical connection Heater EH714 plug that is compatible with the heater, the mains supply for Australia and meets the requirements of international Voltage 220-240V AC 50Hz standards. This heater must be connected to a supply voltage that is equal to that stated on the rating label. Input Wattage 2000-2400W If the mains connection plug or power cord becomes Unassembled unit weight 50Kg (inc. base)
  • Page 5 ASSEMBLY INSTRUCTIONS Note: Remove all transit packaging and protection 3. Pull the excess power cord between the Heater material before starting to assemble. Dispose of in Head (#1) & Upper Tube (#8) into the other tubes. Do not make too tight, have enough excess cord an environmentally friendly way. to be able to put your fingers between the excess Note: In order not to damage or scratch parts/components cord and the spring extension (#3) this will ensure it is recommended that a blanket is place on the ground that the Heater Head (#1) is free to move when you...
  • Page 6 Heater Base, FIG B 1. Unscrew all of the 8 Screws M6*12 (#11) and the 2 Screws M4*20 ( #17) which attach the Base Cover (#16) to the Base (#20) and remove the Base Cover (#16). 2. Screw the floor bracket (#30) to the floor bracket mount (#29) which is located on the side of base (#20) using screw M6*12 (#11). 3. Remove all 4 of the empty Water Tanks (#21), fill them full with water for use later. FIG B...
  • Page 7 Heater Base, FIG C 5. Detach the Junction Board (#26) from the Base Cover (#16) by unscrewing and removing the 4 Screws M6*12 3. Lay the Base Cover (#16) on its side with the cut out (#11), now slide the Base Cover up the assembled visible and to the left. poles so that you can access the bottom bracket on the 4. Slide the power cord and assembled tubes (#19), Lower Tube (#19). Use caution when sliding the base through the Base Cover (#16) carefully. Make sure cover, as you do not want to scratch the assembled the power cord and Male Cord Connector (#23) are poles, suggest 1 person lift the assembled poles slightly not damaged when getting through the hole on the while the other person slides the base cover.
  • Page 8 Heater Base, FIG D 9. There are 4 Screw Feet (#24) at each corners under the Base (#20) to make the heater more stable. 1. Carefully stand the heater up. 1 person will need to support the heater. Lift the Base Cover (#16) up a. To adjust the screw feet unscrew, anti-clockwise and place the 4 FULL Water Tanks (#21) into the until firm against the ground, making sure you base. do all 4 screw feet. 2. Rest the Base Cover (#16) on top of the 4 FULL b. To move the heater all 4 screw feet will need to water tanks. be screwed in, clockwise. 3. Connect the Male and Female Power Cord c. Once heater has been re-located ensure that Connectors (#23 & #9) securely. you unscrew all 4 screw feet, anti-clockwise until firm against the ground. 4. Position the Power Cord and Connectors so that they will not get caught when the base cover is in NOTE: If the heater is being left unattended when position.
  • Page 9: Heater Positioning

    Heater Positioning Using Heater, FIG E NOTE: If heater is being left unattended when not in Position heater and ensure that the screw feet are use, it is highly recommended the floor bracket be used against the ground and that the heater is stable. and the heater be firmly secured to the floor. Always 1. Plug into 240V AC wall socket and turn ON. ensure the correct fastener is used for the type of floor Note: All outdoor power points must be installed by the bracket is being attached to, if unsure discuss with a qualified electrician and should be of a waterproof your local hardware store, refer to page 8 for details of...
  • Page 10: Replacing Parts

    Rotating Heater Head, FIG F Cleaning NOTE: Ensure you have a minimum of 2m clearance Always ensure that the heater has been left for one (1) to rotate the head otherwise the heater head will hit the hour to cool before cleaning. obstacle. 1. Turn off and disconnect from mains power, allow to cool.
  • Page 11: Warranty Statement

    WARRANTY STATEMENT GASMATE BARBEQUES & ACCESSORIES If no fault is found the product will be returned and any costs associated with the service will be charged to PRODUCT RANGE the owner. SITRO GROUP AUSTRALIA (S.G.A.) warrants the Products sent freight forward will not be accepted. In purchaser of this product against defects in workmanship...
  • Page 12 For any queries or assistance call Customer Service (Australia Only) 1300 174 876 Hours of operation: Monday to Friday 8am - 5pm EST Do not return to place of purchase. Keep your purchase receipt, this will be required to make any claims under the 12 month warranty.
