Johnson T7xe Instructions Manual

Treadmill console, elliptical, ascent & bike consoles
Hide thumbs

Advertisement

Quick Links

Download this manual
Treadmill Console Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the T7xe and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Johnson T7xe

Summary of Contents for Johnson T7xe

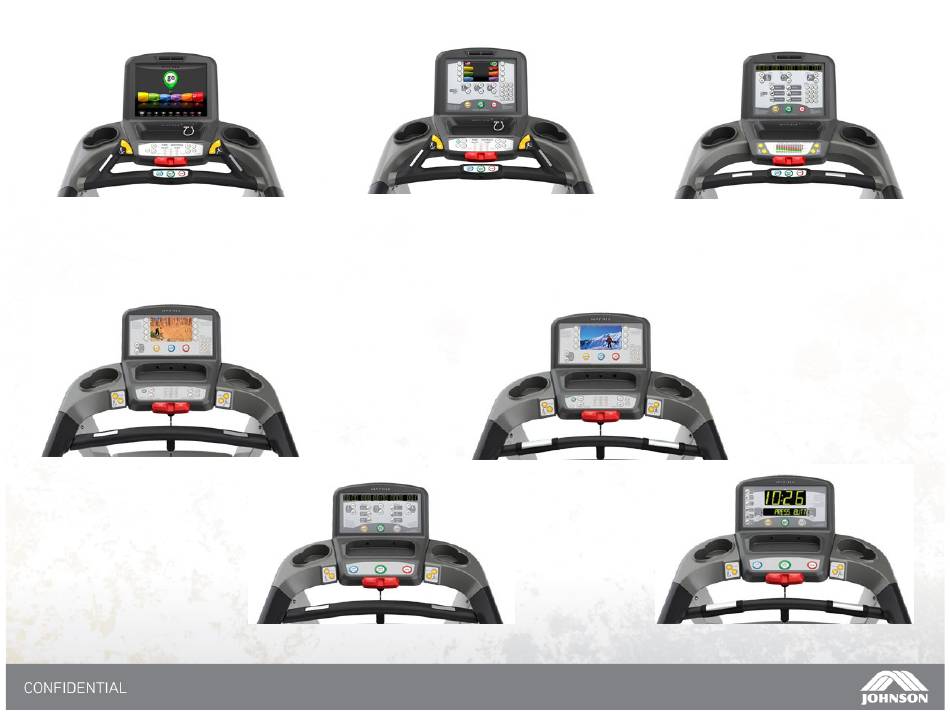

  • Page 1 Treadmill Console Instructions...
  • Page 2 T7xe Consoles Manager Mode (software, tv) To enter Manager Mode, press "ENTER 1001 ENTER" on the number keypad and Manager Mode will appear on the display. Manager Mode is divided into 6 tabs, located on the left side of the screen.
  • Page 3 T7xe Consoles Engineering Mode (auto calibrate) To enter Engineering Mode, press "ENTER 2001 ENTER" on the number keypad and Engineering Mode will appear on the display. Manager Mode is divided into 5 tabs, located on the left side of the screen.
  • Page 4 T7xe Consoles Service Mode (date/time, serial #, machine type) To enter Service Mode, press "ENTER 3001 ENTER" on the number keypad and Service Mode will appear on the display. Service Mode is divided into 4 tabs, located on the left side of the screen.
  • Page 5 T7x Consoles Manager Mode (software, tv) To enter Manager Mode, press "ENTER 1001 ENTER" on the number keypad and Manager Mode will appear on the display. Manager Mode is divided into 6 tabs, located on the left side of the screen.
  • Page 6 T7x Consoles Engineering Mode (auto calibrate) To enter Engineering Mode, press "ENTER 2001 ENTER" on the number keypad and Engineering Mode will appear on the display. Engineering Mode is divided into 5 tabs, located on the left side of the screen. They are Calibrations, Statistics, Errors, Clubs, and Club Choose a tab by touching the screen over the desired tab.
  • Page 7 T7x Consoles Service Mode (date/time, serial #, machine type) To enter Service Mode, press "ENTER 3001 ENTER" on the number keypad and Service Mode will appear on the display. Service Mode is divided into 4 tabs, located on the left side of the screen.
  • Page 8 T5x Consoles Manager Mode (software) To enter Manager Mode, press and hold the ELEVATION DOWN and SPEED DOWN buttons for three seconds Use the ELEVATION UP or SPEED UP and DOWN buttons to scroll through the different manager settings Press ENTER to edit the selected manager setting. Press the VIEW button to go back Use the ELEVATION or SPEED UP and DOWN buttons to set the variable...
  • Page 9 T5x Consoles Engineering Mode (auto calibrate, machine type) To enter Engineering Mode, press and hold the ELEVATION DOWN and SPEED DOWN buttons for three seconds until “Manager” appears Use the ELEVATION UP or SPEED UP buttons to scroll to Engineering Press ENTER to edit the selected Engineering setting.
  • Page 10 T5x Consoles Service Mode (serial #) To enter Service Mode, press and hold the ELEVATION DOWN and SPEED DOWN buttons for three seconds until “Manager” appears Use the ELEVATION UP or SPEED UP buttons to scroll to Service Press ENTER to edit the selected Service setting. Press the VIEW button to go back Use the ELEVATION or SPEED UP and DOWN buttons to set the variable...
  • Page 11 T3xe and T1xe Consoles Manager Mode (software, tv) To enter Manager Mode, press "ENTER 1001 ENTER" on the number keypad and Manager Mode will appear on the display. Manager Mode is divided into 6 tabs, located on the left side of the screen.
  • Page 12 T3xe and T1xe Consoles Engineering Mode (auto calibrate) To enter Engineering Mode, press "ENTER 2001 ENTER" on the number keypad and Engineering Mode will appear on the display. Engineering Mode is divided into 5 tabs, located on the left side of the screen.
  • Page 13 T3xe and T1xe Consoles Service Mode (date/time, serial #, machine type) To enter Service Mode, press "ENTER 3001 ENTER" on the number keypad and Service Mode will appear on the display. Service Mode is divided into 4 tabs, located on the left side of the screen.
  • Page 14 T3x Consoles Manager Mode (software) To enter Manager Mode, press and hold the INCLINE DOWN and SPEED DOWN buttons for three seconds until “Manager” appears To enter the Manager Mode, press ENTER To scroll through the Manager Mode, press the INCLINE or SPEED keys Press ENTER when the variable you wish to change appears on the screen...
  • Page 15 T3x Consoles Engineering Mode (auto calibrate, machine type) To enter Engineering Mode, press and hold the INCLINE DOWN and SPEED DOWN buttons for three seconds until “Manager” appears Press the INCLINE or SPEED buttons until Engineering Mode appears and press ENTER To scroll through the Engineering Mode, press the INCLINE or SPEED keys Press ENTER when the variable you wish to change appears on the...

  • Page 16: Service Mode

    T3x Consoles Service Mode To enter Service Mode, press and hold the INCLINE DOWN and SPEED DOWN buttons for three seconds until “Manager” appears Press the INCLINE or SPEED buttons until Service Mode appears and press ENTER To scroll through the Service Mode, press the INCLINE or SPEED keys Press ENTER when the variable you wish to change appears on the screen...
  • Page 17 T1x Consoles Manager Mode (software) To enter Manager Mode, press and hold the INCLINE DOWN and SPEED DOWN buttons for three seconds until “Manager” appears To enter the Manager Mode, press ENTER To scroll through the Manager Mode, press the INCLINE or SPEED keys Press ENTER when the variable you wish to change appears on the screen...
  • Page 18 T1x Consoles Engineering Mode (auto calibrate, machine type) To enter Engineering Mode, press and hold the INCLINE DOWN and SPEED DOWN buttons for three seconds until “Manager” appears Press the INCLINE or SPEED buttons until Engineering Mode appears and press ENTER To scroll through the Engineering Mode, press the INCLINE or SPEED keys Press ENTER when the variable you wish to change appears on the...
  • Page 19 T1x Consoles Service Mode To enter Service Mode, press and hold the INCLINE DOWN and SPEED DOWN buttons for three seconds until “Manager” appears Press the INCLINE or SPEED buttons until Service Mode appears and press ENTER To scroll through the Service Mode, press the INCLINE or SPEED keys Press ENTER when the variable you wish to change appears on the screen...
  • Page 20 Console Errors Codes: T7xe & T7x Code Description Solution Check that the incline motor cable is connected at the MCB. From the Engineering Mode, run calibration. If calibration passes, delete error log as unit is operational. If calibration fails, press Up or Down buttons unitl Elevation Minimum.
  • Page 21 Console Errors Codes: T7xe & T7x (continued) Code Description Solution Check the emergency stop for function. If not working, replace 0x02B1 The emergency circuit on the interface board failed the stop switch. If stop switch replacement does not resolve issue, replace the console.
  • Page 22 Console Errors Codes: T5x Code Description Solution From the Engineering Mode, find the RPM parameter. Press Actual speed is higher than commanded speed by limit and is enter and it should read 1.0 MPH / 1.6 KPH and belt should 0x0044 accelerating start.
  • Page 23 Console Errors Codes: T5x (continued) Code Description Solution Power unit off / on. If issue is not resolved by resetting the 0x02AF Checksum failure on non-critical NOVRAM loading power, replace the daughter board. Power unit off / on. From Engineering Mode, arrow Up or Error (Drive Fault Report) created by the motor controller - only Down to RPM Parameter is showing.
  • Page 24 Console Errors Codes: T3xe & T3x Code Description Solution Reconnect the incline motor. Check the incline motor connection to the 0x0140 Incline motor failure elevation rack. Replace incline motor if needed. Check the amp draw of the treadmill with a load. Change the running deck and belt if a high amp draw is present.
  • Page 25 Console Errors Codes: T1xe & T1x Code Description Solution Check all connection from the incline motor. Check the incline motor 0x0140 Incline motor failure connection to the elevation rack. Replace incline motor if needed. Check the amp draw of the treadmill with a load. Change the deck or running belt if high amp draw is present.
  • Page 26 Elliptical, Ascent & Bike Consoles...
  • Page 27 A7xe & E7xe Consoles Manager Mode (software, tv) To enter Manager Mode, press "ENTER 1001 ENTER" on the number keypad and Manager Mode will appear on the display. Choose a tab by touching the screen over the desired tab. Each of the tabs has options that will appear once you have chosen that particular tab.
  • Page 28 A7xe & E7xe Consoles Engineering Mode (auto calibrate) To enter Engineering Mode, press "ENTER 2001 ENTER" on the number keypad and Engineering Mode will appear on the display. Choose a tab by touching the screen over the desired tab. Each of the tabs has options that will appear once you have chosen that particular tab.
  • Page 29 A7xe & E7xe Consoles Service Mode (date/time, serial #, machine type) To enter Service Mode, press "ENTER 3001 ENTER" on the number keypad and Service Mode will appear on the display. Choose a tab by touching the screen over the desired tab. Each of the tabs has options that will appear once you have chosen that particular tab.
  • Page 30 A7x, E7x, H7x, R7x & U7x Consoles Manager Mode (software, tv) To enter Manager Mode, press "ENTER 1001 ENTER" on the number keypad and Manager Mode will appear on the display. Select the key next to the setting that needs to be changed, and follow the prompts to change Press ENTER button once the desired settings are correct to save Press the HOME to return to normal operation...
  • Page 31 A7x, E7x, H7x, R7x & U7x Consoles Engineering Mode (auto calibrate) To enter Engineering Mode, press "ENTER 2001 ENTER" on the number keypad and Engineering Mode will appear on the display. Select the key next to the setting that needs to be changed, and follow the prompts to change.
  • Page 32 A7x, E7x, H7x, R7x & U7x Consoles Service Mode (date/time, serial #, machine type) To enter Service Mode, press "ENTER 3001 ENTER" on the number keypad and Service Mode will appear on the display. Select the key next to the setting that needs to be changed, and follow the prompts to change.
  • Page 33 A5x, E5xc, H5x, R5x & U5x Consoles Manager Mode (software, tv) To enter Manager Mode, press and hold down the UP and DOWN LEVEL keys. Continue to hold down these keys until the display reads “Manager Mode” and press ENTER. Scroll through the list of options by using the UP and DOWN LEVEL buttons.
  • Page 34 A5x, E5xc, H5x, R5x & U5x Consoles Engineering Mode and Service Mode (Service mode 6 = auto calibrate) To enter Engineering Mode or Service Mode, hold the UP and DOWN LEVEL buttons for 3 seconds until Manager appears on the LED display.
  • Page 35 A3x, E3xc, H3x, R3x & U3x Consoles Manager Mode (machine type) To enter Manager Mode, press and hold down the UP and DOWN LEVEL keys. Continue to hold down these keys until the display reads “Manager Mode” and press ENTER. Scroll through the list of options by using the UP and DOWN LEVEL buttons.
  • Page 36 A3x, E3xc, H3x, R3x & U3x Consoles Service Mode To enter Service Mode, hold the UP and DOWN LEVEL buttons for 3 seconds until Manager appears on the LED display. Press the UP and DOWN LEVEL buttons to scroll to Service Modes. Press ENTER once the desired settings are correct to save Press HOME to return to normal operation...
  • Page 37 U1x & R1x Consoles Manager Mode (software, model) To enter Manager Mode, press and hold down the LEVEL keys. Continue to hold down these keys until the display reads “Manager Mode” and press ENTER. Scroll through the list of options by using the LEFT / RIGHT arrows or the LEVEL arrows buttons.
  • Page 38 Console Errors Codes: E7xe, E7x, E7xc & E5xc Code Description Solution When the UCB implements a command, the LCB is not receiving Check the machine type in Engineering Mode. Check the 0x0441 this command console cable connections at the UCB and LCB 0x02AB Machine type error Set the correct machine type in Engineering Mode...
  • Page 39 Console Errors Codes: A7xe, A7x & A5x When the UCB implements an incline command, there is no Replace the LCB or incline motor. Test first by swapping 0x0140 movement after 3 seconds parts from another unit on site to determine which is needed. The inlcine position has a difference of over 3% and is not Look for misalignment of the incline motor, replace if 0x0142...
  • Page 40 Console Errors Codes: A7xe, A7x & A5x (continued) Code Description Solution Check the amperage of the ECB, replace if needed. If okay, 0x02B3 Resistance type error replace the LCB. Test first by swapping parts from another unit on site. Check the console cable connections, replace the LCB or If the LCB does not return a message to the UCB within 3 0x04A0 UCB as needed.
