Prepared by:
Rich Degenhardt
Effective Date:
7/1/2015
R
T
EQUIRED
OOLS
3/16" and 4MM Allen wrench
P
ROCEDURE
Follow these instructions to assemble a rubber platform:

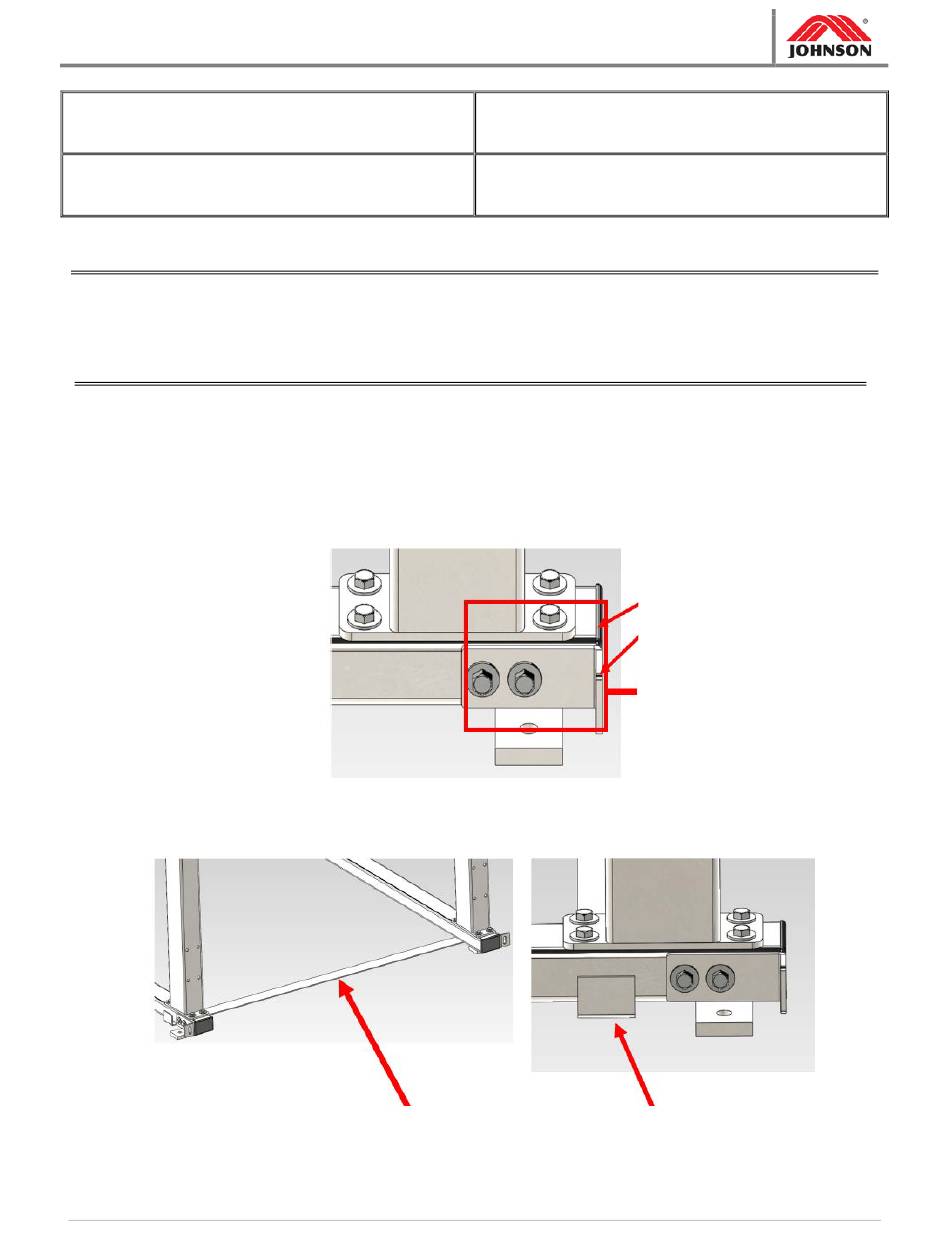

1. Using (4) 3/8-16 x 3/4" bolts and (4) 5/16" flat washers, attach the platform mounting bracket to both
sides of the frame. Leave the bolts loose for adjustment.
Note: Place the outside edge of the mounting bracket flush with the outside of the plastic cap.
2. Install the frame support under the power rack mainframe. It should be located just behind the
platform mount.
1| Revision Date: 5/11/2017 | Revised by: EM
Assembly Guide – Rubber Platform
Date Prepared:
6/18/2015
Models Affected:
Magnum and Varsity A-05, D-05, and MR-04
Series Power Racks
