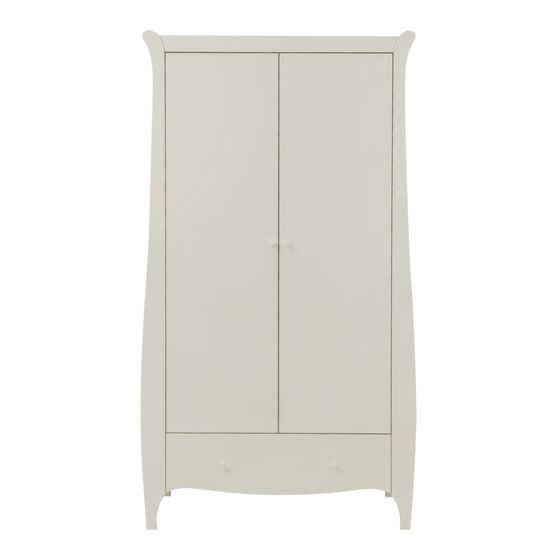

Roma
Wardrobe
Assembly Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the Roma and is the answer not in the manual?

Questions and answers

Summary of Contents for Tutti Bambini Roma

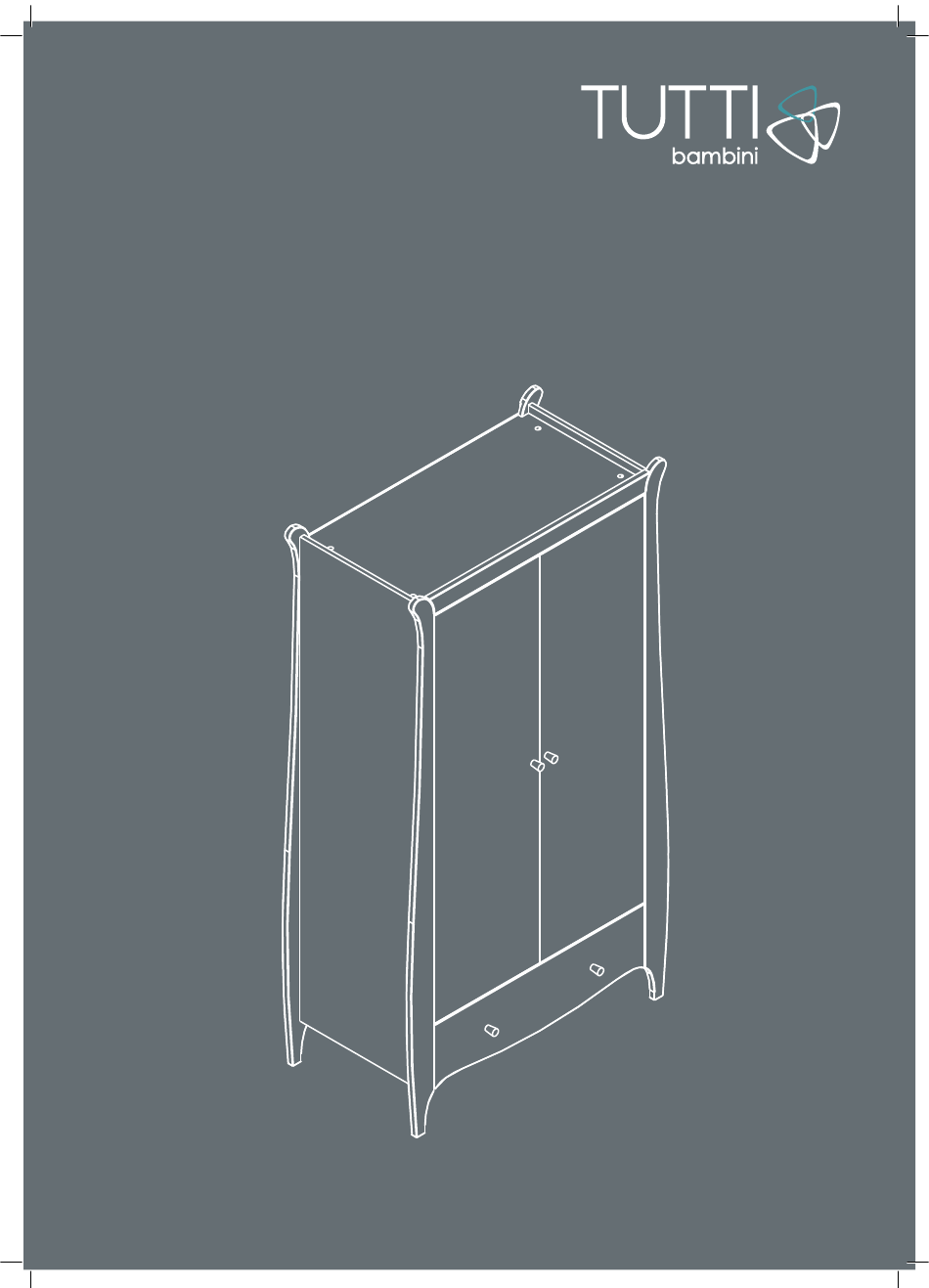

  • Page 1 Roma Wardrobe Assembly Instructions...
  • Page 2 Conforms to BS EN 14749:2005 Tutti Frutti Direct Ltd. Unit 3, 1000 North Circular Road, London, UK, NW2 7JP t: +44 (0) 208 368 5800 e: customerservice@tuttibambini.co.uk www.tuttibambini.com Roma Wardrobe 211359 IMPORTANT: RETAIN FOR FUTURE REFERENCE. READ CAREFULLY...
  • Page 3 • Damaged part number • A photo or video of the damaged part Tutti Bambini guarantee your product against faulty manufacutre for a period of 12 months from date of receipt of purchase. This does not affect your statutory rights...
  • Page 4: Parts List

    Parts List Hardware List 1 pc 26 pc 4 X 30 6.5x40mm 200x30mm 4 pc 26 pc Metal handle 15x11.5mm 4x22mm 1 pc 4 pc Hinge shelf pin 1550mm 4 pc 32 pc 1 pc 3.5x14mm 4x16mm 1 pc 34 pc 1 pc wooden dowel 864mm...
  • Page 5 Assembling into wardrobe E x 2 PCS B x 8 PCS A x 26 PCS Assemble metal dowels A x 26. Assemble locking nuts 8 x B. Assemble rod support E to side. B x 4 PCS N x 16 PCS Assemble locking nuts 4 x B.
  • Page 6 Assembling into wardrobe N x 18 PCS F x 1 PCS B x 7 PCS B x 7 PCS F x 1 PC N x 18 PCS F x 1 PCS F x 1 PCS Put wooden dowels 18 x N and Iron pin 1 x F Assemble locking nuts 7 x B.
  • Page 7 Assembling into wardrobe E x 1 PCS Assemble rod E. Assemble antl falling hardware J. Fittings to attach the strap to the wall are not provided and suitable fittings for the wall type should be used. Caution: The drawer is not provided with end stops that prevent it from being pulled out of the unit www.tuttibambini.com...
  • Page 8: Safety Advice And Maintenance

    4. WARNING: Do not use the wardrobe if it is damaged or broken or there are parts missing. Use only spare parts approved by Tutti Bambini. 5. WARNING: Do not place the wardrobe in or near the vicinity of open fires or other surfaces of strong heat, such as gas or electric fires.
  • Page 9 Notes...
  • Page 10 Join Us Follow us on Facebook TuttiBambiniUK Follow us on Twitter TuttiBambiniUK Follow us on Instagram TuttiBambiniUK...
  • Page 11 www.tuttibambini .com...
