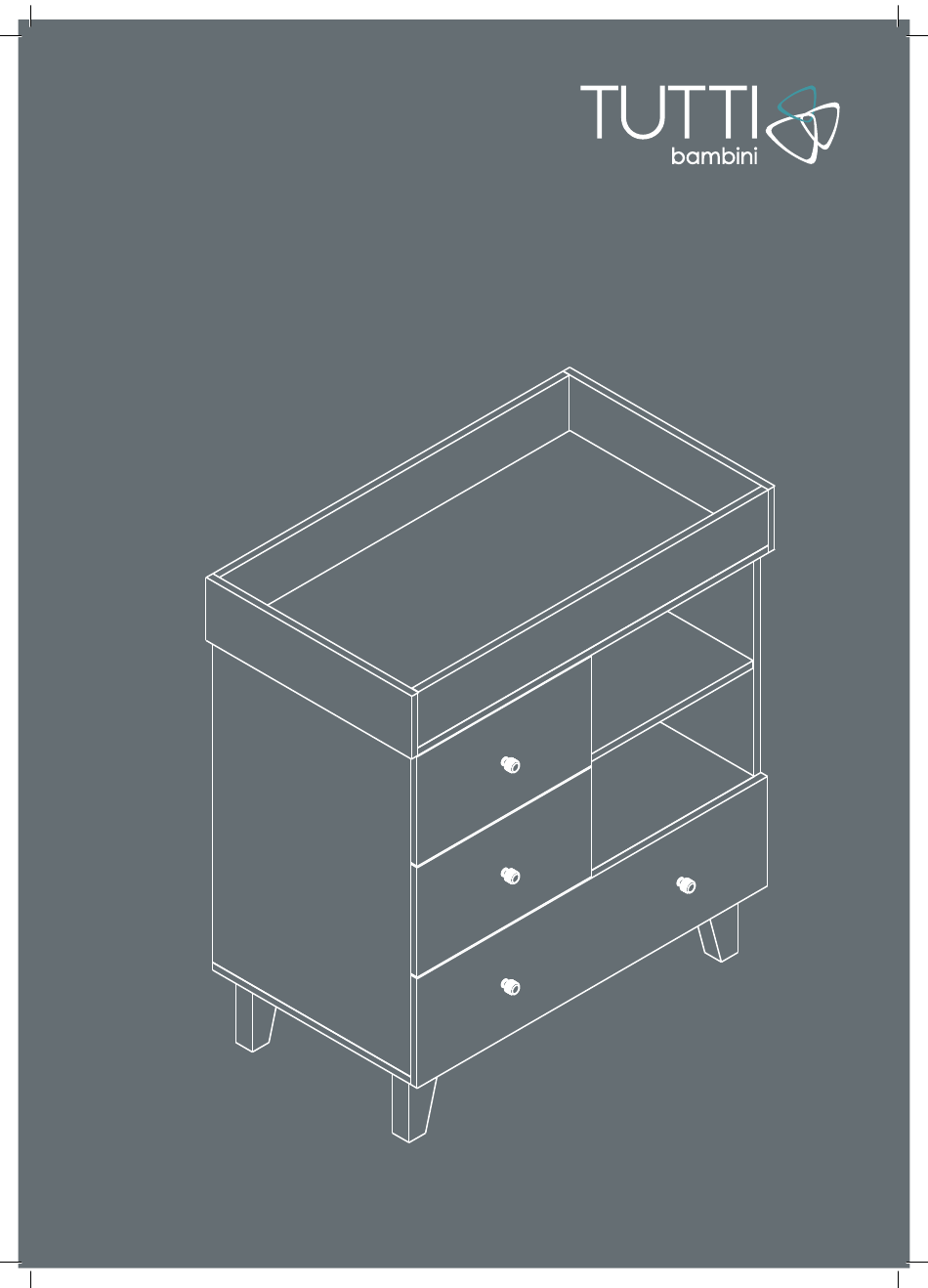

- Page 1 Como Chest Changer Assembly Instructions...
- Page 2 Conforms to AS/NZS 4935:2009+A1:2013 Il Tutto International. PO Box 616 South Melbourne VIC 3205. t: 1300 780 548 e: hello@iltutto.com www.iltutto.com.au Como Chest Changer 211481 IMPORTANT:RETAIN FOR FUTURE REFERENCE. READ CAREFULLY...
- Page 3 • Damaged part number • A photo or video of the damaged part Tutti Bambini guarantee your product against faulty manufacture for a period of 12 months from date of receipt of purchase. This does not affect your statutory rights...
-
Page 4: Parts List
Parts List Hardware List 1pc for replacement 1 pc 49 pc 28 pc 200x30mm 8x40mm 6.5x40mm 2pc for replacement 50 pc 8 pc M6x40mm 15x11.5mm 1 pc 1 pc 1 pc 700mm 4x16mm 1pc for replacement 23 pc 1 pc 10/6mm 3.5x16mm www.iltutto.com.au... - Page 5 Assembling into chest E x 28 PCS A x 48 PCS Assemble metal dowels A x 48. Assemble wooden dowels E x 28. www.iltutto.com.au...
- Page 6 Assembling into chest B x 16 PCS B x 8 PCS Assemble locking nuts 8 x B. Assemble locking nuts 16 x B. K x 8 PCS B x 10 PCS Assemble locking nuts 10 x B. Assemble foot using 8 x K bolts www.iltutto.com.au...
- Page 7 Assembling into chest D x 22 PC B x 10 PCS Assemble screw 22 x D. Assemble locking nuts 10 x B. With two people, tilt wardrobe gently to upright position B x 4 PCS Assemble 2 short top support bars to Assemble top frame to cabinet body long rails using 4 x B locking nuts www.iltutto.com.au...
- Page 8 Assembling into chest H x 1 PC 4x16mm I x 1 PC G x 4 PC G x 1 PC Attach handle 4 x G to drawers. 9 13 Fittings to attach the strap to the wall are not provid- ed and suitable fittings for the wall type should be used.
- Page 9 11. The changing unit must be fixed to the wall for safe use of the product and that fastenings used should be appropriate to the wall; 12. Any additional or replacement parts are obtained from the Tutti Bambini or its distributor. Product development dictates that components may occasionally differ from the ones shown in the diagrams of th ese instruction s.
